FRONT TURN SIGNAL LAMP
81510LAMP ASSY, FRONT TURN SIGNAL, RH
main81510-0K050supersedes 81510-0K052iGUN155,165..H..(GCC,VN);GUN155..6FC..(GEN,IDN,TH);GUN165..(H,S)..(IDN,LA,PH,TH);GGN155,GUN156,166,TGN156,166..(AGTP,EPTP,IDNP,MAP,PKNP,THP,VNP)..H; GUN155,165..H..TH; GUN156..PKN202208-202307
MLM BASIC PACKAGE; MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81510-0K060iGUN15#,16#..H..TH; GUN156..(AGTP,THP)..6FC..H..(BZAGT,GEN); GUN156..6F..BZAGT;GUN156,166..MA,PH,PKN;GUN156,165..(THP,VNP)..H..(GEN,VN); GUN156..TH202208-202307
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81510-0K062iGGN155,GUN156..H..LA; GUN156..6F..BZAGT; GUN156..6FC..H..BZAGT; GUN156..H..LA202308-202310
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM),LUMAX
81510BBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81510HBULB (FOR FRONT CLEARANCE LAMP)
81511BLENS & BODY, FRONT TURN SIGNAL LAMP, RH
main81511-0K040iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(IDNP,MAP)..(L,S)..(ARL,GCC,GEN,MA,VN)202208-202308
81517SOCKET, FRONT TURN SIGNAL LAMP
81518BSOCKET COVER, FRONT TURN SIGNAL LAMP
81520LAMP ASSY, FRONT TURN SIGNAL, LH
main81520-0K050supersedes 81520-0K052iGUN155,165..H..(GCC,VN);GUN155..6FC..(GEN,IDN,TH);GUN165..(H,S)..(IDN,LA,PH,TH);GGN155,GUN156,166,TGN156,166..(AGTP,EPTP,IDNP,MAP,PKNP,THP,VNP)..H; GUN155,165..H..TH; GUN156..PKN202208-202307
MLM BASIC PACKAGE; MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81520-0K060iGUN15#,16#..H..TH; GUN156..(AGTP,THP)..6FC..H..(BZAGT,GEN); GUN156..6F..BZAGT;GUN156,166..MA,PH,PKN;GUN156,165..(THP,VNP)..H..(GEN,VN); GUN156..TH202208-202307
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81520-0K062iGGN155,GUN156..H..LA; GUN156..6F..BZAGT; GUN156..6FC..H..BZAGT; GUN156..H..LA202308-202310
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT),LUMAX
81521BLENS & BODY, FRONT TURN SIGNAL LAMP, LH
81615FSOCKET, CLEARANCE LAMP
9016750063
main90167-50063

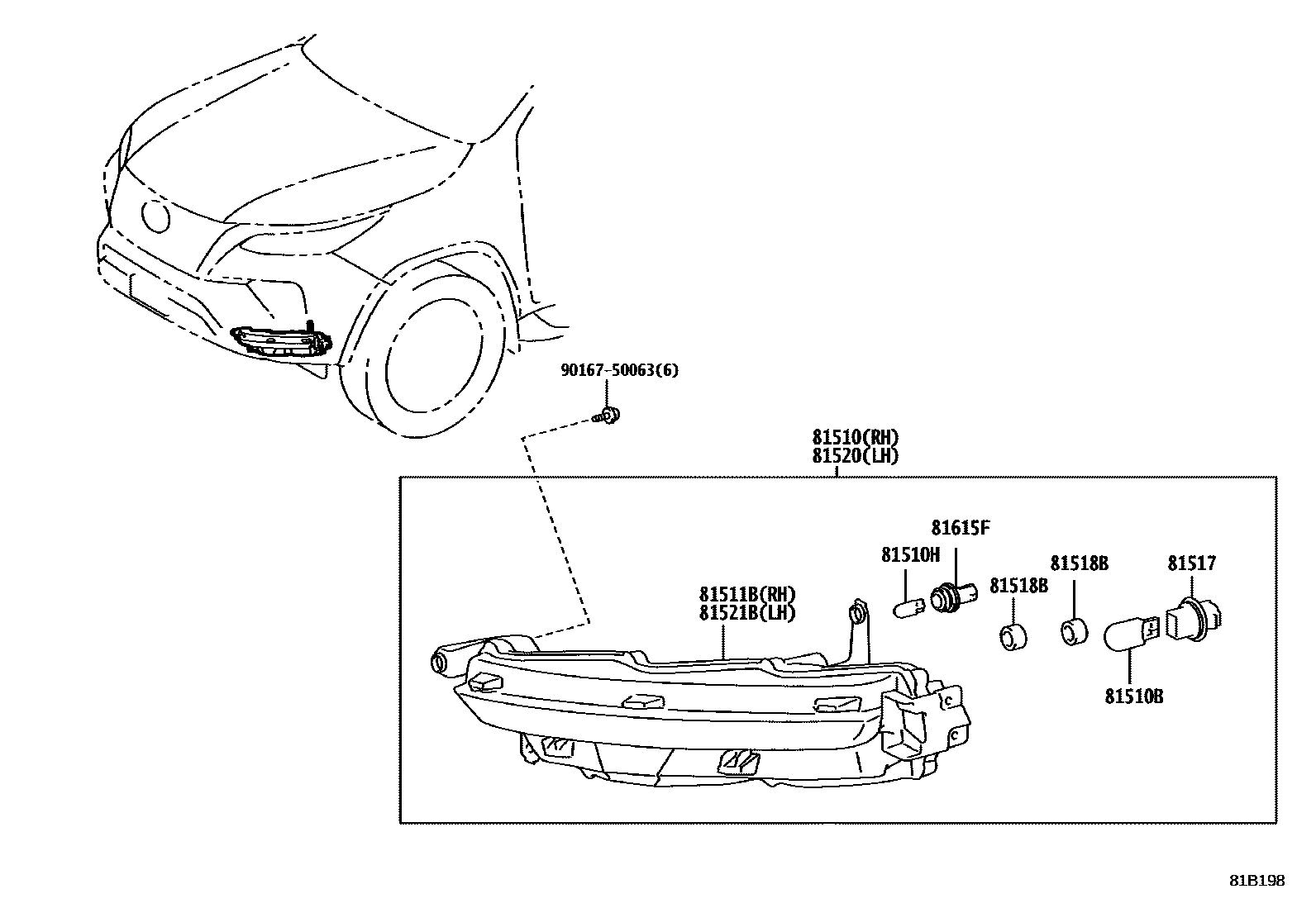

10 parts on this diagram · 2 diagrams in section
