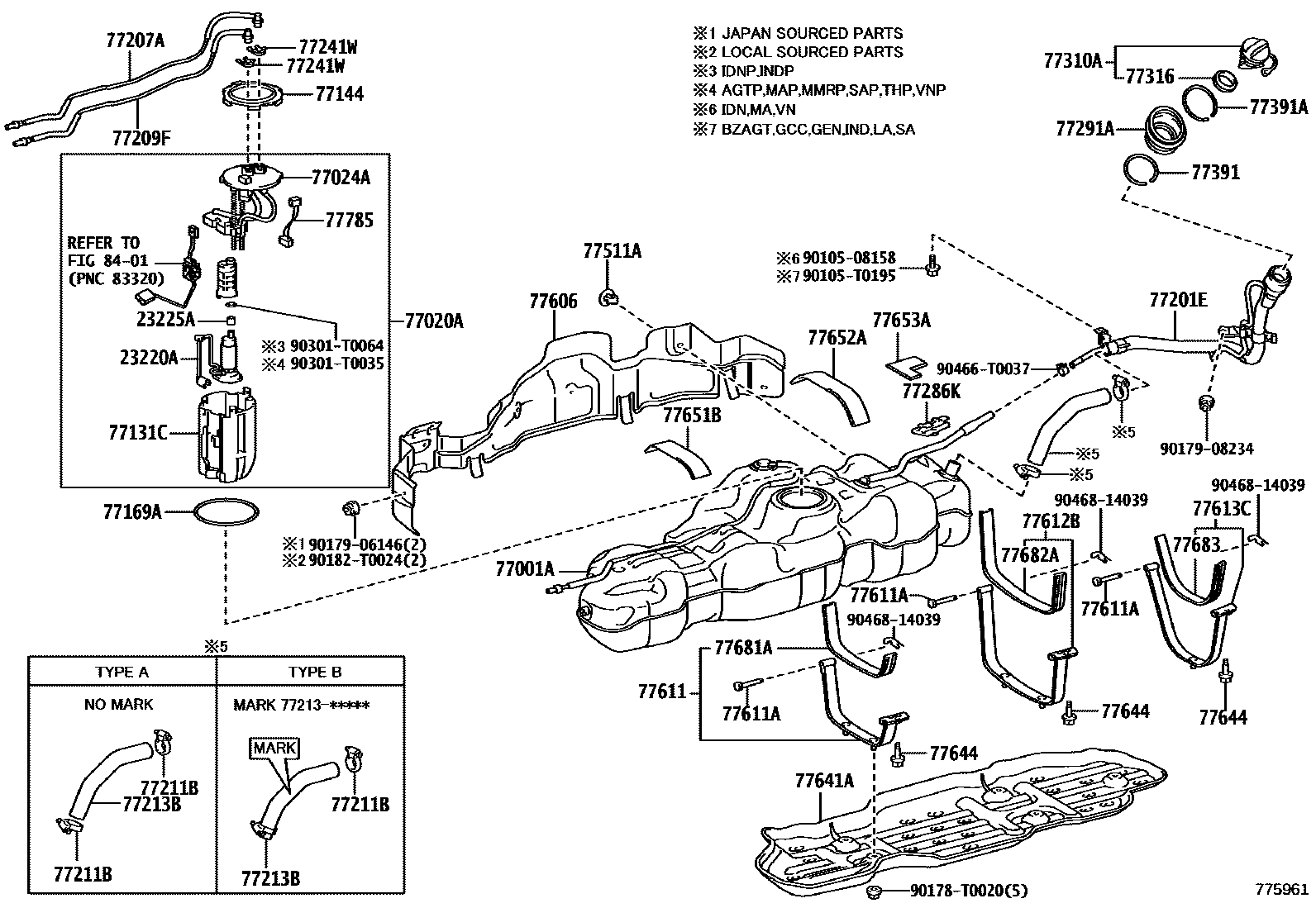

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE (EURO6) 0007 1FUEL TUBE 0008 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0C201i2TRFE..TGN156..MA202208-202308

main23220-0C211i2TRFE..TGN156,166..IDNP202209-202308

main23220-0P200i1GRFE..GGN155..EPT202208-202403

main23220-0P210i1GRFE..GGN155..IDNP202209-202308

23225ASPACER, FUEL PUMP

main23225-0V030i1GRFE,2TRFE..GGN155,TGN156,166..THP202208-202307

77001ATANK SUB-ASSY, FUEL

main77001-0K500iGGN155,TGN156,166..IDNP202209-202308

main77001-0K510iGGN155,TGN166..EPT202208-202403

main77001-0K520iGUN15#,16#..IDNP202209-202308

main77001-0K540iGUN15#,16#,LAN155..SA202301-202401

main77001-0K550iGGN155,TGN156,166..AGTP202211-202310

main77001-0K560iGUN15#,16#..THP202208-202307

main77001-0K580iGUN156,166..IND202210-202309

main77001-0K600iGUN156,16#..AGTP202211-202310

main77001-0K730iTGN156..SA202301-202401

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0K411iGGN155..IDNP202209-202308

main77020-0K421iTGN156,166..IDNP202209-202308

main77020-0K471iTGN156,166..AGTP202208-202310

main77020-0K481iGGN155..THP202208-202307

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K160iGUN15#..MA202208-202308

main77024-0K210iGGN155,TGN156,166..IDNP202209-202308

main77024-0K220iGGN155,TGN156,166..AGTP202208-202310

main77024-0K270iGUN15#,16#..IDNP202209-202308

main77024-0K280iGUN156,166..IND202210-202309

77131CSUB-TANK, FUEL, NO.1

main77131-0K120iGGN155,TGN156,166..IDNP202209-202308

main77131-0K140iGUN15#,16#..IDNP202209-202308

main77131-0K150iGUN156,166..IND202210-202309

main77131-0K190iTGN156..MA202208-202308

main77131-0K200iGUN156..PKNP202208

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202308

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iTGN156,166..PKN202208

main77169-0K040iGUN156..PKNP202208

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-KK160iGGN155,TGN156,166..EPT,GCC,GEN,PKN,SA202208-202502

main77201-KK170iGUN15#,16#,LAN155..ARL,GCC,GEN,IND,KEN,PKN,SA202208-202502

main77201-KK180iTGN156,166..IDN,MA,VN202209-202308

main77201-KK190iGUN15#,16#..IDN,MA,PH,TH,VN202208

main77201-KK280iGUN156,16#..AGTP202211-202310

main77201-KK290iTGN166..IND202210-202309

main77201-KK330iGGN155,TGN156,166..AGTP202211-202310

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K080iGUN156,166..IND202210-202309

main77204-0K090iTGN156,166..PKN202208

main77204-0K110iGUN15#,16#,LAN155..SA202208-202401

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K140iGUN156,166..IND202210-202309

main77209-0K150iTGN166..INDP,VNP202208-202309

main77209-0K170iGUN15#,16#,LAN155..SA202208-202401

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iGGN155,GUN15#,TGN166..EPT,KEN202208-202403

TYPE B:REFER ILLUST.

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-KK020iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

TYPE A:REFER ILLUST.

main77213-KK051iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

TYPE B:REFER ILLUST.

77241WCLIP, TUBE JOINT

main77241-0K010×2iGUN156..PKNP; TGN156,166..PKN202208

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K180iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0K110iGUN15#,16#,LAN155,TGN156..SA202208-202401

main77291-0K120iGUN156,165,TGN166..VNP202209-202309

main77291-0K130iGUN156,166,TGN166..IND202210-202309

main77291-0K230iGUN156,TGN156,166..PKNP202302

77310ACAP ASSY, FUEL TANK

main77300-0K010iGGN155,TGN156,166..THP202208-202307

main77300-0K020iGUN15#,16#..IDNP,MAP202208-202308

77316GASKET, FUEL TANK CAP

main77316-0K020iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77391RING, FUEL INLET BOX

main77391-0K010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77391ARING, FUEL INLET BOX

main77391-0K110iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77511ABRACKET, FUEL TANK

main77512-0K010×4iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main77644-0K010×4iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0K070iTGN166..IND202209-202309

main77606-0K080iGUN156,TGN156,166..PKNP202208

77611BAND, FUEL TANK

main77601-KK060iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×3iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77612BBAND, FUEL TANK, NO.2

main77602-KK040iGUN156,TGN156,166..PKNP202208

77613CBAND, FUEL TANK, NO.3

main77603-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77641APROTECTOR, FUEL TANK, NO.1

main77641-KK020iGUN156,TGN156,166..PKNP202208

main77641-KK040iGUN156,166,TGN166..IND202210-202309

77644BOLT, FUEL TANK

main77644-35030×3iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202308

77651BCUSHION, FUEL TANK

main77651-0K050iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main77651-0K060iGUN156,165,TGN166..VNP202208-202309

main77651-0K120iGUN156,166..IND202210-202309

77652ACUSHION, FUEL TANK, NO.2

main77652-0K060iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main77652-0K070iGUN15#,TGN156..MA202208-202308

main77652-0K150iGUN156,166..IND202210-202309

77653ACUSHION, FUEL TANK, NO.3

main77653-0K110iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main77653-0K120iGUN15#,TGN156..MA202208-202308

main77653-0K150iGUN156,166..IND202210-202309

77681ASEAT, FUEL TANK BAND

main77681-KK030iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202308

77682ASEAT, FUEL TANK BAND, NO.2

main77682-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

77683SEAT, FUEL TANK BAND, NO.3

main77683-KK020iGUN156,TGN156,166..PKNP202208

77785HARNESS, FUEL PUMP

main77785-0K070iGGN155,TGN156,166..THP202208-202307

main77785-0K090iGGN155,TGN156,166..IDNP202209-202308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

90105T0195

main90105-T0195

90178T0020

main90178-T0020

9017906146

main90179-06146

9017908234

main90179-08234

90182T0024

main90182-T0024

90301T0035

main90301-T0035

90301T0064

main90301-T0064

90466T0037

main90466-T0037

9046814039

main90468-14039

46 parts on this diagram · 8 diagrams in section
