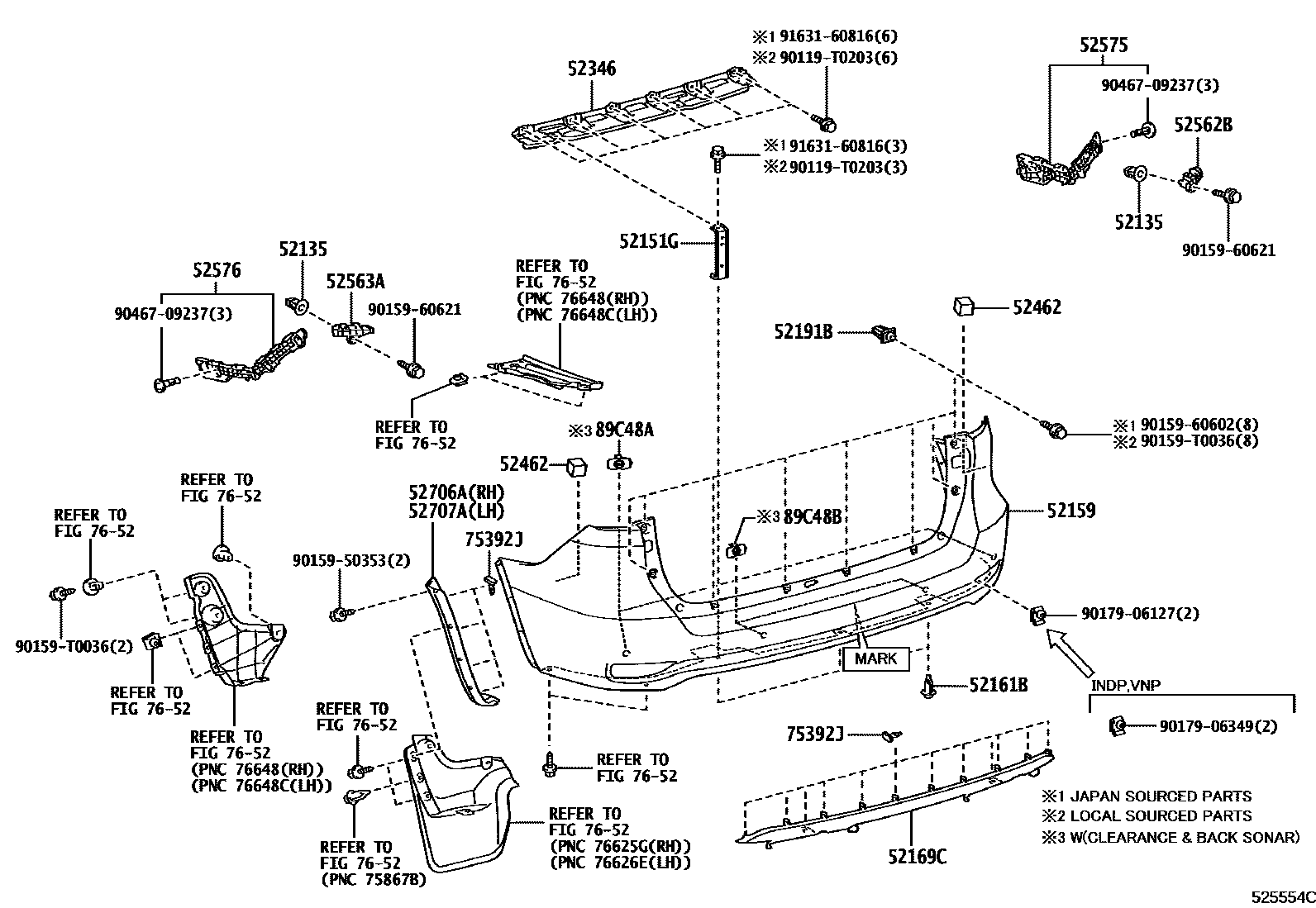

REAR BUMPER & BUMPER STAY
52135GROMMET, REAR BUMPER STAY
(J)
CLEARANCE & BACK SONAR-WITHOUT
MLM BASIC PACKAGE
52151GEXTENSION, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
main52159-0K951iGUN155..LHD..GEN;GUN165..LHD..IDNP..(GCC,GEN);GUN155,TGN156,166..IDNP..(5F,6FC)..L; GUN156..IDNP..GCC;GGN155,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202209-202308
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.
PAINT REQ.
main52159-0K972supersedes 52159-0K949iGUN165..S..TH;GUN156..THP..GCC; GUN165..THP..(H,L);GUN156..THP..(ARL,GEN,TH);GGN155,GUN155,166,TGN156,166..THP202208-202307
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.,MARK=52159-0K690
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
main52159-0K970iGUN15#,165,TGN156..SA; GUN15#,TGN156..LHD..SA; GUN15#..RHD..SA; GUN166..SA202301-202401
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,GR SPORT & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52159-YP908iGUN156,166..LHD..IDNP..(GEN,PH); GUN156..IDNP..(PH,VN); GUN156..LHD..IDNP..GEN202209-202308
PAINT REQ.,GR SPORT; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM PACKAGE
PAINT REQ.,GR SPORT & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY
PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT
main52159-YP915iGUN156..6F..BZAGT; GUN156..H..LA; GUN165..L..LA;GUN156..S..BZAGT;GGN155,GUN156,166..LA202211-202310
PAINT REQ.,GR SPORT; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM PACKAGE
main52159-YP916iGUN15#..LHD..6FC..SA; GUN15#..RHD..6FC..SA; GUN155,165..SA;GUN156..6FC..SA; GUN156..RHD..SA202301-202401
PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE
main52159-YP917iGUN15#..LHD..6FC..SA; GUN15#..RHD..6FC..SA; GUN155,165..SA;GUN156..6FC..SA; GUN156..RHD..SA; GUN166..SA202301-202401
PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
52161BPIECE, REAR BUMPER
MLM PACKAGE
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,MLM BASIC PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE & ACCESSORY; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE
main52169-YP070iGUN15#..LHD..6FC..SA; GUN15#..RHD..6FC..SA; GUN155,165..SA;GUN156..6FC..SA; GUN156,166..RHD..SA; GUN156..RHD..SA202301-202401
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,GR SPORT
52191BGROMMET, REAR BUMPER STAY
52346FRAME, BACK STEP, REAR
52462PAD, REAR BUMPER, RH
NO PAINT REQ.; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
MLM PACKAGE; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
MLM PACKAGE; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY
75392JRETAINER, OUTSIDE MOULDING
main75392-0K010×20iGGN155,GUN15#,16#,TGN156,166..THP; GUN15#,16#..H..TH; GUN155,165..TH; GUN156..TH; GUN156..THP..GEN; GUN165..S..TH202208-202307
(L); GR SPORT & ACCESSORY,(L); MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,(L); MLM BASIC PACKAGE,(L); MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT,(L); MLM PACKAGE & ACCESSORY,(L); MLM PACKAGE&REAR FOG LAMP-WITHOUT,(L); MLM PACKAGE,(L)
MLM PACKAGE
(J); MLM BASIC PACKAGE,(J)
7652SPOILER & SIDE MUDGUARD
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-0K010×2iGUN165..S..TH;GUN156..THP..GCC; GUN165..THP..(H,L);GUN156..THP..(ARL,GEN,TH);GGN155,GUN155,166,TGN156,166..THP202208-202307
CLEARANCE & BACK SONAR-WITH
main89348-0K050×2iGUN15#,16#..H..TH; GUN155,165..H..TH; GUN156..TH; GUN156..THP..GEN; GUN165..S..TH202208-202307
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-0K050×2iGUN15#,16#..H..TH; GUN155,165..H..TH; GUN156..TH; GUN156..THP..GEN; GUN165..S..TH202208-202307
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY
90119T0203
main90119-T0203
9015950353
main90159-50353
9015960602
main90159-60602
9015960621
main90159-60621
90159T0036
main90159-T0036
9017906127
main90179-06127
9017906349
main90179-06349
9046709237
main90467-09237
9163160816
main91631-60816
27 parts on this diagram · 2 diagrams in section
