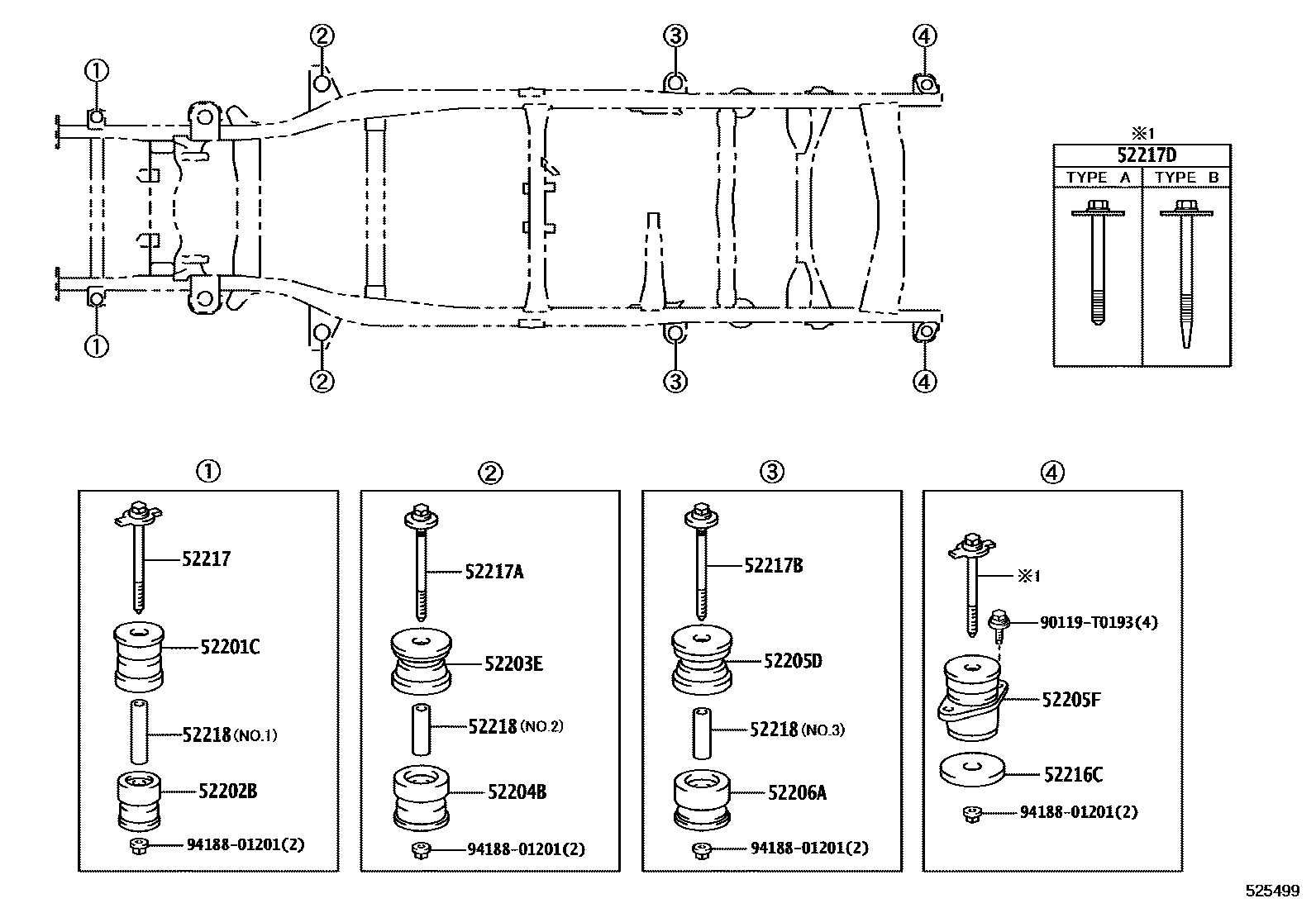

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K060×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52201-0K070×2iGUN156,166,TGN166..IND202210-202309

main52201-0K100×2iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K060×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52202-0K070×2iGUN156,166,TGN166..IND202210-202309

main52202-0K100×2iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K080×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52203-0K090×2iGUN156,166,TGN166..IND202210-202309

main52203-0K130×2iGUN156,165,TGN166..VNP202208-202309

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K080×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52204-0K090×2iGUN156,166,TGN166..IND202210-202309

main52204-0K130×2iGUN156,165,TGN166..VNP202208-202309

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K090×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52205-0K100×2iGUN156,166,TGN166..IND202210-202309

main52205-0K180×2iGUN156,165,TGN166..VNP202208-202309

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0K070×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52207-0K080×2iGUN156,166,TGN166..IND202210-202309

main52207-0K090×2iGUN15#,TGN156..MA202208-202308

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K040×2iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main52206-0K050×2iGUN156,166,TGN166..IND202210-202309

main52206-0K140×2iGUN156,165,TGN166..VNP202208-202309

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-KK010×2iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

52217BOLT, BODY MOUNTING

main52217-0K010×2iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

52217DBOLT, BODY MOUNTING

main52217-0K050iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

TYPE A:REFER ILLUST.

main52217-0K060iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

TYPE B:REFER ILLUST.

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202308

NO.1

main52219-0K010×2iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

NO.2

main52219-KK010×2iGUN156,16#,TGN166..INDP,VNP202208-202309

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
