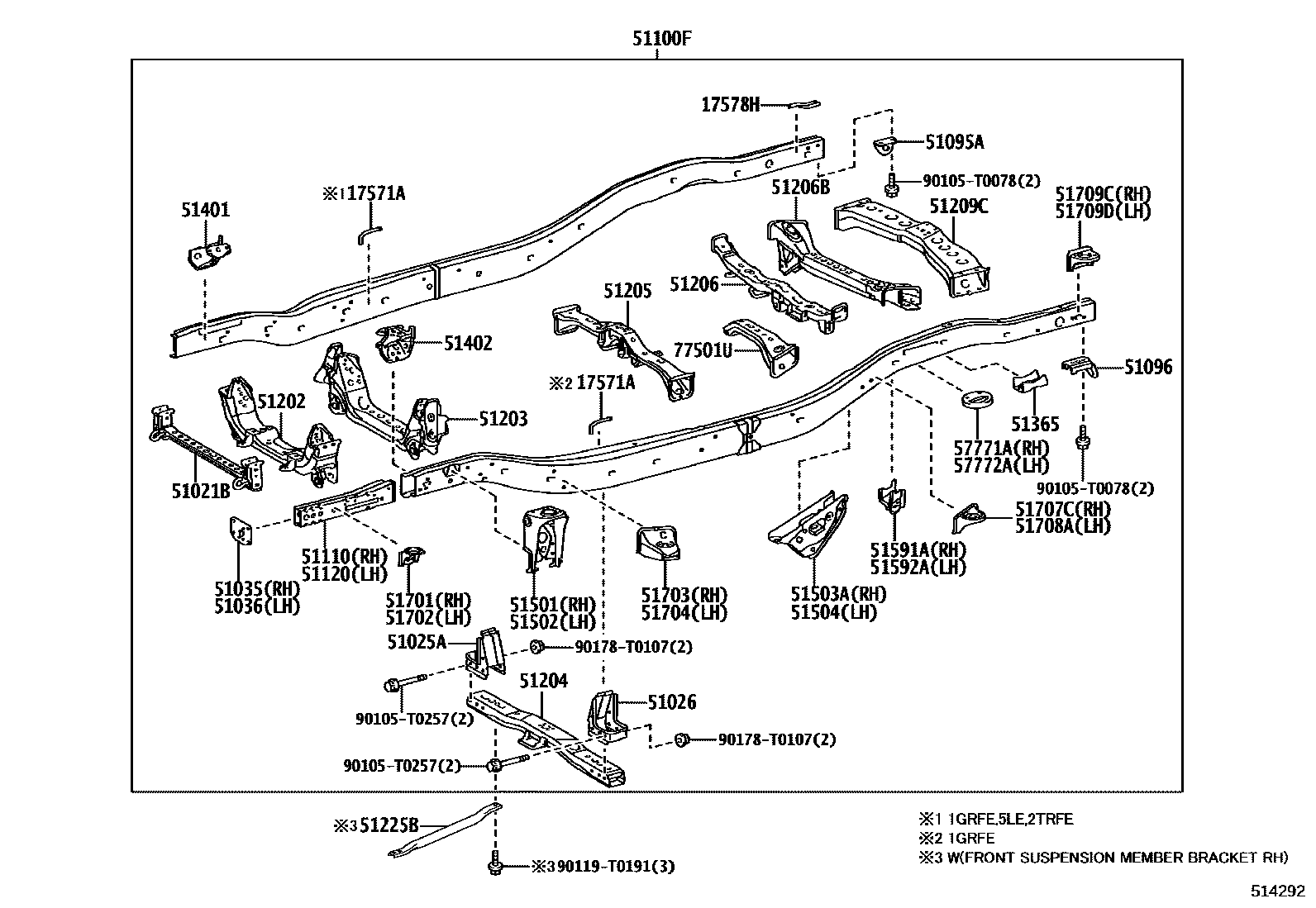

FRAME

0001 1 0002 1PROPELLER SHAFT GUARD 0003 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i1GRFE..GGN155..IDNP; 2TRFE..TGN156,166..IDNP202208-202308

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i2TRFE..TGN166..THP;1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

main51021-KK020iGGN155,GUN156,16#,TGN156,166..AGTP202209-202310

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGUN156,TGN156..PKN202309

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGGN155,GUN15#,16#,TGN156,166..IDNP202208-202308

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0K010iGUN156,16#,TGN166..INDP,VNP202208-202309

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0K010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51100FFRAME SUB-ASSY

main51001-KK492iTGN156..MAP,THP202208-202301

main51001-KK493iTGN156..MAP,PKNP,THP202302-202307

main51001-KK502iGGN155..THP202208-202301

main51001-KK503iGGN155..EPTP,THP202302-202307

main51001-KK512iGUN15#..MAP,THP202208-202301

main51001-KK513iGUN15#..MAP,PKNP,THP202302-202307

main51001-KK522iLAN155202301-202401

main51001-KK530iTGN166..VNP202209-202309

main51001-KK570iGUN165..VNP..6FC202209-202309

main51001-KK612iTGN156..SA202301-202401

main51001-KK632iGUN15#..KEN202301-202403

main51001-KK652iGUN165..6F..SA202301-202401

main51001-KK662iGUN16#..6FC..SA202301-202401

main51001-KK873iTGN166..THP202208-202301

main51001-KK874iTGN166..EPTP,PKNP,THP202302-202306

main51001-KK875iTGN166..EPT202307-202403

main51001-KKA03iGUN16#..THP202208-202301

main51001-KKA04iGUN16#..THP202302-202307

main51001-KKB10iTGN156..IDNP202209-202308

main51001-KKB20iGGN155..IDNP202209-202308

main51001-KKB30iGUN156..VNP202209-202309

main51001-KKB50iGUN165..IDNP..6F202209-202308

main51001-KKC60iGUN166..6FC..IND202210-202309

main51001-KKC72iTGN156..AGTP202211-202310

main51001-KKC92iGGN155..LA202211-202310

main51001-KKD00iGUN156..IND202210-202309

main51001-KKD20iTGN166..6FC..IND202210-202309

main51001-KKD30iTGN166..5F..IND202210-202309

main51001-KKD40iGUN166..6F..IND202210-202309

main51001-KKG00iGUN156..AGTP202211-202310

main51001-KKG10iGUN16#..6FC..LA202211-202310

main51001-KKG20iTGN166..6FC..LA202211-202310

main51001-KKG30iTGN166..S..LA202211-202310

main51001-KKG40iGUN166..6F..LA202211-202310

main51001-KKG50iGUN156..IDNP..ARL202209-202308

main51001-KKK20iGUN156..PKNP202307

main51001-KKL10iTGN156..PKN202307

main51001-KKL20iGGN155..EPT202307-202403

51110EXTENSION ASSY, SIDE RAIL, RH

main5103A-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..AGTP,IDNP,INDP,KENP,SAP,VNP202209-202403

main51110-KK907iGGN155,GUN15#,16#,TGN156,166..EPTP,MAP,PKNP,THP202208-202307

51120EXTENSION ASSY, SIDE RAIL, LH

main5103B-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..AGTP,IDNP,INDP,KENP,SAP,VNP202209-202403

main51122-KK907iGGN155,GUN15#,16#,TGN156,166..EPTP,MAP,PKNP,THP202208-202307

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main51201-KK050iTGN166..PKN;GUN156..PKNP..TH202208

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN16#..6FC..SA202209-202401

main51203-KK030iGUN165..IDNP..6F202209-202308

main51203-KK040iGUN156..VNP202208-202309

main51203-KK050iGGN155,TGN156..EPTP,MAP,PKNP,THP202208-202307

main51203-KK120iGUN166..6FC..IND202210-202309

main51203-KK130iTGN166..S..LA202210-202310

main51203-KK140iGUN166..6F..LA202210-202310

main51203-KK150iGUN156..AGTP202210-202310

main51203-KK190iTGN166..6FC..IND202208-202309

main51203-KK200iGGN155,TGN156..AGTP202211-202310

main51203-KK210iTGN166..EPT202307-202403

main51203-KK250iGUN156..PKNP202309

main51203-KK260iGGN155..EPT202309-202403

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK060iGGN155,GUN156,TGN156..AGTP202208-202310

main51204-KK080iGUN16#..SA202208-202401

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK050iGUN15#,TGN166..EPT,KEN202208-202403

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP202208-202308

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-KK010iGUN156..IND202210-202309

51365STOPPER, REAR BUMPER

main57081-KK010×2iGGN155..EPT202309-202403

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN155202301-202401

main51401-KK020iTGN156..SA202208-202401

main51401-KK030iGGN155..EPTP,THP202208-202307

main51401-KK040iGUN15#,16#..MAP,PKNP,THP202208-202307

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN155202301-202401

main51402-KK020iTGN166..EPT202208-202403

main51402-KK030iGGN155..EPTP,THP202208-202307

main51402-KK040iGUN156..PKN202309

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK020iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK020iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-KK010iTGN166..PKN;GUN156..PKNP..TH202208

51591ASUPPORT, STABILIZER, RH

main51508-KK010iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

51592ASUPPORT, STABILIZER, LH

main51509-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

57771APLATE, REAR SPRING, RH

main57771-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

57772APLATE, REAR SPRING, LH

main57771-KK010iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-KK040iTGN166..THP;GGN155,GUN15#,16#,TGN156..EPTP,MAP,PKNP,THP202208-202307

90105T0078

main90105-T0078

90105T0257

main90105-T0257

90119T0191

main90119-T0191

90178T0107

main90178-T0107
