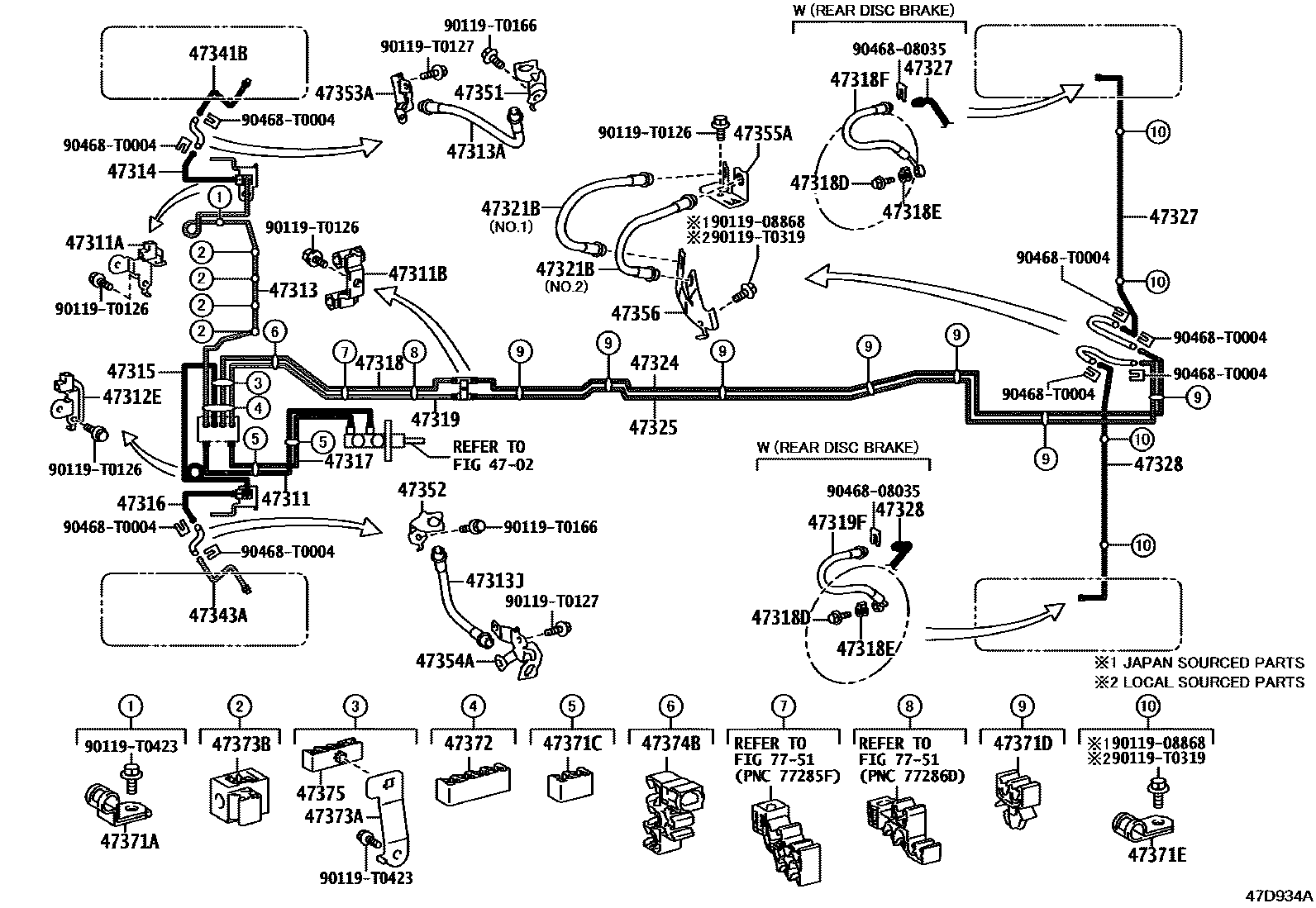

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020iGUN15#,16#..RHD..THP202208-202307

main47311-KK050iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202208-202308

main47311-KK060iLAN155202301-202401

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10307iGUN156,TGN156,166..PKNP202209

main90412-T0009iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGGN155,GUN156,16#,TGN156,166..AGTP202209-202310

main90412-T0007iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10308iGUN156,TGN156,166..PKNP202209

main90412-T0010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47313TUBE, FRONT BRAKE, NO.3

main47313-KK030iGUN156,TGN156,166..PKNP202208

main47313-KK040iLAN155202301-202401

main47313-KK060iGUN15#,TGN156..LHD..SA202208-202401

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2098iGUN156,TGN156,166..PKNP202208

main90947-T2122iGUN156,166,TGN166..IND202210-202309

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2098iGUN15#,16#,LAN155,TGN156..SA202208-202401

main90947-T2122iGUN156,166,TGN166..IND202210-202309

47314TUBE, FRONT BRAKE, NO.4

main47314-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202308

47315TUBE, FRONT BRAKE, NO.5

main47315-KK030iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202208-202308

main47315-KK040iLAN155202301-202401

main47315-KK060iGGN155,TGN166..EPT202208-202403

47316TUBE, FRONT BRAKE, NO.6

main47316-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47317TUBE, FRONT BRAKE, NO.7

main47321-KK020iGUN15#,16#..RHD..THP202208-202307

main47321-KK030iLAN155202301-202401

main47321-KK040iGUN15#,TGN156..LHD..SA202208-202401

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010iGUN15#,16#..RHD..THP202208-202307

main47322-KK040iGUN15#,TGN156..LHD..SA202208-202401

main47322-KK050iLAN155202301-202401

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGUN156,16#,TGN166..INDP,VNP202208-202309

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGUN15#,16#,LAN155,TGN156..SA202208-202401

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2115iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

main90947-T2125iGUN156,166,TGN166..IND202210-202309

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030iGUN15#,16#..RHD..SA202208-202401

main47323-KK080iGGN155,TGN166..EPT202208-202403

main47323-KK090iLAN155202301-202401

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2116iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

main90947-T2126iGUN156,166,TGN166..IND202210-202309

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2099iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

NO.1:REFER ILLUST.

main90947-T2103iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

NO.2:REFER ILLUST.

main90947-T2123iGUN156,166,TGN166..IND202210-202309

NO.1:REFER ILLUST.

main90947-T2124iGUN156,166,TGN166..IND202210-202309

NO.2:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK030iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47325TUBE, REAR BRAKE, NO.5

main47325-KK050iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

47327TUBE, REAR BRAKE, NO.7

main47327-KK190iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

main47327-KK230iTGN166..IDNP..(IDN,VN)202209-202308

47328TUBE, REAR BRAKE, NO.8

main47328-KK190iGGN155,GUN15#,TGN166..EPT,KEN202208-202403

main47328-KK230iTGN166..IDNP..(IDN,VN)202209-202308

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K070iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main47341-0K080iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

main47341-0K090iGUN15#..KEN202301-202403

main47341-0K100iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main47341-0K110iGUN156,166,TGN166..IND202210-202309

main47341-0K130iGUN15#,TGN156..MA202209-202308

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K070iGGN155,GUN156,16#,TGN156,166..AGTP202211-202310

main47343-0K080iGGN155,TGN166..EPT202208-202403

main47343-0K090iGUN15#,16#,LAN155,TGN156..SA202301-202401

main47343-0K100iGGN155,GUN15#,16#,TGN156,166..IDNP202209-202308

main47343-0K110iGUN156,166,TGN166..IND202210-202309

main47343-0K130iGUN15#,TGN156..MA202209-202308

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-KK010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-KK010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-KK010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-KK010iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK030iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK020iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP; GUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202208-202308

47371CCLAMP, BRAKE TUBE, NO.7

main90949-T1033×2iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iGGN155,GUN15#,16#,TGN156,166..THP202208-202307

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGUN15#,16#..RHD..THP202208-202307

main90949-T1028iGUN15#,TGN156..LHD..SA202208-202401

main90949-T1029iLAN155202301-202401

47373ABRACKET, TUBE CLAMP

main90949-T2003iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202208-202308

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iGUN15#,16#..RHD..THP202208-202307

main90949-T1030×4iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202208-202308

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGUN156,TGN156,166..PKNP202208

main90949-T1032iGGN155,GUN156,16#,TGN156,166..AGTP202208-202310

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028iGUN156,166,TGN166..IND202208-202309

main90949-T1031iGGN155,TGN166..EPT202208-202403

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0319

main90119-T0319

90119T0423

main90119-T0423

9046808035

main90468-08035

90468T0004

main90468-T0004

49 parts on this diagram · 5 diagrams in section
