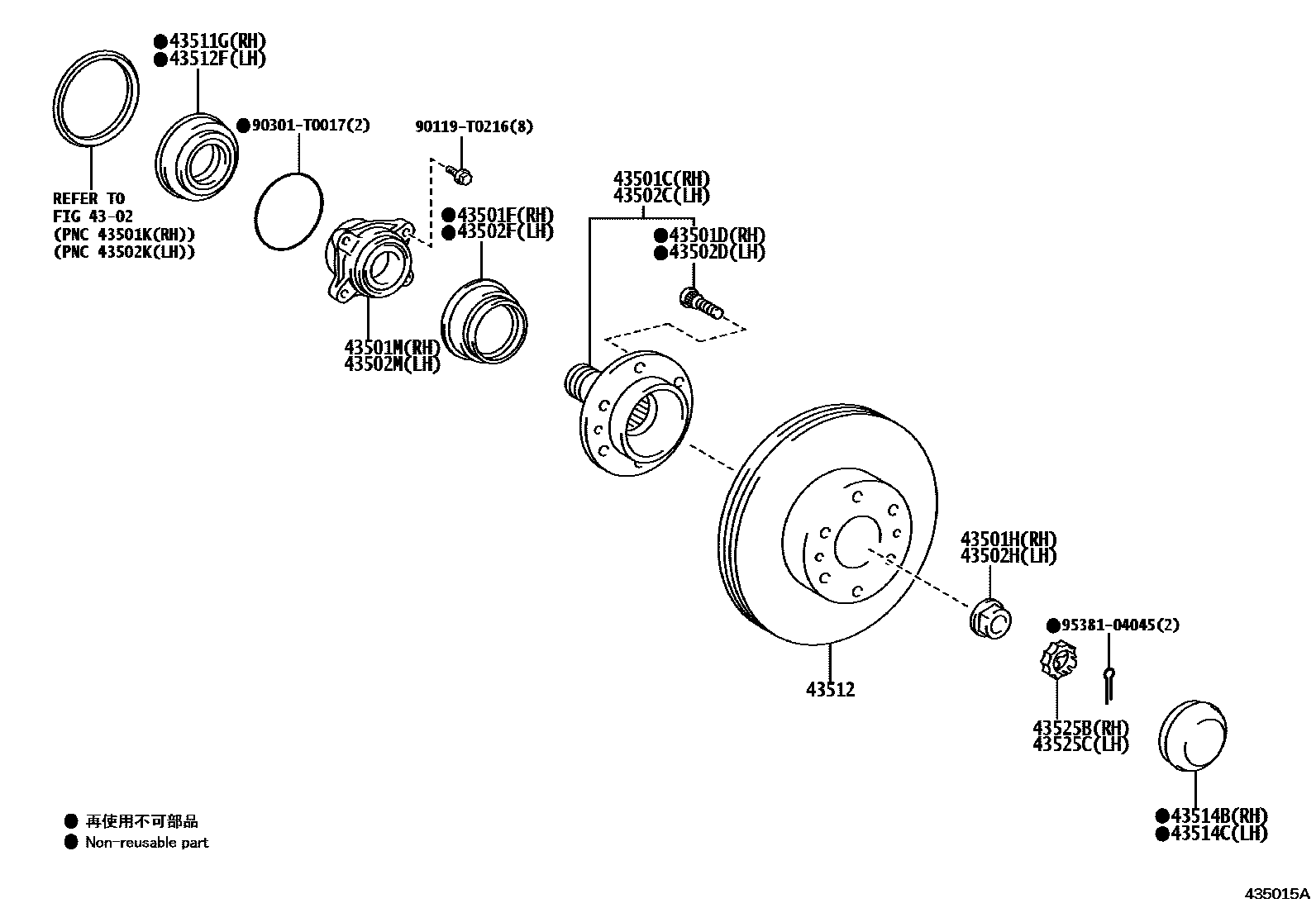

FRONT AXLE HUB

0001 1 0002 1

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010iGUN156..THP..TH;GGN155,GUN155,LAN155,TGN156;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208-202412

main43502-KK020iGUN16#,TGN166202208-202412

main43502-KK050iGUN156,TGN156..PKN202412

main43502-KK060iTGN166202412

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02052×6iGUN156,TGN156,166..PKN202412

main90942-02081×6iGUN156..THP..TH;GGN155,GUN155,16#,LAN155,TGN156,166;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208-202412

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iGUN156..THP..TH;GGN155,GUN155,16#,LAN155,TGN156,166;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113iGGN155,GUN15#,TGN156..THP202208-202307

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-F0002iGUN15#,16#,LAN155,TGN156..KEN,SA202301-202403

main90366-T0061iGUN156..THP..TH;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,LA,MA,PH,PKN,VN;GGN155,GUN155,16#,TGN156,166..AGTP,EPTP,IDNP,INDP,MAP,PKNP,THP,VNP202208

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010iGUN156..THP..TH;GGN155,GUN155,LAN155,TGN156;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208-202412

main43502-KK020iGUN16#,TGN166202208-202412

main43502-KK050iGUN156,TGN156..PKN202412

main43502-KK060iTGN166202412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02052×6iGUN156,TGN156,166..PKN202412

main90942-02081×6iGUN156..THP..TH;GGN155,GUN155,16#,LAN155,TGN156,166;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208-202412

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGUN156..THP..TH;GGN155,GUN155,16#,LAN155,TGN156,166;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113iGGN155,GUN15#,TGN156..IDNP,MAP202208-202308

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-F0002iGUN15#,16#,LAN155,TGN156..KEN,SA202301-202403

main90366-T0061iGUN156..THP..TH;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,LA,MA,PH,PKN,VN;GGN155,GUN155,16#,TGN156,166..AGTP,EPTP,IDNP,INDP,MAP,PKNP,THP,VNP202208

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGUN156..THP..TH;GGN155,GUN155,LAN155,TGN156;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208

43512DISC, FRONT

main43512-0K210×2iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202308

main43512-0K220×2iGGN155,GUN156,16#,TGN156,166..AGTP202212-202310

main43512-0K250×2iGUN15#..KEN202301-202403

main43512-0K260×2iGUN156,166,TGN166..IND202210-202309

main43512-0K320×2iGGN155,GUN156,16#,TGN156,166..AGTP202211-202212

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iGUN156..THP..TH;GGN155,GUN155,LAN155,TGN156;GUN156..ARL,BZAGT,GCC,GEN,IDN,IND,KEN,LA,MA,PH,PKN,SA,VN202208

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iGUN15#..KEN202208-202403

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGUN15#..KEN202208-202403

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-71010iGGN155,GUN15#,TGN156..THP202208-202307

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-71010iGGN155,GUN15#,TGN156..THP202208-202307

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045

21 parts on this diagram · 2 diagrams in section
