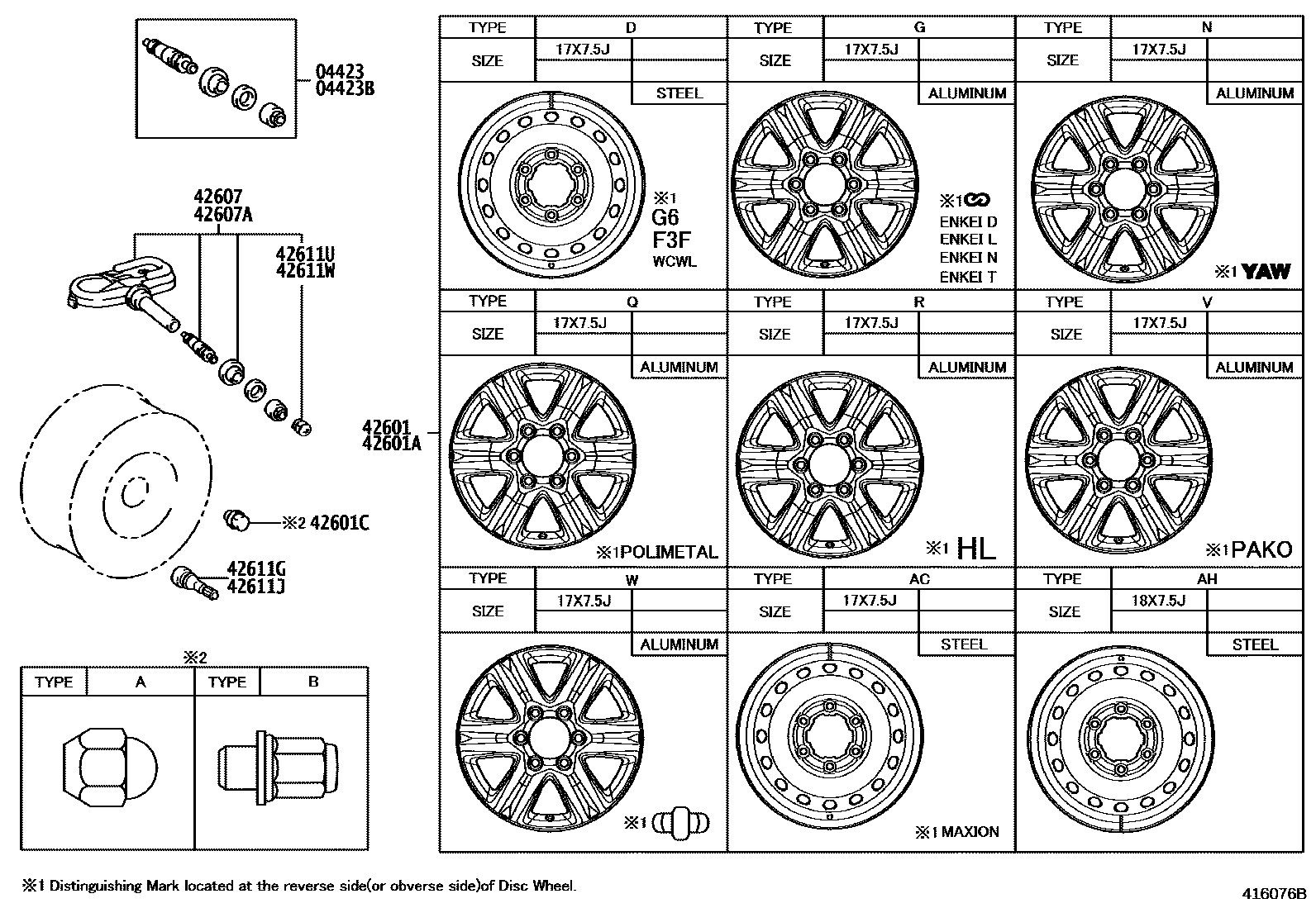

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
main42611-0KK82×4supersedes 42611-0KG60iGUN156..L..BZAGT; GUN156..S..BZAGT;GUN156,165..L..LA;GUN166,TGN156,166..AGTP202211-202310
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE Q:REFER ILLUST.; 17X7.5J, #,TYPE Q:REFER ILLUST.
main42611-0KL00×4iGUN156..LHD..IDNP..GEN;GUN155,TGN156,166..IDNP..L..GCC; TGN156..L..GEN;GUN156,165..IDNP..(L,S);GGN155,GUN155,TGN156,166..IDNP..S202209-202308
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE N:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPED:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL CAP-WITH(FULL CAP),TYPE D:REFERILLUST.; 17X7.5J, #,TYPE D:REFER ILLUST.
main42611-0KP40×4iGUN156..LHD..IDNP..GEN;GUN155,TGN156,166..IDNP..L..GCC; TGN156..L..GEN;GUN156,165..IDNP..(L,S);GGN155,GUN155,TGN156,166..IDNP..S202209-202308
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE V:REFER ILLUST.; 17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KP50×4iGUN156..LHD..IDNP..GEN;GUN155,TGN156,166..IDNP..L..GCC; TGN156..L..GEN;GUN156,165..IDNP..(L,S);GGN155,GUN155,TGN156,166..IDNP..S202209-202308
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE G:REFER ILLUST.; 17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
main42611-0KS01×4iGUN156..L..BZAGT; GUN156..S..BZAGT;GUN156,165..L..LA;GUN166,TGN156,166..AGTP202211-202310
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE R:REFER ILLUST.; 17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,T/P AU:REFER ILLUST.
18X7.5J, #,T/P AP:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AP:REFER ILLUST.
18X7.5J, #,T/P AK:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AK:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,T/P AK:REFER ILLUST.
main4261A-0K030×4iGGN155..IDNP..H..GCC;GUN15#,16#,TGN156,166..IDNP..H; GUN165..S..PH;TGN166..IDNP..VN202209-202308
18X7.5J,#,T/P AL:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AL:REFER ILLUST.
18X7.5J,#,T/P AM:REFER ILLUST.
18X7.5J,#,T/P AZ:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
main42611-YP330×4iGUN15#..6FC..S..SA; GUN155,165..L..SA; GUN156..RHD..6FC..SA; GUN166..SA;GUN156..RHD..6F..SA202301-202401
18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUNDTIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUNDTIRE(FOR STEEL WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
main42611-YP340×4supersedes 42611-0KG60iGUN156,16#..(L,S)..LA; GUN156..6F..BZAGT; GUN156..6FC..H..BZAGT; GUN156..L..BZAGT; GUN156..S..BZAGT;GGN155,GUN156..H..LA202211-202310
18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,T/P AS:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT),T/P BC:REFERILLUST.
18X7.5J,#,GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&SPARE TIRE-GROUND TIRE,*ALU(18 INCH),FOR GR SPORT,T/P AS:REFER ILLUST.
18X7.5J,#,T/P AT:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AT:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
main42611-0KL00iGUN156..LHD..IDNP..GEN;GUN155,TGN156,166..IDNP..L..GCC; GUN165..IDNP..(L,S);GGN155,GUN155,TGN156,166..IDNP..S202209-202308
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KM10iGUN155,TGN156..THP..S;GGN155,GUN165,TGN166..THP..(L,S)..GCC; GUN156..H..ARL;GUN155,TGN156..THP..L202208-202307
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE N:REFER ILLUST.; 17X7.5J, #,TYPE N:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
main42611-0KP40iGUN156..LHD..IDNP..GEN;GUN155,TGN156,166..IDNP..L..GCC; GUN165..IDNP..(L,S);GGN155,GUN155,TGN156,166..IDNP..S202209-202308
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE V:REFER ILLUST.; 17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KP50iGUN156..LHD..IDNP..GEN;GUN155,TGN156,166..IDNP..L..GCC; GUN165..IDNP..(L,S);GGN155,GUN155,TGN156,166..IDNP..S202209-202308
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE G:REFER ILLUST.; 17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,T/P AU:REFER ILLUST.
18X7.5J, #,T/P AP:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AP:REFER ILLUST.
18X7.5J, #,T/P AK:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AK:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,T/P AK:REFER ILLUST.
main4261A-0K030iGGN155..IDNP..H..GCC;GUN15#,16#,TGN156,166..IDNP..H; GUN165..S..PH;TGN166..IDNP..VN202209-202308
18X7.5J,#,T/P AL:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AL:REFER ILLUST.
18X7.5J,#,T/P AZ:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J, #,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AH:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,T/P AH:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AH:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE Q:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE D:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE D:REFER ILLUST.
18X7.5J, #,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),T/P AH:REFER ILLUST.
18X7.5J, #,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),T/P AH:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL CAP-WITH(FULL CAP),T/P AC:REFERILLUST.
18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
main42611-YP330iGUN15#..6FC..S..SA; GUN155,165..L..SA; GUN156..RHD..6FC..SA; GUN166..SA;GUN156..RHD..6F..SA202301-202401
18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUNDTIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.
main42611-YP340iGGN155,GUN156..H..LA; GUN156,16#..(L,S)..LA; GUN156..6F..BZAGT; GUN156..6FC..H..BZAGT; GUN156..L..BZAGT; GUN156..S..BZAGT202211-202310
18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUNDTIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AS:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),T/P AS:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AS:REFER ILLUST.
18X7.5J,#,GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT),T/P BC:REFER ILLUST.
18X7.5J,#,GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT),T/P BC:REFERILLUST.
18X7.5J,#,GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&SPARE TIRE-GROUND TIRE,*ALU(18 INCH),FOR GR SPORT,T/P AS:REFER ILLUST.
18X7.5J,#,T/P AT:REFER ILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AT:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
main90942-01109×24supersedes 90942-01082iGUN155,TGN156..THP..(H,S);GGN155,GUN156,16#,TGN166..THP; GUN155,TGN156..THP..L202208-202307
(J),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/65R17 ALUMINUM,(J),T/P B:REF.ILLUST
(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 4 diagrams in section
