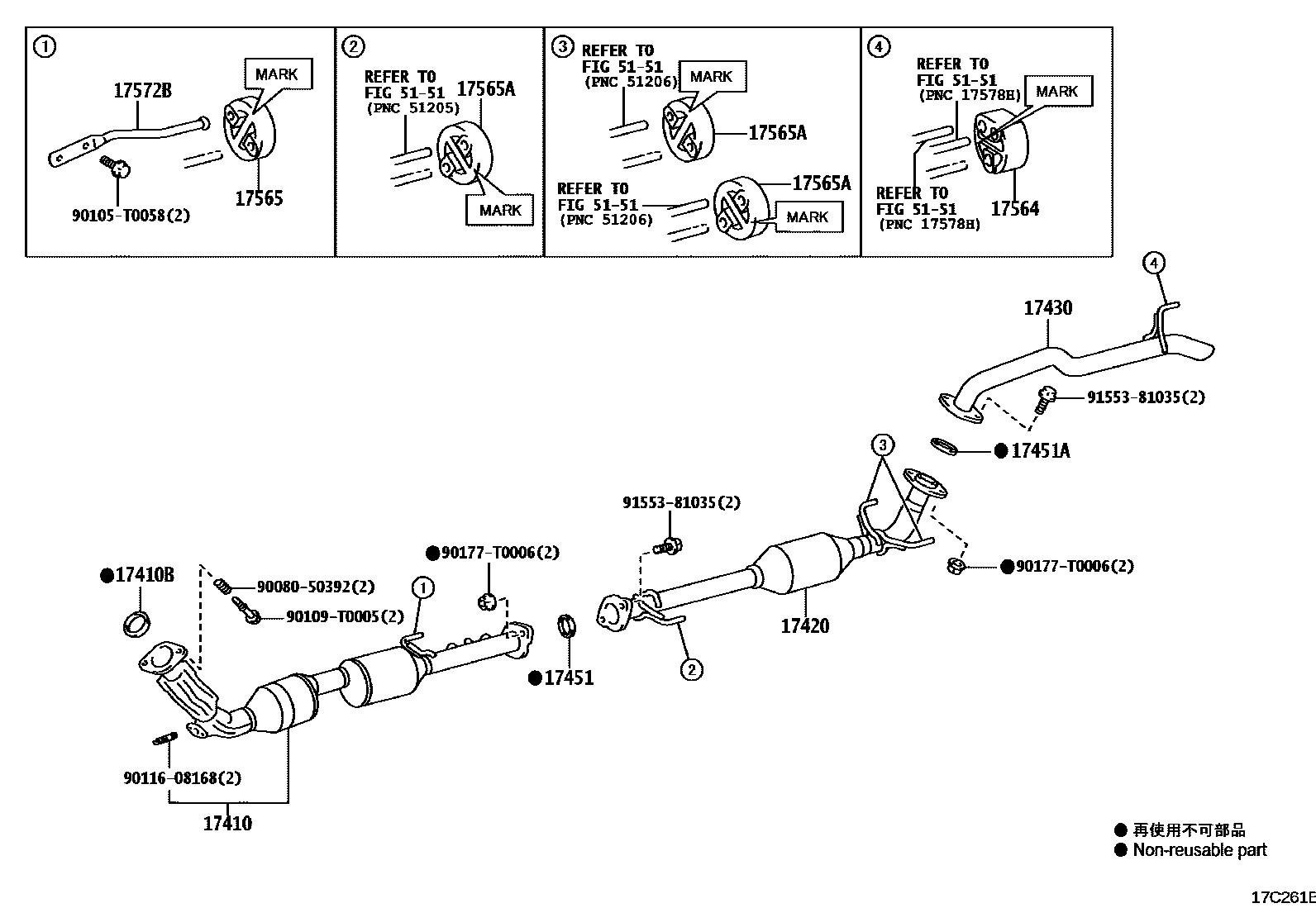

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
main17401-0C550supersedes 17401-0C660i2TRFE..TGN166..VNP;2TRFE..TGN156..L..GEN;2TRFE..TGN156,166..GCC,IDN,LA,MA,PKN202208-202304
main17401-0C551i2TRFE..TGN156..H..GEN; 2TRFE..TGN156..L..GEN;2TRFE..TGN156,166..(IDNP,MAP)..(GCC,IDN,MA)202304-202308
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ONBOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main17401-0C621supersedes 17401-0C551i2TRFE..TGN156,166..(IDNP,INDP)..(IND,VN); 2TRFE..TGN166..GEN; 2TRFE..TGN166..VNP202209-202304
SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO 6C
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main17401-0L180supersedes 17410-0E130i1GDFTV,2GDFTV..GUN15#..MA; 1GDFTV..GUN156..IDNP..(GCC,PH);1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP..(GCC,GEN,PH)202208-202308
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main17401-0L190supersedes 17401-0L180i1GDFTV,2GDFTV..GUN15#..RHD..GEN; 1GDFTV,2GDFTV..GUN156,165..IDNP..VN202209-202308
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C; TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 6C
EXHAUST EMISSION CONTROL-EURO 6C; TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 6C
17410BGASKET, EXHAUST PIPE
MADE IN INDIA
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L110
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-0L070supersedes 17565-0P240i1GRFE..GGN155..IDNP; 2TRFE..TGN156,166..IDNP;1GDFTV..GUN156..IDNP..GEN;2GDFTV..GUN155,165..RHD..GEN202209-202308
MARK:17565-0L070
MARK:17565-0L080
main17565-0L090i1GDFTV..GUN156..H..LA;2GDFTV..GUN165..L..LA;1GDFTV..GUN156..6F..LA; 1GDFTV..GUN166..6FC..LA;1GDFTV,2GDFTV..GUN156,165..LA; 1GRFE..GGN155..LA; 2TRFE..TGN156,166..AGTP202211-202310
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090; EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090; MARK:17565-0L090
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
5151FRAME
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
18 parts on this diagram · 5 diagrams in section
