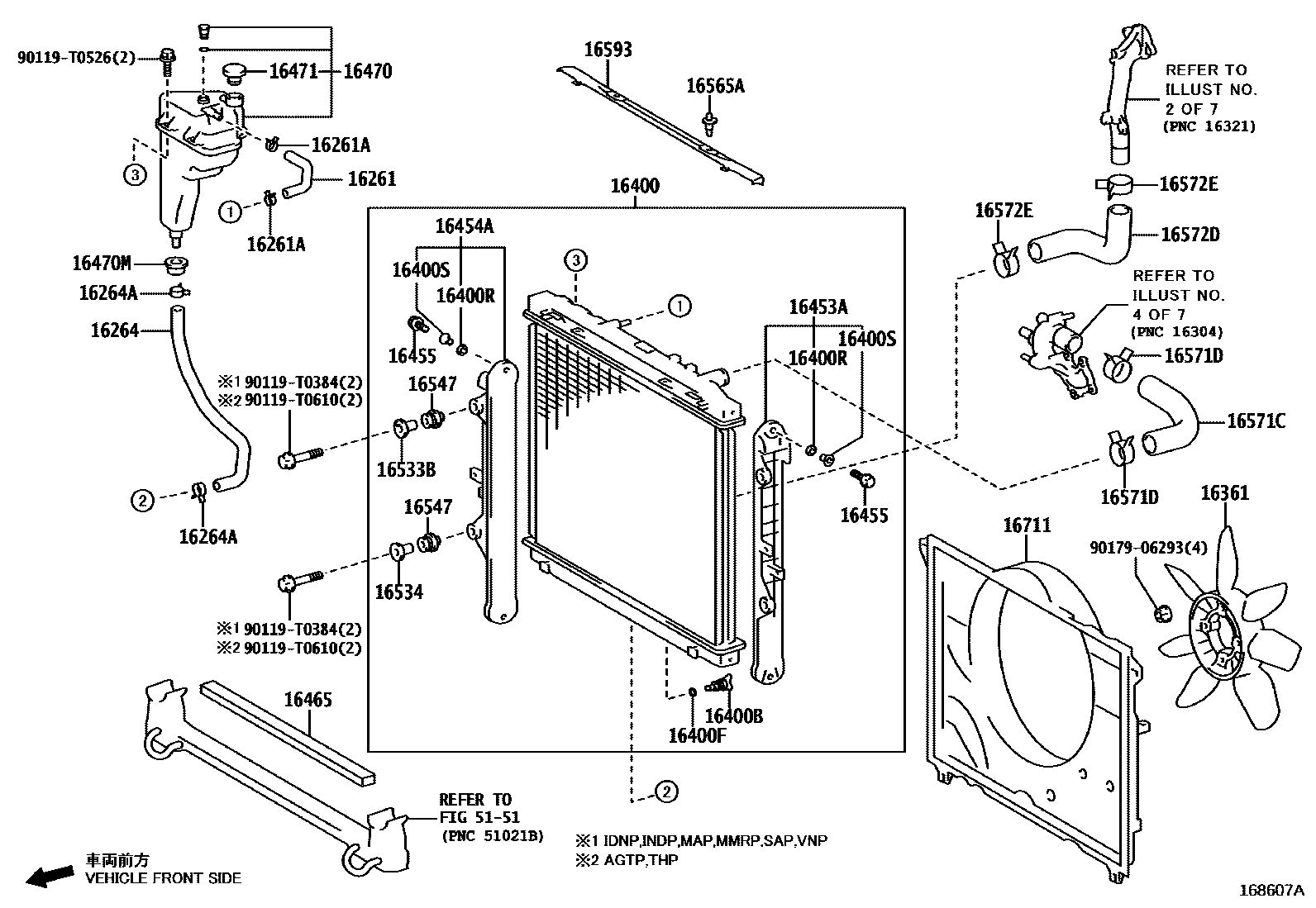

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1RADIATOR SIDE 0011 1ENGINE SIDE 0012 1 0013 1 0014 1 0015 1

16261HOSE, WATER BY-PASS

main16261-0E020i1GDFTV,2GDFTV..GUN156,165..VNP202209-202309

VNM SOURCED PARTS

main16261-0L070i1GDFTV,2GDFTV..GUN15#..MA202209-202308

main16261-0L091i1GDFTV,2GDFTV..GUN15#,16#..IDNP202209-202308

IDN SOURCED PARTS

main16261-0L110i1GDFTV..GUN156,166..IND202210-202309

main16261-0L121i1GDFTV,2GDFTV..GUN15#,16#..KEN,SA202208-202401

main16261-31020i1GRFE..GGN155..EPT202208

TYPE A:REFER ILLUST.

main16261-31100i1GRFE..GGN155..EPT202208

TYPE B:REFER ILLUST.

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90466-T0069×2i1GDFTV,2GDFTV..GUN15#,16#..KEN,SA202208-202401

(L)

main96136-51901×2i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202208-202308

(J)

main96137-41301×2i1GRFE..GGN155..THP202208-202307

16264HOSE, WATER BY-PASS, NO.2

main16264-0C071i2TRFE..TGN156,166..THP202208-202307

IDN SOURCED PARTS

main16264-0C081i2TRFE..TGN166..INDP,VNP202208-202309

THA SOURCED PARTS

main16264-0L070i1GDFTV,2GDFTV..GUN156,165..VNP202209-202309

main16264-0L100i1GDFTV..GUN156,166..IND202210-202309

main16264-0L110i1GDFTV,2GDFTV..GUN15#,16#..THP202208-202307

main16264-0L150i1GDFTV,2GDFTV..GUN15#..MA202209-202308

main16264-31010i1GRFE..GGN155..LA202208-202310

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-T0031×2i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202208-202308

main96137-41301×2i1GRFE..GGN155..LA202208-202310

16361FAN

main16361-0C011i2TRFE..TGN156,166..IDNP,MAP202208-202308

main16361-0E010i1GDFTV..GUN156,166..IDNP,MAP202208-202308

main16361-0L020i2GDFTV..GUN155,165..IDNP,MAP202208-202308

main16361-31060i1GRFE..GGN155..EPT202208

main16361-54131i5LE..LAN155202301

16400RADIATOR ASSY

main16400-05182i5LE..LAN155202301-202401

main16400-0C282i2TRFE..TGN156,166..(INDP,THP,VNP)..6FC202208-202301

main16400-0C283i2TRFE..TGN156,166..THP202302-202307

main16400-0C342i2TRFE..TGN156,166..IDNP..6FC202209-202308

main16400-0C352i2TRFE..TGN156..MA202209-202308

main16400-0C372i2TRFE..TGN156..SA202301-202401

main16400-0C382i2TRFE..TGN166..5F..IND202210-202301

main16400-0C383i2TRFE..TGN166..5F..IND202302-202309

main16400-0C392i2TRFE..TGN156..L..GEN202209-202308

main16400-0C412i2TRFE..TGN166..S..LA202211-202310

main16400-0C442i2TRFE..TGN156,166..AGTP..6FC202211-202310

main16400-0E010i1GDFTV,2GDFTV..GUN16#..TH202208-202307

main16400-0E020i1GDFTV,2GDFTV..GUN16#..IDNP..6FC..(GEN,IDN,PH,VN)202209-202308

main16400-0E030i1GDFTV..GUN166..6FC..IND202210-202309

main16400-0L363i2GDFTV..GUN165..THP..GCC;1GDFTV,2GDFTV..GUN15#..THP202208-202307

main16400-0L371i2GDFTV..GUN165..IDNP..GCC;1GDFTV,2GDFTV..GUN15#..(IDNP,VNP)..6FC202209-202308

main16400-0L381i1GDFTV,2GDFTV..GUN156,16#..AGTP..6FC202211-202310

main16400-0L392i1GDFTV,2GDFTV..GUN15#..6FC..KEN202301-202403

main16400-0L401i1GDFTV..GUN156..6FC..IND202210-202309

main16400-0L441i2GDFTV..GUN155,165..IDNP..6F202209-202308

main16400-0L451i1GDFTV..GUN156,166..AGTP..6F202211-202310

main16400-0L462i1GDFTV..GUN156..6F..KEN202301-202403

main16400-0L521i1GDFTV..GUN156,166..6F..IND202210-202309

main16400-0L551i1GDFTV..GUN156..PKNP202305

main16400-0L571i1GDFTV,2GDFTV..GUN15#..MA202209-202308

main16400-0P332i1GRFE..GGN155..EPT202208-202403

main16400-0P492i1GRFE..GGN155..IDNP202209-202308

main16400-0P532i1GRFE..GGN155..LA202211-202310

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1G#,2GDFTV..GGN155,GUN15#,16#..THP202208-202307

main16417-21280i1GDFTV,2GDFTV..GUN156,16#..AGTP; 2TRFE..TGN156,166..AGTP202211-202310

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i2TRFE..TGN156,166..THP202208-202302

main16492-21050i2TRFE..TGN156,166..AGTP,IDNP,MAP202209-202310

16400RBUSHING(FOR RADIATOR)

main16444-0L060×2i1GRFE..GGN155..EPT202208-202403

main16444-0L400×2i1GDFTV..GUN156,166..IND202210-202309

main16444-75180×2i1GDFTV,2GDFTV..GUN156,16#..AGTP; 2TRFE..TGN156,166..AGTP202211-202310

16400SCOLLAR(FOR RADIATOR)

main16445-0C180×2i2TRFE..TGN156,166..THP202208-202302

16453PLATE, RADIATOR SIDE

main16453-0L370i2TRFE..TGN156,166..IDNP202209-202308

main16453-0L380i2TRFE..TGN156,166..AGTP202211-202310

main16453-0L570i2TRFE..TGN156..MA202209-202308

16453APLATE, RADIATOR SIDE SUPPORT, RH

main16453-0L361i2TRFE..TGN156,166..THP202208-202302

main16453-0L370i2GDFTV..GUN165..IDNP;1G#,2GDFTV..GGN155,GUN15#,166..IDNP,VNP202209-202308

main16453-0L400i1GDFTV..GUN156,166..IND202210-202309

main16453-0L430i1GDFTV,2GDFTV..GUN15#,16#..THP202208-202307

main16453-0L451i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

main16453-0L570i1GDFTV,2GDFTV..GUN15#..MA202209-202308

16454PLATE, RADIATOR SIDE

main16454-0L370i2TRFE..TGN156,166..IDNP202209-202308

main16454-0L380i2TRFE..TGN156,166..AGTP202211-202310

main16454-0L570i2TRFE..TGN156..MA202209-202308

16454APLATE, RADIATOR SIDE SUPPORT, LH

main16454-0L361i2TRFE..TGN156,166..THP202208-202302

main16454-0L370i2GDFTV..GUN165..IDNP;1G#,2GDFTV..GGN155,GUN15#,166..IDNP,VNP202209-202308

main16454-0L380i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

main16454-0L400i1GDFTV..GUN156,166..IND202210-202309

main16454-0L570i1GDFTV,2GDFTV..GUN15#..MA202209-202308

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820×4i2GDFTV..GUN165..VNP;1GDFTV..GUN156,166..IND202208-202309

16465PACKING, RADIATOR

main87417-0K010i1GRFE..GGN155..EPT202208-202403

main87417-0K030i1GRFE..GGN155..IDNP..GCC202209-202308

main88619-0K010i2TRFE..TGN166..EPT202208-202403

main88619-0K020i1G#,2GDFTV..GGN155,GUN156,16#..AGTP; 2TRFE..TGN156,166..AGTP202211-202310

main88619-0K030i2TRFE..TGN156..SA202301-202401

main88619-0K040i1G#..GGN155,GUN166..GEN,IDN,PH;1GDFTV,2GDFTV..GUN15#,165..IDNP; 2TRFE..TGN156,166..IDNP202209-202308

main88619-0K050i1GDFTV..GUN156,166..IND; 2TRFE..TGN166..IND202210-202309

main88619-0K060i1GDFTV,2GDFTV..GUN15#..MA; 2TRFE..TGN156..MA202209-202308

main88619-0K080i2TRFE..TGN156,166..PKN202302

16470TANK ASSY, RADIATOR RESERVE

main16470-05080i5LE..LAN155202301-202401

main16470-0C110i1GRFE..GGN155..EPT; 2TRFE..TGN166..EPT202208-202403

main16470-0C120i1GRFE..GGN155..IDNP; 2TRFE..TGN156,166..IDNP202209-202308

main16470-0C130i1GRFE..GGN155..LA; 2TRFE..TGN156,166..AGTP202211-202310

main16470-0C140i2TRFE..TGN156..SA202301-202401

main16470-0L083i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202208-202308

main16470-0L101i1GDFTV..GUN156,166..IND202210-202309

main16470-0L112i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

main16470-0L122i1GDFTV,2GDFTV..GUN15#,16#..KEN,SA202301-202401

16470MGROMMET

main90480-T0003i1GRFE..GGN155..EPT; 2TRFE..TGN166..EPT202208-202403

main90480-T0004i1GDFTV,2GDFTV..GUN15#,16#..KEN,SA202208-202401

16471CAP SUB-ASSY, RESERVE TANK

main16405-05050i5LE..LAN155202301-202401

main16405-0C090i1GRFE..GGN155..EPT; 2TRFE..TGN166..EPT202208-202403

main16405-0C100i1GRFE..GGN155..IDNP; 2TRFE..TGN156,166..IDNP202209-202308

main16405-0C110i1GRFE..GGN155..LA; 2TRFE..TGN156,166..AGTP202211-202310

main16405-0C120i2TRFE..TGN156..SA202301-202401

main16475-28140i1GDFTV..GUN156..PKNP202208

16533BSUPPORT, RADIATOR, NO.1

main16533-0L010×2i1G#,2GDFTV..GGN155,GUN15#,16#..THP; 2TRFE..TGN156,166..THP202208-202307

main16533-0L020×2i1GDFTV,2GDFTV..GUN15#,16#..SA; 2TRFE..TGN156..SA; 5LE..LAN155202301-202401

main16533-0L030×2i1GDFTV..GUN156,166..IND202210-202309

main16533-0L040×2i2GDFTV..GUN165..IDNP;1G#,2GDFTV..GGN155,GUN15#,166..IDNP,VNP; 2TRFE..TGN156,166..IDNP202209-202308

16534SUPPORT, RADIATOR, NO.2

main16534-0L010×2i1G#,2GDFTV..GGN155,GUN15#,16#..THP; 2TRFE..TGN156,166..THP202208-202307

main16534-0L020×2i1GDFTV,2GDFTV..GUN15#,16#..SA; 2TRFE..TGN156..SA; 5LE..LAN155202301-202401

main16534-0L030×2i1GDFTV..GUN156,166..IND202210-202309

main16534-0L040×2i2GDFTV..GUN165..IDNP;1G#,2GDFTV..GGN155,GUN15#,166..IDNP,VNP; 2TRFE..TGN156,166..IDNP202209-202308

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-0L010×4i1G#,2GDFTV..GGN155,GUN156,16#..AGTP; 2TRFE..TGN156,166..AGTP202208-202310

main16547-0L020×4i1GDFTV,2GDFTV..GUN15#,16#..SA; 2TRFE..TGN156..SA; 5LE..LAN155202301-202401

main16547-0L030×4i1GDFTV..GUN156,166..IND202210-202309

main16547-0L040×4i2GDFTV..GUN165..IDNP;1G#,2GDFTV..GGN155,GUN15#,166..IDNP,VNP; 2TRFE..TGN156,166..IDNP202209-202308

16565ACLIP

main90467-07076-C0×4i1GDFTV..GUN156,166..IND; 2TRFE..TGN166..IND202301-202309

BLACK,JAPAN SOURCED PARTS

main90467-T0022×4i1GDFTV..GUN156,166..IND; 2TRFE..TGN166..IND202210-202309

IND SOURCED PARTS

main90467-T0027-C0×4i1G#,2GDFTV..GGN155,GUN15#..EPT,KEN; 2TRFE..TGN166..EPT202208-202403

BLACK

16571CHOSE, RADIATOR, NO.1

main16571-05090i5LE..LAN155202301-202401

main16571-0C140i2TRFE..TGN156,166..IDNP202209-202308

main16571-0C160i2TRFE..TGN156,166..THP202208-202307

main16571-0C210i2TRFE..TGN156..MA202209-202308

main16571-0C220i2TRFE..TGN166..VNP202209-202309

main16571-0E010i1GDFTV,2GDFTV..GUN156,165..VNP202209-202309

VNM SOURCED PARTS

main16571-0L110i1GDFTV,2GDFTV..GUN15#,16#..IDNP202209-202308

IDN SOURCED PARTS

main16571-0L120i1GDFTV..GUN156,166..IND202210-202309

main16571-0L150i1GDFTV,2GDFTV..GUN15#,16#..THP202208-202307

main16571-0L170i1GDFTV,2GDFTV..GUN15#..MA202209-202308

main16571-0P290i1GRFE..GGN155..LA202208-202310

main16571-0P300i1GRFE..GGN155..IDNP202209-202308

16571DCLIP, RADIATOR HOSE, NO.1

main90466-T0024×2i1GDFTV..GUN156..PKNP202208

main90466-T0028×2i2TRFE..TGN166..INDP,VNP202208-202309

16572DHOSE, RADIATOR, NO.2

main16572-05080i5LE..LAN155202301-202401

main16572-0C140i2TRFE..TGN156,166..IDNP202209-202308

main16572-0C160i2TRFE..TGN156,166..AGTP202208-202310

main16572-0C220i2TRFE..TGN156..MA202209-202308

main16572-0C230i2TRFE..TGN166..VNP202209-202309

main16572-0E010i1GDFTV,2GDFTV..GUN156,165..VNP202209-202309

VNM SOURCED PARTS

main16572-0L110i1GDFTV,2GDFTV..GUN15#,16#..IDNP202209-202308

IDN SOURCED PARTS

main16572-0L120i1GDFTV..GUN156,166..IND202210-202309

main16572-0L150i1GDFTV..GUN156..PKNP202208

main16572-0L200i1GDFTV,2GDFTV..GUN15#..MA202209-202308

main16572-0P290i1GRFE..GGN155..LA202208-202310

main16572-0P300i1GRFE..GGN155..IDNP202209-202308

16572ECLIP, RADIATOR HOSE, NO.2

main90466-T0024×2i1GDFTV..GUN156..PKNP202208

main90466-T0028×2i1GRFE..GGN155..EPT; 2TRFE..TGN166..EPT202208-202403

16593GUIDE, RADIATOR AIR, NO.1

main16593-0E010i1GDFTV,2GDFTV..GUN156,165..VNP; 2TRFE..TGN166..VNP202209-202309

MARK=16593-0E010

main16593-0L010i1G#,2GDFTV..GGN155,GUN15#,16#..IDNP; 2TRFE..TGN156,166..IDNP202209-202308

main16593-0L020i1G#,2GDFTV..GGN155,GUN156,16#..AGTP; 2TRFE..TGN156,166..AGTP202211-202310

main16593-0L030i1GDFTV,2GDFTV..GUN15#..KEN202301-202403

main16593-0L040i1GDFTV..GUN156..PKNP; 2TRFE..TGN156,166..PKN202208

main16593-0L050i1GDFTV..GUN156,166..IND; 2TRFE..TGN166..IND202210-202309

16711SHROUD, FAN

main16711-05080i5LE..LAN155202301-202401

main16711-0C180i2TRFE..TGN156,166..PKN202208

main16711-0C190i2TRFE..TGN156,166..IDNP202209-202308

main16711-0C200i2TRFE..TGN156,166..AGTP202211-202310

main16711-0C210i2TRFE..TGN156..SA202301-202401

main16711-0C231i2TRFE..TGN156..MA202209-202308

main16711-0E040i1GDFTV..GUN156..PKNP202305

PAK SOURCED PARTS

main16711-0L140i1GDFTV..GUN156..PKNP202305

THA SOURCED PARTS

main16711-0L150i1GDFTV,2GDFTV..GUN15#,16#..IDNP,VNP202209-202308

main16711-0L160i1GDFTV..GUN156,166..IND202210-202309

main16711-0L170i1GDFTV,2GDFTV..GUN156,16#..AGTP202211-202310

main16711-0L180i1GDFTV,2GDFTV..GUN15#,16#..KEN,SA202301-202401

main16711-0L200i1GDFTV,2GDFTV..GUN15#..MA202209-202308

main16711-0P261i1GRFE..GGN155..EPT202208-202401

main16711-0P271i1GRFE..GGN155..IDNP202209-202308

main16711-0P281i1GRFE..GGN155..LA202211-202310

5151FRAME

→ Go to FIG 51-51

90119T0384

main90119-T0384

90119T0526

main90119-T0526

90119T0610

main90119-T0610

9017906293

main90179-06293

34 parts on this diagram · 15 diagrams in section
