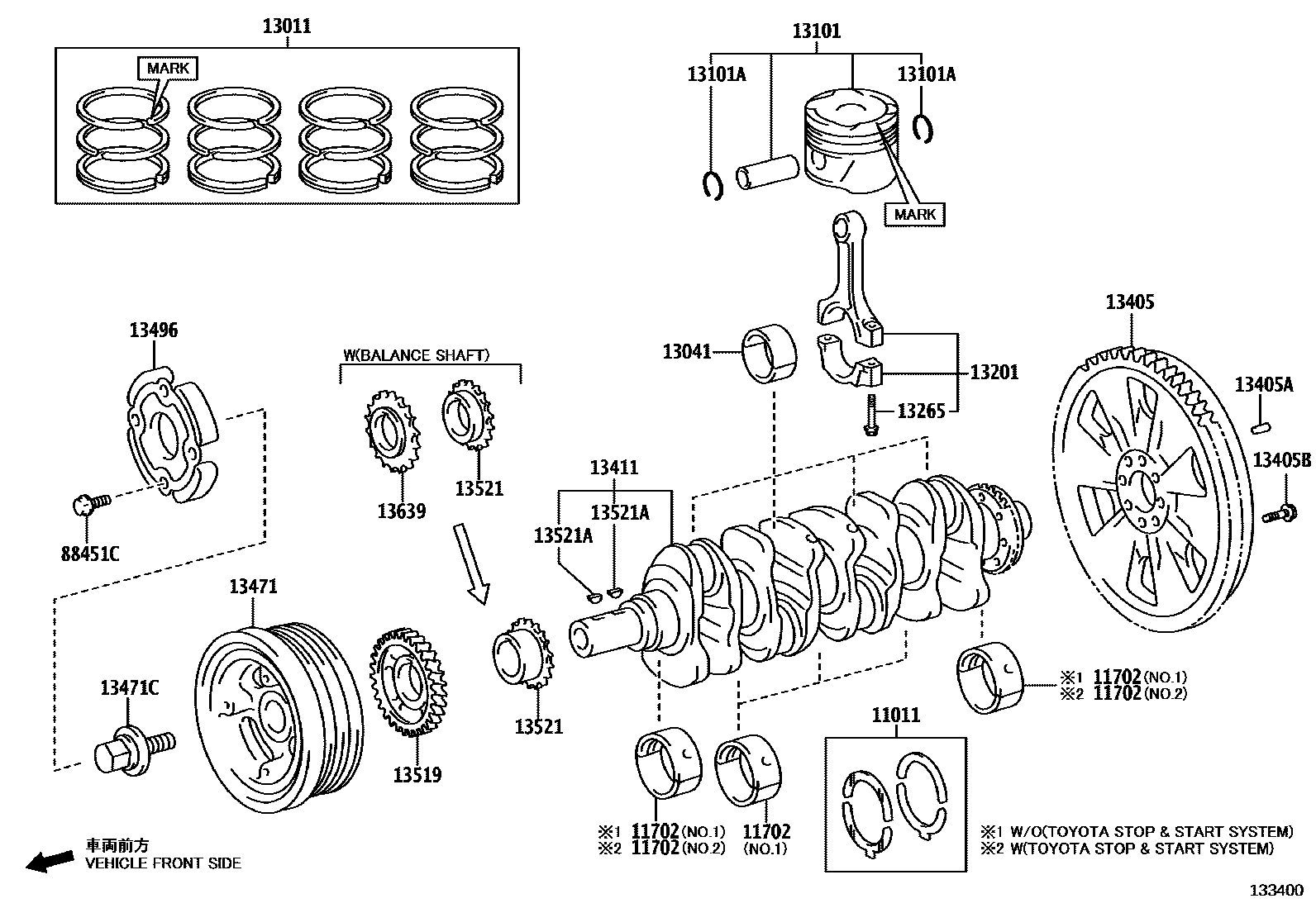

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,(L)
STD,(J)
STD
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD,MARK 1,NO.2,REFER R/M
STD,MARK 2,NO.2,REFER R/M
STD,MARK 3,NO.2,REFER R/M
STD,MARK 4,NO.2,REFER R/M
STD,MARK 5,NO.2,REFER R/M
main11701-0E010-02×5supersedes 11701-0E040-06i1GDFTV,2GDFTV..GUN15#,16#..6FC..IDN; 1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 2,NO.1,*652; MARK 2,NO.1,REFER R/M,*652
MARK 3,NO.1,*652
main11701-0E010-04×5i1GDFTV,2GDFTV..GUN15#..IDNP..GCC; 2GDFTV..GUN165..IDNP..S..VN;2GDFTV..GUN155,165..RHD..(GEN,MA);2GDFTV..GUN165..IDNP..6F..(IDN,VN);1GDFTV..GUN156..(IDNP,MAP)..(ARL,GEN,MA,VN)202208-202308
GCC SPEC EURO4 2022MY,MARK 4,NO.1,*652; MARK 4,NO.1,*652
main11701-0E010-05×3i2GDFTV..GUN155..MA; 2GDFTV..GUN155..RHD..GEN; 2GDFTV..GUN165..6F..PH;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..IDNP..6FC..(GCC,IDN,PH)202302-202308
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,*652; MARK 5,NO.1,*652; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),MARK 5,NO.1,*652
main11701-0E010-06×3i1GDFTV,2GDFTV..GUN15#,16#..6FC..IDN; 1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 6,NO.1,*652; MARK 6,NO.1,REFER R/M,*652
main11701-0E020-02×2i1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 2,NO.2,REFER R/M,*652
main11701-0E020-03×2i1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 3,NO.2,REFER R/M,*652
main11701-0E020-04×2i1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 4,NO.2,REFER R/M,*652
main11701-0E020-05×2i1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 5,NO.2,REFER R/M,*652
main11701-0E020-06×2i1GDFTV..GUN156..VNP;2GDFTV..GUN165..THP,VNP;2GDFTV..GUN155..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..GCC,PH,TH;2GDFTV..GUN165..LHD..IDNP..(GCC,GEN,PH)202208-202302
MARK 6,NO.2,REFER R/M,*652
MARK 2,NO.1,*650
MARK 3,NO.1,*650
MARK 4,NO.1,*650
MARK 5,NO.1,*650
MARK 6,NO.1,*650
MARK 2,NO.2,REFER R/M,*652
MARK 3,NO.2,REFER R/M,*652
main11701-0E040-04×2i2GDFTV..GUN155..MA; 2GDFTV..GUN155..RHD..GEN; 2GDFTV..GUN165..6F..PH;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..IDNP..6FC..(GCC,IDN,PH)202302-202308
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.2,REFER R/M,*652; MARK 4,NO.2,REFER R/M,*652; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),MARK 4,NO.2,REFER R/M,*652
main11701-0E040-05×2i2GDFTV..GUN155..MA; 2GDFTV..GUN155..RHD..GEN; 2GDFTV..GUN165..6F..PH;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..IDNP..6FC..(GCC,IDN,PH)202302-202308
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.2,REFER R/M,*652; MARK 5,NO.2,REFER R/M,*652; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),MARK 5,NO.2,REFER R/M,*652
main11701-0E040-06×2i2GDFTV..GUN155..MA; 2GDFTV..GUN155..RHD..GEN; 2GDFTV..GUN165..6F..PH;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..IDNP..6FC..(GCC,IDN,PH)202302-202308
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,NO.2,REFER R/M,*652; MARK 6,NO.2,REFER R/M,*652; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),MARK 6,NO.2,REFER R/M,*652
MARK 2,NO.1,(J)
MARK 3,NO.1,(J)
MARK 4,NO.1,(J)
MARK 5,NO.1,(J)
MARK 6,NO.1,(J)
main11701-11040-02×2i2GDFTV..GUN155,165..THP; 2GDFTV..GUN155..THP..GCC; 2GDFTV..GUN155..THP..S202208-202303
GCC SPEC EURO4 2022MY,MARK 2,NO.2,(J); MARK 2,NO.2,(J); UAE SPEC,MARK 2,NO.2,(J)
main11701-11040-03×2i2GDFTV..GUN155,165..THP; 2GDFTV..GUN155..THP..GCC; 2GDFTV..GUN155..THP..S202208-202303
GCC SPEC EURO4 2022MY,MARK 3,NO.2,(J); MARK 3,NO.2,(J); UAE SPEC,MARK 3,NO.2,(J)
main11701-11040-04×2i2GDFTV..GUN155,165..THP; 2GDFTV..GUN155..THP..GCC; 2GDFTV..GUN155..THP..S202208-202303
GCC SPEC EURO4 2022MY,MARK 4,NO.2,(J); MARK 4,NO.2,(J); UAE SPEC,MARK 4,NO.2,(J)
main11701-11040-05×2i2GDFTV..GUN155,165..THP; 2GDFTV..GUN155..THP..GCC; 2GDFTV..GUN155..THP..S202208-202303
GCC SPEC EURO4 2022MY,MARK 5,NO.2,(J); MARK 5,NO.2,(J); UAE SPEC,MARK 5,NO.2,(J)
main11701-11040-06×2i2GDFTV..GUN155,165..THP; 2GDFTV..GUN155..THP..GCC; 2GDFTV..GUN155..THP..S202208-202303
GCC SPEC EURO4 2022MY,MARK 6,NO.2,(J); MARK 6,NO.2,(J); UAE SPEC,MARK 6,NO.2,(J)
STD,MARK 1,NO.1,REFER R/M
STD,MARK 2,NO.1,REFER R/M
STD,MARK 3,NO.1,REFER R/M
STD,MARK 4,NO.1,REFER R/M
STD,MARK 5,NO.1,REFER R/M
STD,MARK 2,NO.2,(J)
STD,MARK 3,NO.2,(J)
STD,MARK 4,NO.2,(J)
STD,MARK 5,NO.2,(J)
STD,MARK 6,NO.2,(J)
U/S 0.25
U/S 0.25
U/S 0.50
13011RING SET, PISTON
STD,(L)
main13011-0E022supersedes 13011-0E042i2GDFTV..GUN165..6FC..SA;1GDFTV,2GDFTV..GUN15#,166..SA202208-202401
STD,MARK=1G
STD,MARK=1H,*652
STD,MARK=1H,*650
STD,MARK=1H,(J)
STD
STD
STD,(J)
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 2,THA SOURCED PARTS
MARK 3,THA SOURCED PARTS
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6,THA SOURCED PARTS
MARK 2,THA SOURCED PARTS
MARK 3,THA SOURCED PARTS
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6,THA SOURCED PARTS
MARK 2,IND SOURCED PARTS
MARK 3,IND SOURCED PARTS
MARK 4,IND SOURCED PARTS
MARK 5,IND SOURCED PARTS
MARK 6,IND SOURCED PARTS
MARK 2,JAPAN SOURCED PARTS
MARK 3,JAPAN SOURCED PARTS
MARK 4,JAPAN SOURCED PARTS
MARK 5,JAPAN SOURCED PARTS
MARK 6,JAPAN SOURCED PARTS
MARK 1
MARK 2
MARK 3
MARK 4
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,IDN SOURCED PARTS
STD,THA SOURCED PARTS
STD,MARK 1,MARK=2GD51
STD,MARK 2,MARK=2GD51
STD,MARK 1,MARK=1GD71
STD,MARK 2,MARK=1GD71
STD,MARK 1,MARK=1GD81
STD,MARK 2,MARK=1GD81
STD,MARK 1,MARK=2GD21
STD,MARK 2,MARK=2GD21
STD,MARK A,REFER R/M
STD,MARK B,REFER R/M
STD,MARK C,REFER R/M
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
IDN SOURCED PARTS
THA SOURCED PARTS
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,IND SOURCED PARTS
MARK B,IND SOURCED PARTS
MARK C,IND SOURCED PARTS
MARK A,JAPAN SOURCED PARTS
MARK B,JAPAN SOURCED PARTS
MARK C,JAPAN SOURCED PARTS
MARK A,JAPAN SOURCED PARTS
MARK B,JAPAN SOURCED PARTS
MARK C,JAPAN SOURCED PARTS
MARK A
MARK B
MARK C
13265BOLT, CONNECTING ROD
IDN SOURCED PARTS
THA SOURCED PARTS
13405FLYWHEEL SUB-ASSY
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
ARG SOURCED PARTS
ARG SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5,(J)
L=23,OD=8
L=22,OD=10,(L)
L=23,OD=8,(L)
L=15,OD=5,(L)
13405BBOLT, FLYWHEEL SETTING
(J)
(L)
(J)
(L)
13411CRANKSHAFT
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
(J)
13471PULLEY, CRANKSHAFT
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
(J)
(L)
13496COVER, CRANKSHAFT PULLY
THA SOURCED PARTS
IND SOURCED PARTS
13519GEAR, OIL PUMP DRIVE
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
(J)
13639SPROCKET, BALANCESHAFT TIMING
(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
(J)
88451CBOLT, FLANGE W/WASHER
