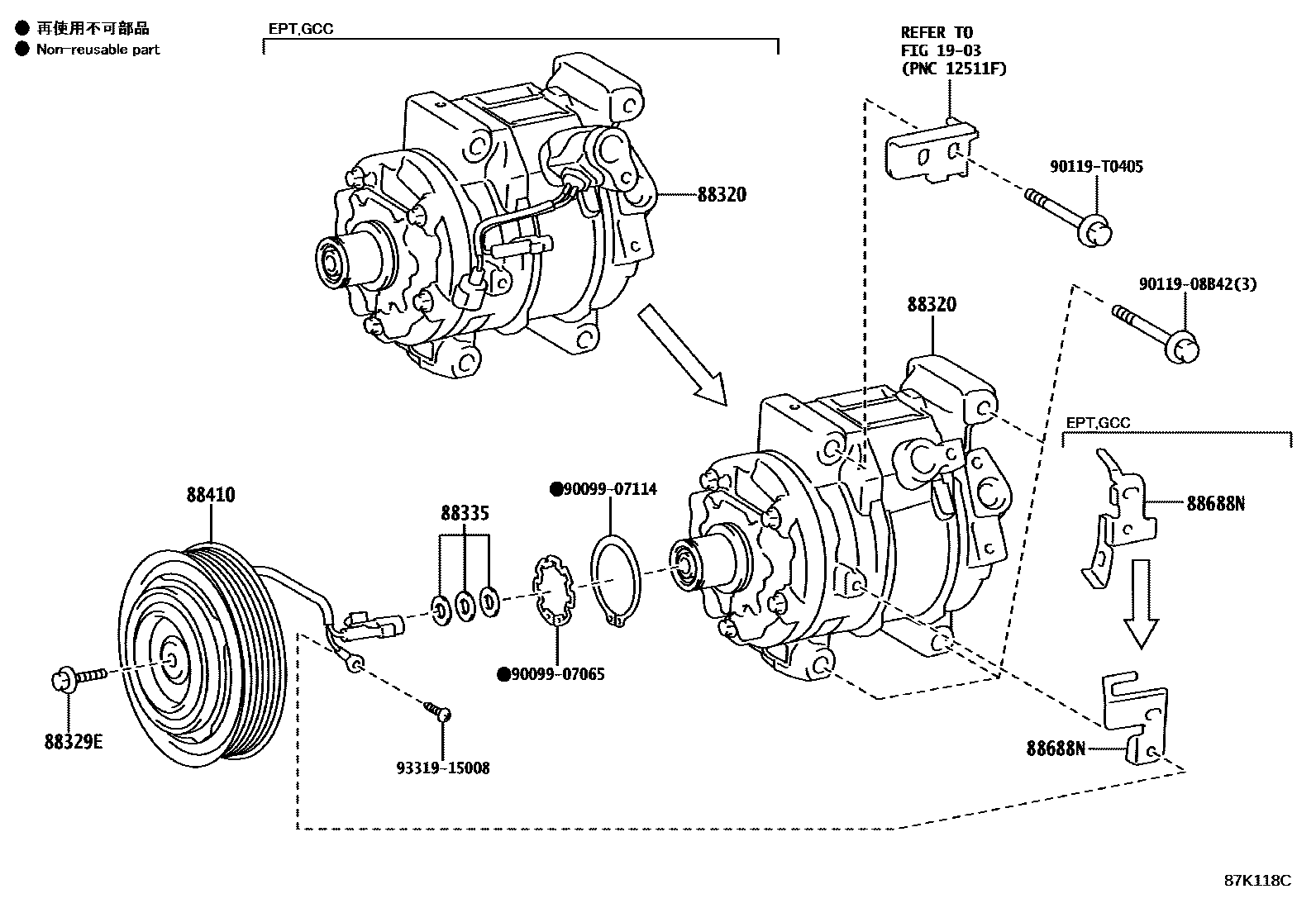

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1903ALTERNATOR

→ Go to FIG 19-03

88320COMPRESSOR ASSY, COOLER

main88320-0K540iGGN155,GUN156,16#,TGN156,16#..AGTP,VNP202108-202210

main88320-0K560iGGN155..THP202108-202207

main88320-0K570iTGN156,166..IDNP..GCC202108-202208

main88320-0K640iGUN15#,165..THP..GCC202108-202207

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

88335GASKET KIT, OVERHAUL

main88335-14020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

88410CLUTCH ASSY, MAGNET

main88410-0K600iGUN15#,16#..(IDNP,MAP)..(ARL,GEN,IDN,MA,PH,VN)202108-202208

main88410-0K610iTGN166..IND202108-202209

main88410-0K621iGGN155..LA202108-202210

main88410-0K631iGGN155..IDNP..GCC202108-202208

main88410-0K680iGUN15#,165..IDNP..GCC202108-202208

main88410-0K820iTGN166..EPT202108-202304

main88410-0K830iTGN156,166..IDNP..GCC202108-202208

88688NBRACKET, COOLER

main88688-0K280iTGN156,166..IDNP,MAP202108-202208

main88849-0K010iGGN155..GEN; GUN15#,16#..(IDNP,MAP)..(ARL,GEN,IDN,MA,PH,VN)202108-202208

NO.1

main88849-0K020iGUN15#,16#..IDNP,MAP202108-202208

NO.2

main88849-0K030iGGN155..THP; GUN15#,165..THP..GCC202108-202207

NO.1

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

90119T0405

main90119-T0405

9331915008

main93319-15008

11 parts on this diagram · 6 diagrams in section
