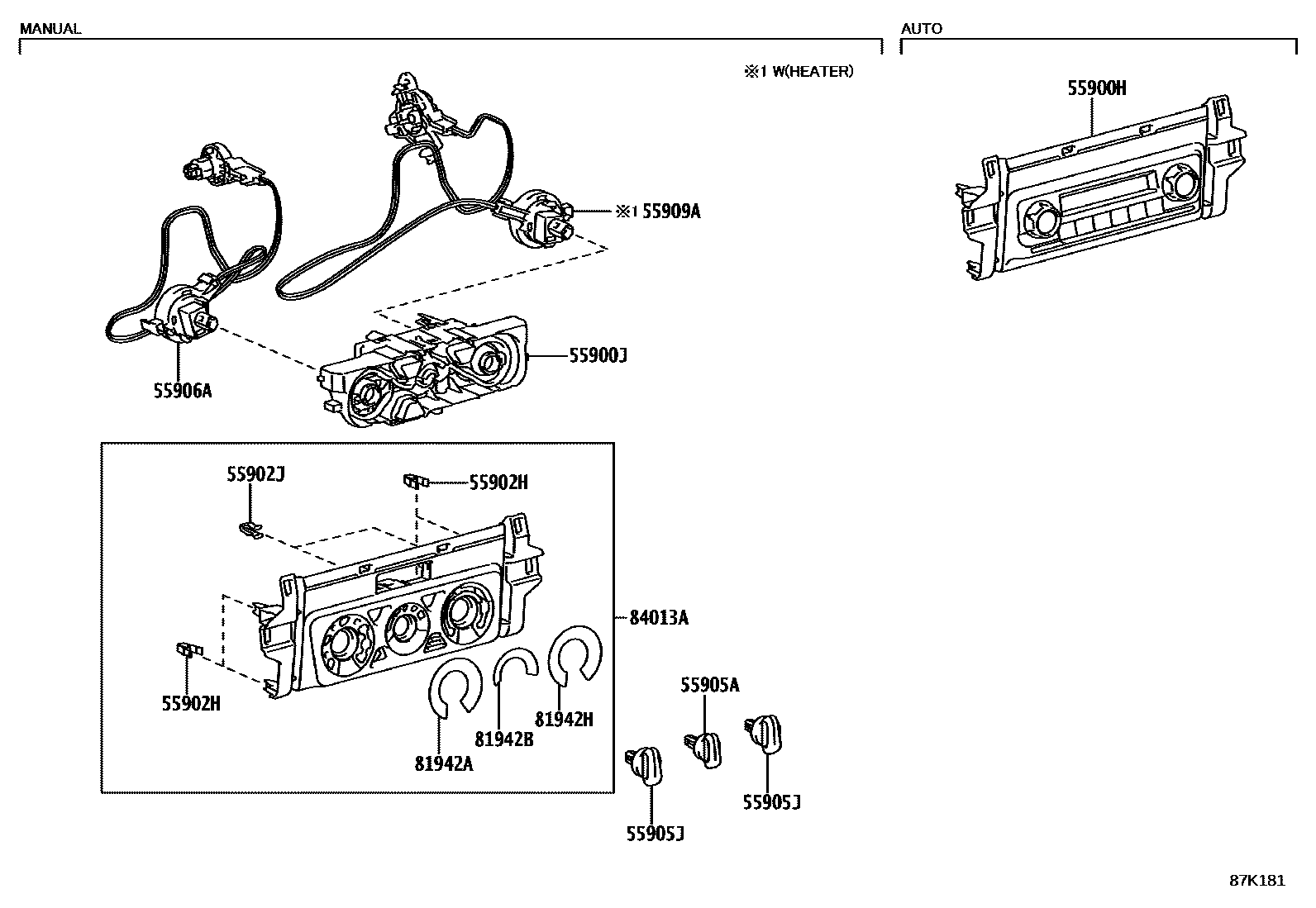

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1ROOF AIR DUCT 0006 1SENSOR 0007 1SENSOR

55900HCONTROL ASSY, AIR CONDITIONER(AUTO)

main55900-0KN00iGUN156,16#,TGN156,166..IDNP..(H,S)..(PH,VN); GUN156..LHD..IDNP..GEN; GUN165..LHD..GEN202108-202208

ASEAN GENERAL SPEC; ASEAN GENERAL SPEC&FRONT AIR CONDITIONER-AUTO

main55900-0KN10iGGN155..GEN; TGN156..L..GEN202108-202208

FRONT AIR CONDITIONER-AUTO

main55900-0KN20iGGN155,TGN156..IDNP..(H,S)..GCC;GUN15#..LHD..IDNP..(H,S)..(GCC,GEN); GUN165..LHD..GEN;TGN156..IDNP..L..GCC202108-202208

FRONT AIR CONDITIONER-AUTO

main55900-0KN30iGUN15#,TGN156..LHD..SA202109-202301

main55900-0KN70iGUN156,165,TGN166..VNP..6FC202110-202210

main55900-0KN80iGGN155..EPT202108-202304

main55900-0KN90iGUN15#,16#,TGN166..IDN; GUN156,TGN166..RHD..GEN; GUN156..RHD..GEN; GUN165..RHD..GEN; TGN166..H..GEN202108-202208

ASEAN GENERAL SPEC; BRUNEI SPEC; FRONT AIR CONDITIONER-AUTO; SINGAPORE SPEC

main55900-0KP10iGUN15#,TGN156,166..RHD..GEN202108-202208

main55900-0KP20iGUN156,166..RHD..SA202108-202301

main55900-0KP30iGUN156,166,TGN166..IND202110-202209

main55900-0KP40iGUN15#,16#..TH202108-202207

main55900-0KP50iGGN155,TGN168..AGTP;GUN156,165,TGN156,166..AGTP..H; GUN156..S..BZAGT;GUN16#,TGN156,166..AGTP..6FC..(L,S)202111-202210

FRONT AIR CONDITIONER-AUTO

main55900-0KP00iGUN156,TGN156,166..RHD..GEN202108-202208

CENTRAL AND SOUTH AMERICA SPEC

main55900-0KP60iGUN156..H..BZAGT202111-202210

OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)

55900JCONTROL ASSY, AIR CONDITIONER(MANUAL)

main55900-0KD50iGUN155..MA202110-202208

main55900-0KE70iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

main55900-0KF50iGUN165..L..PH202108-202208

main55900-0KF60iGUN165..(AGTP,VNP)..L;GUN156,166,TGN156,166..AGTP..(L,S)202108-202210

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-10203×4iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

main90467-T0033×4iGUN155,165..L..(MA,PH)202108-202208

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90467-10203×2iGUN155,165,TGN156,166..THP..L202108-202207

main90467-T0033×2iGUN155,165..L..(MA,PH)202108-202208

main90468-08048×2iGUN156..THP..(L,S)202108-202207

55905AKNOB, HEATER CONTROL

main55917-0K050iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

55905JKNOB SUB-ASSY, CONTROL

main55905-0K180×2iGUN165..IDNP..(GCC,GEN);GUN165..IDNP..L..(PH,VN);GUN15#,TGN156,166..(IDNP,MAP)..L202108-202208

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K060iGUN156,16#,TGN156,166..AGTP..(L,S)202108-202210

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K060iLAN155,TGN166..EPT,SA;GUN155,165..(SAP,VNP)..L202108-202304

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-0K050iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K710iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

81942HSHEET, HEATER CONTROL NAME, NO.3

main81943-0K080iLAN155,TGN166..EPT,SA;GUN155,165..(SAP,VNP)..L202108-202304

main81943-0K180iGUN155,165..L..(MA,PH)202108-202208

84013APANEL SUB-ASSY, INTEGRATION

main55406-KK100iGUN155,165,TGN156,166..THP..L202108-202207

main55406-KK110iGUN165,TGN156..LHD..GEN; GUN165..RHD..GEN;GUN165..IDNP..L..VN202108-202208

ASEAN GENERAL SPEC

main55406-KK250iGUN155,165..L..(MA,PH)202108-202208

main55406-KK290iGUN156..THP..(L,S)202108-202207

main55406-KK300iGUN156,16#,TGN156,166..AGTP..(L,S)202108-202210

12 parts on this diagram · 7 diagrams in section
