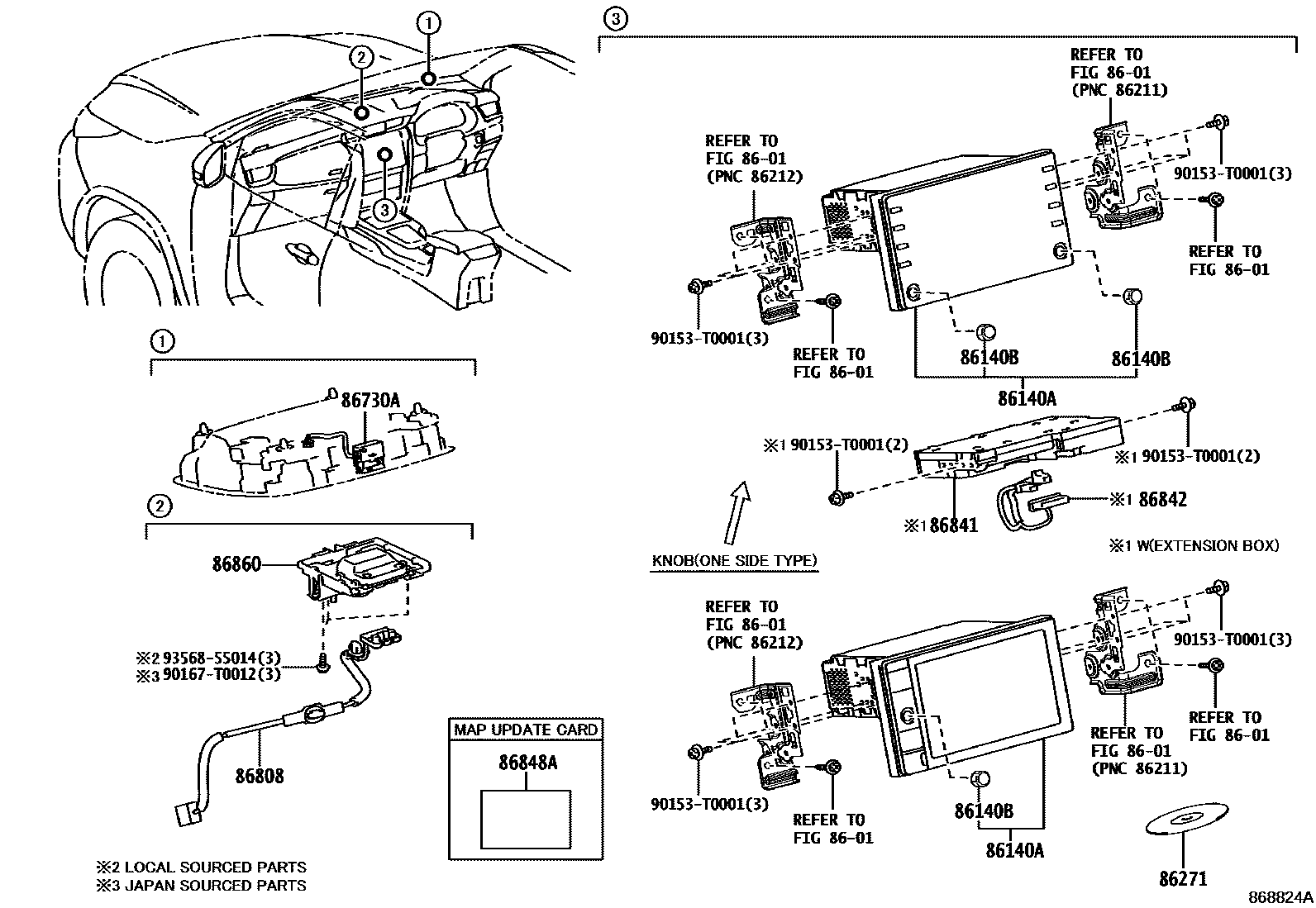

NAVIGATION & FRONT MONITOR DISPLAY
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86140ARECEIVER ASSY, RADIO & DISPLAY
main86140-0KF81iGGN155..IDNP..H..GCC; GUN155,165..LHD..6FC..GEN; TGN156,166..IDNP..L..GCC202108-202208
DENSO TEN; DENSO TEN,AFRICA SPEC; DENSO TEN,AFRICA SPEC&AUDIO-*DA(8INCH) & *BT
main86140-0KG00iGUN156,165..LHD..IDNP..GEN; GUN165..S..PH;GUN156..IDNP..VN;GUN166,TGN156..LHD..IDNP..H202108-202208
PANASONIC; PANASONIC,ASEAN GENERAL SPEC
main86140-0KG41iTGN156,166..IDNP..L..GCC;GGN155,GUN155..IDNP..S..GCC; TGN156..IDNP..S;GGN155,GUN15#..IDNP..H..GCC202108-202208
DENSO TEN; DENSO TEN,AUDIO-*DA(8INCH) & *BT
DENSO TEN
main86140-0KG90iGUN156,TGN166..RHD..GEN; GUN156..RHD..GEN; GUN165..RHD..GEN; TGN166..H..GEN202108-202208
PANASONIC; PANASONIC,ASEAN GENERAL SPEC; PANASONIC,BRUNEI SPEC; PANASONIC,SINGAPORE SPEC
PANASONIC
DENSO TEN; DENSO TEN,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)
main86140-0KJ41iGUN155..RHD..GEN;GUN156..IDNP..ARL; GUN156,TGN156..RHD..GEN; GUN156..RHD..GEN202108-202208
DENSO TEN; DENSO TEN,OCEANIA GENERAL (EURO 4 REGULATION); DENSO TEN,OCEANIA GENERAL SPEC; DENSO TEN,OCEANIA(EURO 5)
main86140-0KK10supersedes 86140-0KZ70iGUN156,TGN166..L..LA; GUN165..H..LA; GUN165..L..LA;GGN155,GUN156..H..LA;GUN156,TGN156..S..BZAGT;TGN166..AGTP..6FC..(H,S)202111-202210
PIONEER; PIONEER,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; PIONEER,SPEAKER-6SPEAKER
main86140-0KX20supersedes 86140-0KX10iGUN156,TGN168..L..BZAGT; GUN156..6FC..H..BZAGT; GUN156..6FC..S..BZAGT; TGN168..S202111-202210
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT & DIGITAL TV; PIONEER,BRAZIL SPEC; PIONEER,BRAZIL SPEC&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
PANASONIC; PANASONIC,SPEAKER-11SPEAKER & JBL
DENSO TEN
DENSO TEN
DENSO TEN; DENSO TEN,AUDIO-*DA(8INCH) & *BT & DAB&SPEAKER-6SPEAKER&BACK MONITOR-WITH
PANASONIC,ASEAN GENERAL SPEC; PANASONIC,CAMBODIA SPEC
DENSO TEN,ASEAN GENERAL SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)&BACK MONITOR-WITHOUT; DENSO TEN,ASEAN GENERAL SPEC&AUDIO-WITHOUT&BACK MONITOR-WITHOUT; DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)&BACK MONITOR-WITHOUT; DENSO TEN,AUDIO-WITHOUT&BACK MONITOR-WITHOUT; DENSO TEN,OCEANIA GENERAL SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)&BACK MONITOR-WITHOUT; DENSO TEN,OCEANIA GENERAL SPEC&AUDIO-WITHOUT&BACK MONITOR-WITHOUT
DENSO TEN,ASEAN GENERAL SPEC&MLM PACKAGE & ACCESSORY&STEERING WHEEL-MLM(LEATHER &WOOD LIKE)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM); DENSO TEN,ASEAN GENERAL SPEC&MLM PACKAGE & ACCESSORY&STEERING WHEEL-MLM(LEATHER &WOOD LIKE)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-11SPEAKER & JBL&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM); DENSO TEN,CAMBODIA SPEC&MLM PACKAGE & ACCESSORY&STEERING WHEEL-MLM(LEATHER & WOODLIKE)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM); DENSO TEN,CAMBODIA SPEC&MLM PACKAGE & ACCESSORY&STEERING WHEEL-MLM(LEATHER & WOODLIKE)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-11SPEAKER & JBL&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM); DENSO TEN,MLM PACKAGE & ACCESSORY&STEERING WHEEL-MLM(LEATHER & WOOD LIKE)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM); DENSO TEN,MLM PACKAGE & ACCESSORY&STEERING WHEEL-MLM(LEATHER & WOOD LIKE)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-11SPEAKER & JBL&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
DENSO TEN,OCEANIA GENERAL SPEC
PIONEER,CENTRAL AND SOUTH AMERICA SPEC; PIONEER,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT
PIONEER,AUDIO-AVN(8INCH) & *BT; PIONEER,AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH; PIONEER,AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
PIONEER,AUDIO-AVN(8INCH) & *BT
PIONEER,AUDIO-AVN(8INCH) & *BT
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
DENSO TEN,UAE SPEC; DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB&BACK MONITOR-WITH
main86140-0KN41iGGN155,GUN15#..IDNP..H..GCC; TGN156,166..IDNP..L..GCC;GGN155,GUN155..IDNP..S..GCC; TGN156..IDNP..S202108-202208
DENSO TEN,UAE SPEC; DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB&BACK MONITOR-WITH
PIONEER,UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
PIONEER,UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT; PIONEER,AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH; PIONEER,AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
PIONEER,SPEAKER-11SPEAKER & JBL
PIONEER,BRAZIL SPEC&SPEAKER-11SPEAKER & JBL
PIONEER,SPEAKER-11SPEAKER & JBL
DENSO TEN,ASEAN GENERAL SPEC&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT & DIGITAL TV
PIONEER; PIONEER,BRAZIL SPEC
PIONEER,AUDIO-AVN(8INCH) & *BT&SPEAKER-11SPEAKER & JBL
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AFRICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
PIONEER; PIONEER,SPEAKER-11SPEAKER & JBL
PIONEER,BRUNEI SPEC&AUDIO-AVN(8INCH) & *BT
PANASONIC,ASEAN GENERAL SPEC&SPEAKER-11SPEAKER & JBL; PANASONIC,CAMBODIA SPEC&SPEAKER-11SPEAKER & JBL
PIONEER,AUDIO-AVN(8INCH) & *BT; PIONEER,SPEAKER-11SPEAKER & JBL
DENSO TEN,SPEAKER-11SPEAKER & JBL
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(8INCH) & *BT
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(8INCH) & *BT&SPEAKER-11SPEAKER & JBL
DENSO TEN,SPEAKER-11SPEAKER & JBL
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-11SPEAKER & JBL
DENSO TEN,AFRICA SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
ASEAN GENERAL SPEC; ASEAN GENERAL SPEC&SPEAKER-11SPEAKER & JBL; CAMBODIA SPEC; CAMBODIA SPEC&SPEAKER-11SPEAKER & JBL
main90011-25330×2iGUN165..LHD..GEN;GGN155..IDNP..H..GCC;GUN156..IDNP..(ARL,GCC,GEN);TGN156..IDNP..(H,S)..(GCC,GEN);GUN155,TGN166..IDNP..H..(GCC,GEN); TGN156,166..IDNP..L..GCC; TGN156,166..IDNP..L..GCC;GGN155,GUN155..IDNP..S..GCC202108-202208
AFRICA SPEC&AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB&BACK MONITOR-WITH
main90011-25331×2iGUN156,TGN166..RHD..GEN; GUN165..LHD..GEN;GUN156..IDNP..GEN; GUN165..S..PH;GUN165..RHD..GEN;GUN156,166,TGN156..IDNP..(PH,VN); TGN166..H..GEN202108-202208
ASEAN GENERAL SPEC; BRUNEI SPEC; SINGAPORE SPEC
main90011-25334×2iGUN156,TGN166..L..LA; GUN156..H..LA;GUN156,TGN156..BZAGT;TGN166..AGTP..6FC..(H,S);GGN155,GUN165,TGN168..AGTP202111-202210
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
main90011-25325iGUN156,166,TGN166..(6F,6FC)..(L,S)..LA; GUN156..6FC..L..LA;GUN156..AGTP..6F..(H,L);GUN166,TGN156,166..(6F,6FC)..(L,S)..LA202108-202210
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
main90011-25329iGUN155,TGN156,166..IDNP..L..GCC; GUN165,TGN156..IDNP..L..(GCC,GEN);GGN155,GUN155,TGN166..IDNP..(L,S)..(GCC,GEN); TGN156,166..IDNP..L..GCC; TGN156..L..GEN202108-202208
AFRICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); ASEAN GENERAL SPEC&AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET); UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-AVN(8INCH) & *BT&SPEAKER-11SPEAKER & JBL; BRUNEI SPEC&AUDIO-AVN(8INCH) & *BT
main90011-25335×2iGGN155,GUN15#..IDNP..H..GCC; GUN156,TGN156..RHD..GEN; GUN165..IDNP..S..VN;GGN155,GUN15#,TGN156..IDNP..H..(GCC,VN); TGN166..H..GEN; TGN166..IDNP..VN202108-202208
AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH; AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH(*PVM); CENTRAL AND SOUTH AMERICA SPEC; CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
86271DISC, DISC PLAYER
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86807-11074iGUN156,TGN168..L..BZAGT; GUN156..6FC..H..BZAGT; GUN156..6FC..S..BZAGT; TGN168..S202111-202208
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC; BRAZIL SPEC&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
main86807-11075iGUN156,TGN168..L..BZAGT; GUN156..6FC..H..BZAGT; GUN156..6FC..S..BZAGT; TGN168..S202209-202211
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC; BRAZIL SPEC&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
86730AMICROPHONE ASSY, TELEPHONE
main86730-60050iGGN155,GUN156..LHD..THP..H;GUN155,TGN156..THP..(H,S)..GCC; GGN155..THP..S; GUN155,TGN156,166..THP..L; GUN155,TGN156..THP..L;GGN155,GUN165,TGN166..THP..(L,S)..GCC202108-202207
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86730-71040iGUN15#,165,TGN156,166..RHD..IDNP..(ARL,GEN); GUN156,TGN156..RHD..GEN; GUN156..RHD..GEN202108-202209
AUDIO-WITHOUT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
main86808-0K051iGGN155..THP..H;GUN156,166..THP;GUN155,165,TGN156..THP..(H,S); GGN155..THP..S202108-202207
AUDIO-*DA(8INCH) & *BT; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
main86808-0K181iGUN156,TGN166..L..LA; GUN156..H..LA;GUN156,TGN156..BZAGT;TGN166..AGTP..6FC..(H,S);GGN155,GUN165,TGN168..AGTP202111-202210
AUDIO-*DA(8INCH) & *BT
main86808-0K231iGUN165,TGN166..IDNP..S..VN; GUN165..S..(GEN,PH);TGN156..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH);GUN155,TGN166..IDNP..H..(GCC,GEN);GUN156..IDNP..(ARL,GCC,GEN,PH,VN); TGN156,166..IDNP..L..GCC;GGN155,GUN155..IDNP..S..GCC202108-202208
AUDIO-*DA(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
DATA COMMUNICATION MODULE-WITH(G-DCM); FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
DATA COMMUNICATION MODULE-WITH(G-DCM)
86841COMPUTER, NAVIGATION
AUDIO-AVN(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
main86840-0K222iGUN156,TGN168..L..BZAGT; GUN156..6FC..H..BZAGT; GUN156..6FC..S..BZAGT; TGN168..S202111-202210
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC; BRAZIL SPEC&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT; BRUNEI SPEC&AUDIO-AVN(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT; BRUNEI SPEC&AUDIO-AVN(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
86842WIRE, NAVIGATION, NO.1
AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86848ACARD, SERIAL NUMBER MAP UPDATE
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT & DIGITAL TV
main86848-33020iGUN156,TGN168..L..BZAGT; GUN156..6FC..H..BZAGT; GUN156..6FC..S..BZAGT; TGN168..S202111-202211
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC; BRAZIL SPEC&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
86860ANTENNA ASSY, NAVIGATION
main86860-0K040iGUN156..H..LA;GUN156,TGN156..BZAGT;TGN166..AGTP..6FC..(H,S);GGN155,GUN165,TGN168..AGTP202108-202210
DATA COMMUNICATION MODULE-WITH(G-DCM); FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
90153T0001
main90153-T0001
90167T0012
main90167-T0012
9356855014
main93568-55014
13 parts on this diagram · 1 diagram in section
