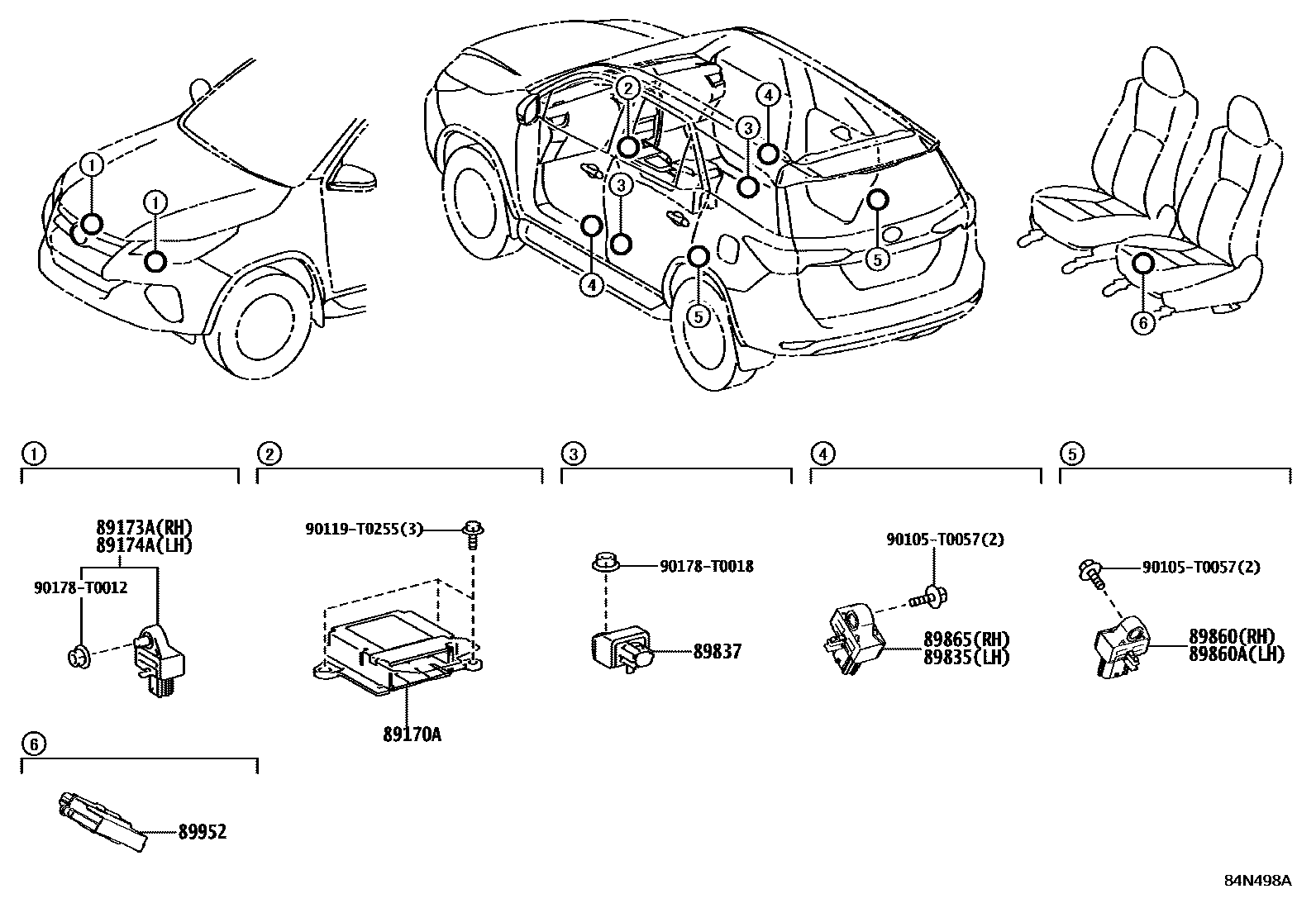

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0K420iLAN155202109-202301

main89170-0K630iGUN15#,16#..RHD..SA202108-202301

main89170-0K640iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main89170-0K650iGUN156,166,TGN166..IND202110-202209

main89170-0KB50iGUN156,TGN156,166..PKN202110

main89170-0KB90iGUN165..RHD..IDNP;TGN156,166..L..GEN;GUN165..IDNP..(PH,VN);GGN155,GUN166..GEN,IDN,PH;GUN15#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

SINGAPORE SPEC

main89170-0KB90iGUN165..RHD..IDNP;TGN156,166..L..GEN;GUN165..IDNP..(PH,VN);GGN155,GUN166..GEN,IDN,PH;GUN15#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

BRUNEI SPEC

main89170-0KB90iGUN165..RHD..IDNP;TGN156,166..L..GEN;GUN165..IDNP..(PH,VN);GGN155,GUN166..GEN,IDN,PH;GUN15#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

CENTRAL AND SOUTH AMERICA SPEC

main89170-0KB90iGUN165..RHD..IDNP;TGN156,166..L..GEN;GUN165..IDNP..(PH,VN);GGN155,GUN166..GEN,IDN,PH;GUN15#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

ASEAN GENERAL SPEC

main89170-0KB90iGUN15#,16#..TH202108-202207

CAMBODIA SPEC

main89170-0KB90iGUN156,165,TGN166..VNP202108-202210

main89170-0KF60iGGN155,GUN156..IDNP..H..GCC202108-202208

SRS AIR BAG-WITH(*DRP)

main89170-0KF60iGGN155,GUN15#,TGN156,166..LHD..(EPT,SA)202108-202304

main89170-0KJ30iGUN156..IDNP..ARL202108-202208

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B20iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202304

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B20iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-0K040iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202301

89837SENSOR, FRONT FLOOR SIDE AIRBAG

main89837-0K010iGUN156..THP..ARL202108-202208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0K070iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202108-202301

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0K070iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202108-202301

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-0K040iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202108-202301

89952COMPUTER, OCCUPANT DETECTION

main89952-71010iGUN156..THP..ARL202108-202208

90105T0057

main90105-T0057

90119T0255

main90119-T0255

90178T0012

main90178-T0012

90178T0018

main90178-T0018

13 parts on this diagram · 1 diagram in section
