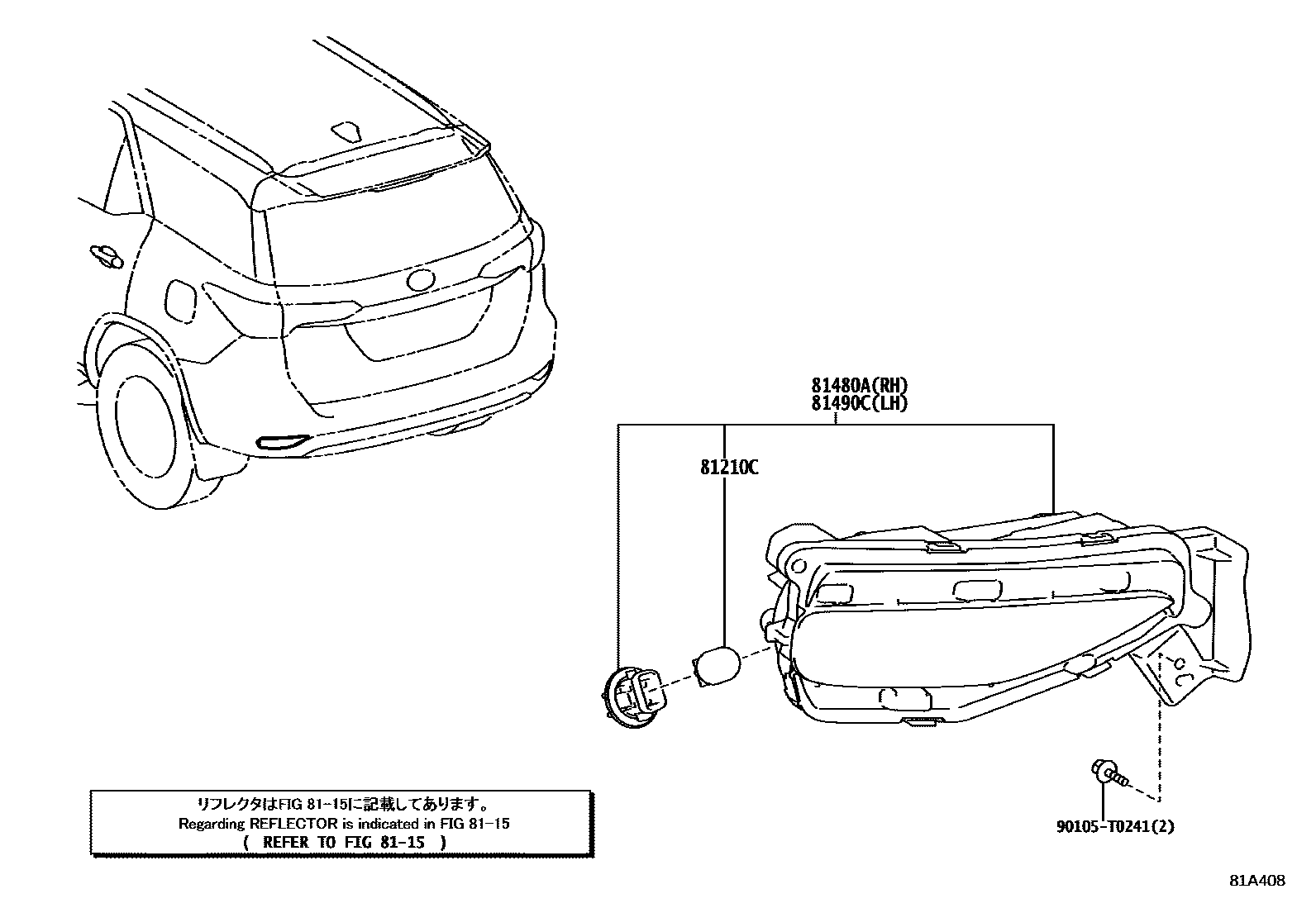

REAR FOG LAMP

0001 1 0002 1

8115

81210CBULB, REAR FOG LAMP

main90981-13043iGUN155..LHD..GEN;GUN165..LHD..IDNP..(GCC,GEN,VN);GGN155,GUN155,TGN166..(IDNP,MAP)..(GCC,MA,VN);GUN156,TGN156..(IDNP,MAP)..6FC..(GCC,GEN,MA,VN)202108-202304

12V 21W

81480ALAMP ASSY, REAR FOG, RH

main81480-0K020iGGN155,GUN15#,16#,TGN156,166..THP..(GCC,GEN,TH)202108-202304

main81480-0K020iGUN156,166,TGN166..IND202110-202209

STANLEY

main81480-0K070iGUN156,165,TGN166..VNP202108-202209

main81480-0K080iGUN156,166,TGN166..IND202110-202209

LUMAX

81490CLAMP ASSY, REAR FOG, LH

main81490-0K020iGGN155,GUN15#,16#,TGN156,166..THP..(GCC,GEN,TH)202108-202304

main81490-0K020iGUN156,166,TGN166..IND202110-202209

STANLEY

main81490-0K070iGGN155,TGN166..IDNP..(GCC,VN);GUN155,165..LHD..IDNP..(GCC,GEN,VN);GUN156,TGN156..IDNP..6FC..(GCC,GEN,VN)202108-202209

main81490-0K080iGUN156,166,TGN166..IND202110-202209

LUMAX

90105T0241

main90105-T0241

5 parts on this diagram · 2 diagrams in section
