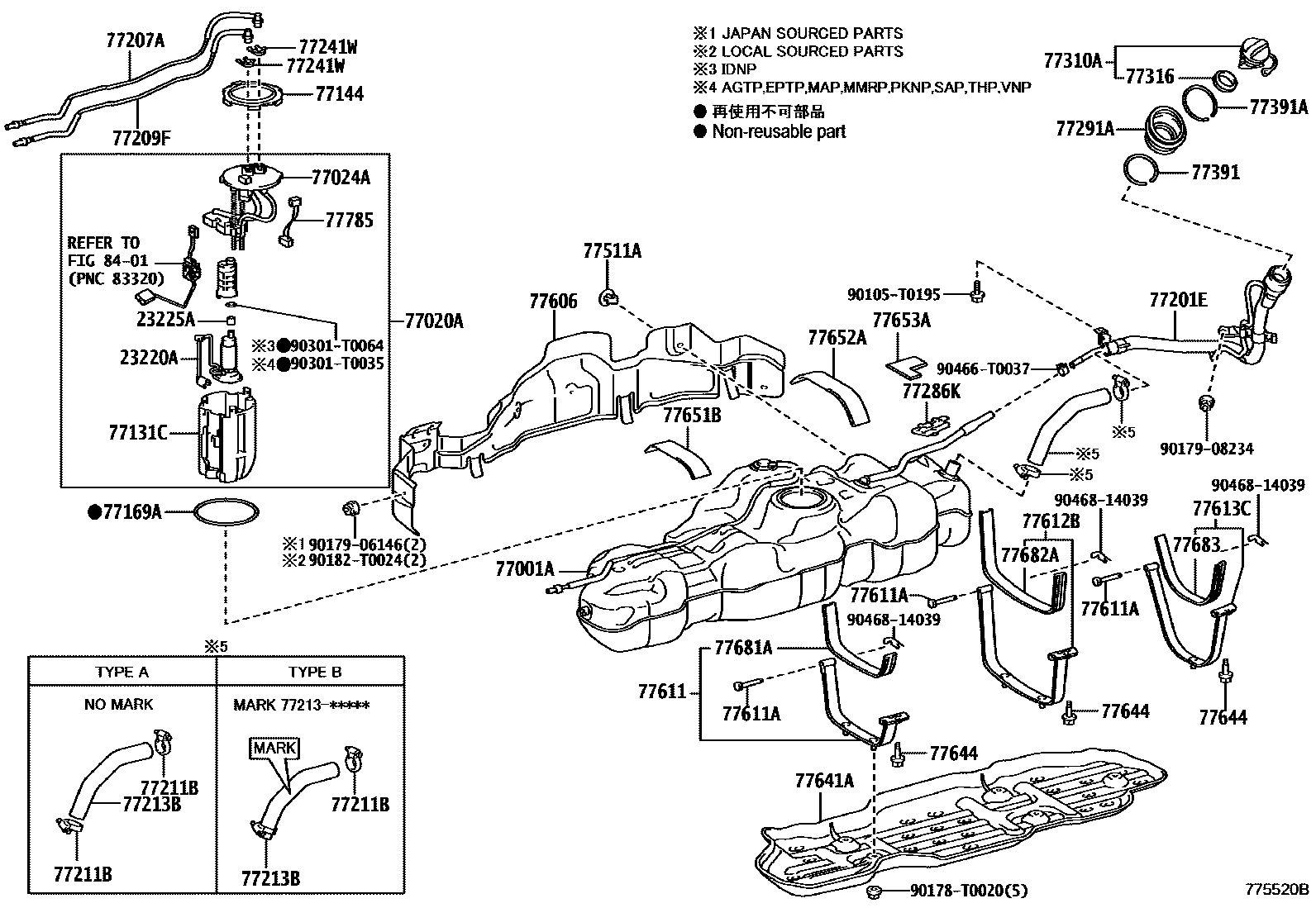

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0C201i2TRFE..TGN156,166..AGTP202108-202210

main23220-0C211i2TRFE..TGN156,166..IDNP202108-202208

main23220-0P200i1GRFE..GGN155..THP202108-202207

main23220-0P210i1GRFE..GGN155..IDNP202108-202208

23225ASPACER, FUEL PUMP

main23225-0V030i1GRFE,2TRFE..GGN155,TGN156,166..THP202108-202207

77001ATANK SUB-ASSY, FUEL

main77001-0K500iTGN166..IND202108-202209

main77001-0K510iGGN155,TGN156,166..EPTP,PKNP,VNP202108-202304

main77001-0K520iGUN15#,16#..IDNP202108-202208

main77001-0K540iGUN15#,16#,LAN155..SA202109-202301

main77001-0K550iGGN155,TGN156,16#..AGTP202111-202210

main77001-0K560iGUN15#,16#..THP202108-202207

main77001-0K580iGUN156,166..IND202110-202209

main77001-0K600iGUN156,16#..AGTP202111-202210

main77001-0K730iTGN156..SA202109-202301

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0K410iGGN155..IDNP202108-202109

main77020-0K411iGGN155..IDNP202109-202208

main77020-0K420iTGN156,166..IDNP202108-202109

main77020-0K421iTGN166..IND202109-202209

main77020-0K430iTGN168202111-202210

main77020-0K470iTGN166..EPT202108-202204

main77020-0K471iTGN156..MA202204-202208

main77020-0K480iGGN155..THP202108-202203

main77020-0K481iGGN155..LA202111-202210

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K160iGUN156,16#..AGTP202108-202210

main77024-0K210iTGN166..IND202108-202209

main77024-0K220iTGN156..MA202108-202208

main77024-0K270iGUN15#,16#..IDNP202108-202208

main77024-0K280iGUN156,166..IND202110-202209

77131CSUB-TANK, FUEL, NO.1

main77131-0K100iGGN155,TGN156,166..MAP,PKNP,THP202108-202203

main77131-0K110iGUN15#,16#..MAP,PKNP,THP202108-202203

main77131-0K120iTGN166..IND202108-202209

main77131-0K140iGUN15#,16#..IDNP202108-202208

main77131-0K150iGUN156,166..IND202110-202209

main77131-0K190iGGN155,TGN156,166..AGTP202109-202210

main77131-0K200iGUN15#,16#,LAN155..SAP,VNP202109

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iGGN155,TGN156,166..THP202108-202207

main77169-0K040iGUN15#,16#,LAN155..PKNP,SAP,VNP202108

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-KK160iGGN155,TGN156,166..IDNP..(GCC,GEN)202108-202208

main77201-KK170iGUN156,166..IND202108-202209

main77201-KK180iTGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

main77201-KK190iGUN15#,16#..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

main77201-KK280iGUN156,16#..AGTP202111-202210

main77201-KK290iTGN166..IND202110-202209

main77201-KK300iTGN168202111-202210

main77201-KK330iGGN155,TGN156,166..AGTP202111-202210

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K080iGUN156,166..IND202110-202209

main77204-0K090iGGN155,TGN156,166..IDNP,MAP202108-202208

main77204-0K110iGUN156,16#..AGTP202108-202210

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K140iGUN156,166..IND202110-202209

main77209-0K150iGGN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

main77209-0K170iGUN15#,16#..THP202108-202207

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

TYPE B:REFER ILLUST.

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

TYPE A:REFER ILLUST.

main77213-KK051iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP; TGN156..L..GEN202108-202208

ASEAN GENERAL SPEC,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.

77241WCLIP, TUBE JOINT

main77241-0K010×2iGGN155,TGN156,16#..AGTP; GUN156,16#..AGTP202108-202210

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K180iGUN156,166,TGN166..IND202108-202209

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0K110iGGN155,GUN15#,16#,LAN155,TGN156,166..EPT,SA202108-202304

main77291-0K120iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

main77291-0K130iGUN156,166,TGN166..IND202110-202209

main77291-0K230iGUN156,TGN156,166..PKN202202

77310ACAP ASSY, FUEL TANK

main77300-0K010iGGN155,TGN156,166..THP202108-202207

main77300-0K020iGUN15#,16#..IDNP,MAP202108-202208

77316GASKET, FUEL TANK CAP

main77316-0K020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77391RING, FUEL INLET BOX

main77391-0K010iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

77391ARING, FUEL INLET BOX

main77391-0K110iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77511ABRACKET, FUEL TANK

main77512-0K010×4iTGN166..IND202108-202209

main77644-0K010×4iTGN156,166..SAP,VNP;GUN15#,16#,LAN155..PKNP,SAP,VNP202108

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0K070iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main77606-0K080iGUN156,166..IND202108-202209

77611BAND, FUEL TANK

main77601-KK060iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×3iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77612BBAND, FUEL TANK, NO.2

main77602-KK040iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

77613CBAND, FUEL TANK, NO.3

main77603-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77641APROTECTOR, FUEL TANK, NO.1

main77641-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

main77641-KK040iGUN156,166,TGN166..IND202109-202209

77644BOLT, FUEL TANK

main77644-35030×3iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

77651BCUSHION, FUEL TANK

main77651-0K050iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main77651-0K060iGGN155,TGN156,166..EPT,PKN202108-202304

main77651-0K120iGUN156,166..IND202110-202209

77652ACUSHION, FUEL TANK, NO.2

main77652-0K060iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main77652-0K070iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

main77652-0K150iGUN156,166..IND202110-202209

77653ACUSHION, FUEL TANK, NO.3

main77653-0K110iTGN166..IND202108-202209

main77653-0K120iGGN155,TGN156,166..EPT,PKN202108-202304

main77653-0K150iGUN156,166..IND202110-202209

77681ASEAT, FUEL TANK BAND

main77681-KK030iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77682ASEAT, FUEL TANK BAND, NO.2

main77682-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

77683SEAT, FUEL TANK BAND, NO.3

main77683-KK020iGUN156,166,TGN166..IND202108-202209

77785HARNESS, FUEL PUMP

main77785-0K070iGGN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

main77785-0K090iGGN155,TGN156,166..IDNP202108-202208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0195

main90105-T0195

90178T0020

main90178-T0020

9017906146

main90179-06146

9017908234

main90179-08234

90182T0024

main90182-T0024

90301T0035

main90301-T0035

90301T0064

main90301-T0064

90466T0037

main90466-T0037

9046814039

main90468-14039

45 parts on this diagram · 9 diagrams in section
