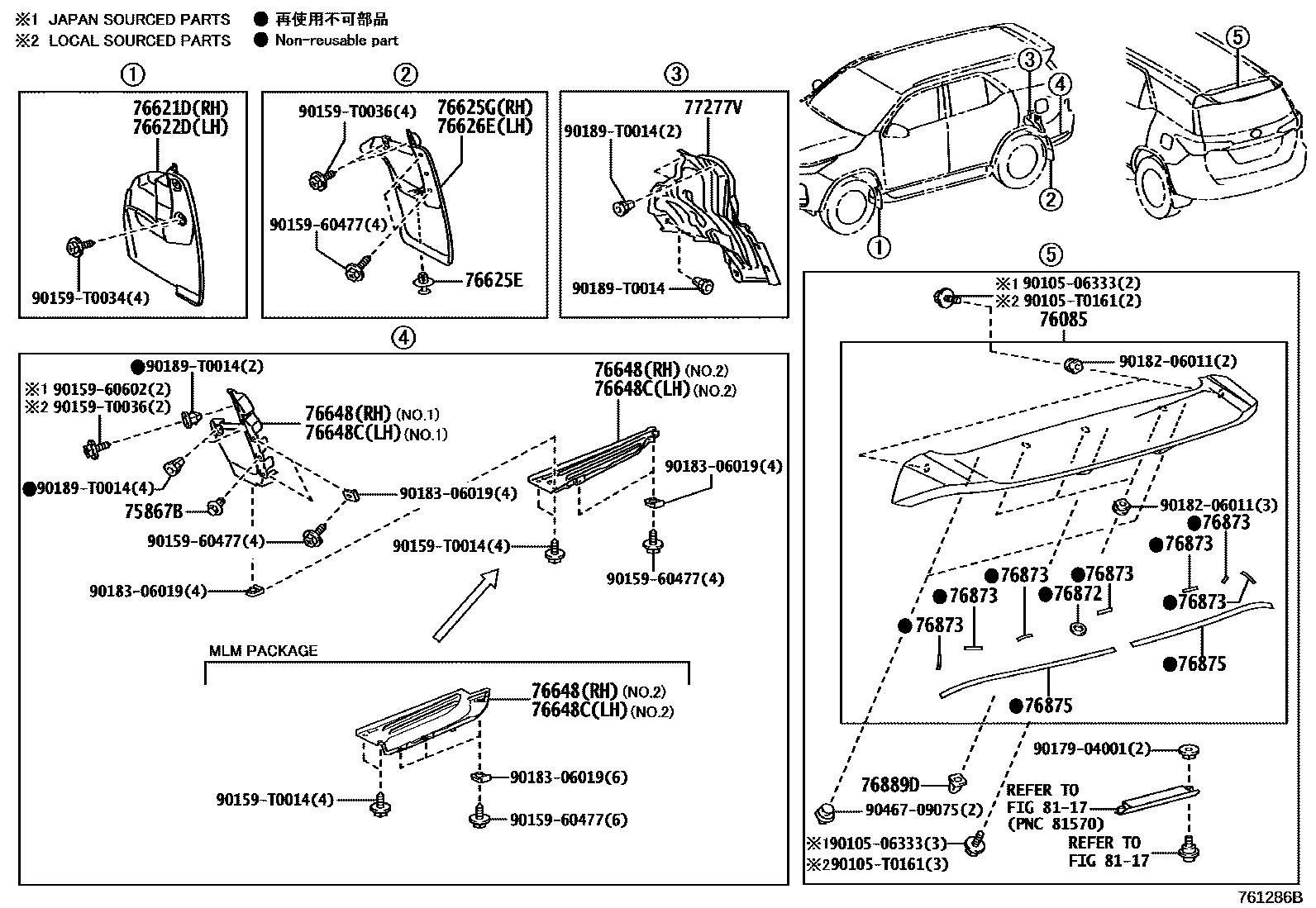

SPOILER & SIDE MUDGUARD
75867BCLIP, ROCKER PANEL MOULDING
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,GR SPORT
76621DMUDGUARD, FRONT FENDER, RH
main76621-0K211iGUN166,TGN156..6FC..(H,S)..LA; TGN156..AGTP..(L,S);GGN155,GUN156,165,TGN16#..AGTP202111-202210
MUD GUARD-WITH(FRONT & REAR)
main76621-0K221iGUN165..IDNP..L..VN; GUN165..IDNP..S..(PH,VN);GUN165..IDNP..(GCC,GEN,IDN);GGN155,GUN15#,166,TGN156,166..IDNP,MAP202108-202208
MUD GUARD-WITH(FRONT & REAR)
76622DMUDGUARD, FRONT FENDER, LH
main76622-0K211iGUN166,TGN156..6FC..(H,S)..LA; TGN156..AGTP..(L,S);GGN155,GUN156,165,TGN16#..AGTP202111-202210
MUD GUARD-WITH(FRONT & REAR)
main76622-0K221iGUN165..IDNP..L..VN; GUN165..IDNP..S..(PH,VN);GUN165..IDNP..(GCC,GEN,IDN);GGN155,GUN15#,166,TGN156,166..IDNP,MAP202108-202208
MUD GUARD-WITH(FRONT & REAR)
76625ECLIP
main75867-33050×2iGUN165..IDNP..L..VN; GUN165..IDNP..S..(PH,VN);GUN165..IDNP..(GCC,GEN,IDN);GGN155,GUN15#,166,TGN156,166..IDNP,MAP202108-202208
MUD GUARD-WITH(FRONT & REAR)
76625GMUDGUARD, QUARTER PANEL, REAR RH
main76625-0K360iGUN166,TGN156..6FC..(H,S)..LA; TGN156..AGTP..(L,S);GGN155,GUN156,165,TGN16#..AGTP202111-202210
MUD GUARD-WITH(FRONT & REAR)
main76625-0K370iGUN165..IDNP..L..VN; GUN165..IDNP..S..(PH,VN);GUN165..IDNP..(GCC,GEN,IDN);GGN155,GUN15#,166,TGN156,166..IDNP202108-202208
MUD GUARD-WITH(FRONT & REAR)
76626EMUDGUARD, QUARTER PANEL, REAR LH
main76626-0K360iGUN166,TGN156..6FC..(H,S)..LA; TGN156..AGTP..(L,S);GGN155,GUN156,165,TGN16#..AGTP202111-202210
MUD GUARD-WITH(FRONT & REAR)
main76626-0K370iGUN165..IDNP..L..VN; GUN165..IDNP..S..(PH,VN);GUN165..IDNP..(GCC,GEN,IDN);GGN155,GUN15#,166,TGN156,166..IDNP202108-202208
MUD GUARD-WITH(FRONT & REAR)
76648SUPPORT, REAR BODY MUDGUARD, RH
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
main66251-YP010iGUN15#..LHD..6FC..SA; GUN15#..RHD..6FC..SA; GUN155,165..SA;GUN156..6FC..SA; GUN156,166..RHD..SA; GUN166..6F..SA;GUN156..RHD..SA202109-202301
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2; MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH,NO.2; MLM BASIC PACKAGE&REAR FOG LAMP-WITH,NO.2; MLM PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2; MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH,NO.2; MLM PACKAGE&REAR FOG LAMP-WITH,NO.2; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE,NO.2
76648CSUPPORT, REAR BODY MUDGUARD, LH
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
main66252-YP010iGUN15#..LHD..6FC..SA; GUN15#..RHD..6FC..SA; GUN155,165..SA;GUN156..6FC..SA; GUN156,166..RHD..SA; GUN166..6F..SA;GUN156..RHD..SA202109-202301
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2; MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH,NO.2; MLM BASIC PACKAGE&REAR FOG LAMP-WITH,NO.2; MLM PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2; MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH,NO.2; MLM PACKAGE&REAR FOG LAMP-WITH,NO.2; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE,NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76875PROTECTOR, REAR SPOILER, NO.4
GR SPORT & ACCESSORY
76889DCLIP, REAR SPOILER, NO.2
77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1
8117CENTER STOP LAMP
9010506333
main90105-06333
90105T0161
main90105-T0161
9015960477
main90159-60477
9015960602
main90159-60602
90159T0014
main90159-T0014
90159T0034
main90159-T0034
90159T0036
main90159-T0036
9017904001
main90179-04001
9018206011
main90182-06011
9018306019
main90183-06019
90189T0014
main90189-T0014
9046709075
main90467-09075
27 parts on this diagram · 1 diagram in section
