EPC Data

SEAT & SEAT TRACK

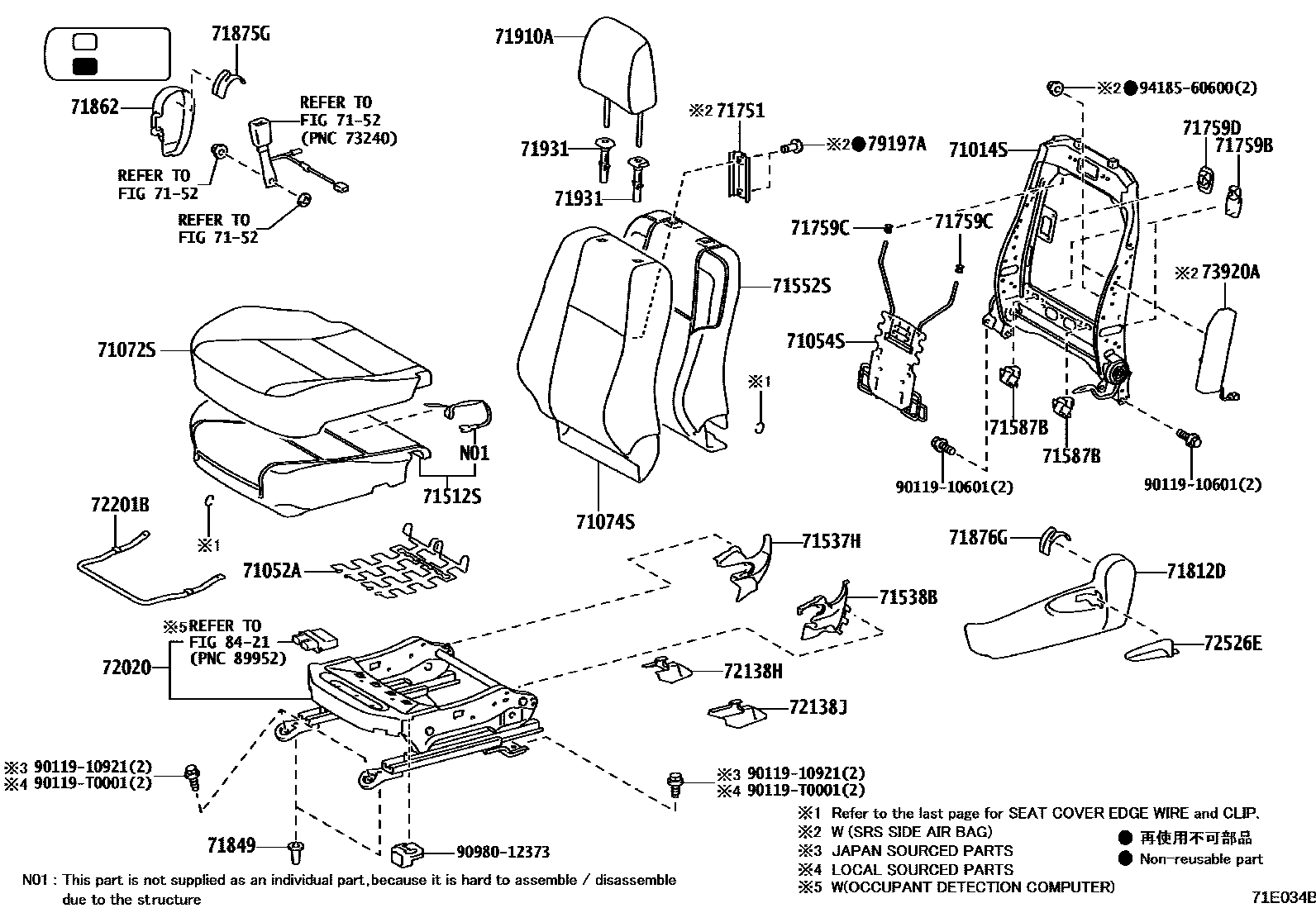

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K120i202108-202208
SEAT COVER MATERIAL-FABLIC(HI)
main71014-0K360supersedes 71014-0K650i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71014-0K430i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP)
main71014-0K480i202109-202301
main71014-0K520i202111-202210
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71014-0K540i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER
main71014-0K650i202108-202304
main71014-0K690i202110-202208
main71014-0K790i202202
main71014-0K830i202202
main71014-0K840i202110-202209
main71014-0K850i202110-202208
main71014-0K870i202205-202209
main71014-0K880i202205-202209
main71014-0KA10i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main71014-0K500i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-02350i202202
main71051-06070i202108-202208
main71051-06090i202205-202209
main71051-0K050i202108-202208
MLM PACKAGE
main71051-0K090i202111-202210
GR SPORT & ACCESSORY
main71051-0K150i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION)
main71051-0K230i202108-202207
main71051-0K130i202111-202210
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71051-0K200i202108-202208
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71051-0K220supersedes 71051-02340i202110-202209
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K010i202108-202208
main71053-0K030i202108
main71053-0K040i202109-202301
main71053-0K050i202111-202210
main71053-0K060i202110-202209
main71053-0K090i202110-202208
main71053-0K100i202205-202209
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0KK10-E6i202108-202208
CHAMOIS,TRIM4#
main71072-0KK30-C0i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71072-0KP30-C0i202203-202304
BLACK,TRIM2#
main71072-0KP40-C0i202203-202304
BLACK,TRIM2#
main71072-0KU40-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KU40-E3i202108-202207
CAHMOIS,TRIM4#
main71072-0KU80-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KU80-E3i202108-202208
CAHMOIS,TRIM4#
main71072-0KU90-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU90-E3i202108-202208
CHAMOIS,TRIM4#
main71072-0KV40-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KV80-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KV90-C0i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KY10-C0i202110-202208
BLACK,TRIM2#
main71072-0KY40-C0i202109-202301
BLACK,TRIM2#
main71072-0KZ30-C0i202202
BLACK,TRIM2#
main71072-0KZ30-E1i202202
CAHMOIS,TRIM4#
main71072-F0270-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK/GRAY,TRIM2#
main71072-F0460-C0i202202
BLACK,TRIM2#
main71072-F0460-E1i202202
CHAMOIS,TRIM4#
main71072-F0580-C0i202110-202208
BLACK,TRIM2#
main71072-F0600-E0i202108-202208
CHAMOIS,TRIM4#
main71072-F0790-C0i202205-202209
BLACK,TRIM2#
main71072-F0800-C0i202205-202209
BLACK,TRIM2#
main71072-F0C50-E1i202108-202207
CHAMOIS,TRIM4#
main71072-F0C60-C1i202108-202207
BLACK/GRAY,TRIM2#
main71072-0KK20-C0i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71072-0KK50-C0i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71072-0KM40-C0supersedes 71072-0KM00-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KV30-C0supersedes 71072-0KM00-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KV60-C0supersedes 71072-0KM00-C0i202109-202301
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KZ40-C0supersedes 71072-F0A90-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KZ40-E1supersedes 71072-F0A90-E1i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),CAHMOIS,TRIM4#
main71072-F0120-C0supersedes 71072-F0100-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-F0290-C0i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),BLACK/GRAY,TRIM2#
main71072-F0290-E0i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),CHAMOIS/IVORY,TRIM4#
main71072-F0300-C0i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71072-F0300-C1i202108-202207
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/GRAY,TRIM0#
main71072-F0300-C2i202108-202207
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/CRIMSON,TRIM3#
main71072-F0300-E0supersedes 71072-F0D00-E2i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS/IVORY,TRIM4#
main71072-F0380-C1i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71072-F0380-C7i202108-202208
MLM PACKAGE&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),BLACK/MAROON,TRIM3#
main71072-F0380-E1i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),CHAMOIS,TRIM4#
main71072-F0390-21i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/MAROON,TRIM3#
main71072-F0390-C1i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION),BLACK,TRIM2#
main71072-F0390-C2i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/GRAY,TRIM0#
main71072-F0390-E1supersedes 71072-F0410-E0i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71072-F0400-E0supersedes 71072-0KK30-E5i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71072-F0560-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0570-C0i202109-202301
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0810-E0supersedes 71072-0KV40-E3i202108-202208
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71072-F0850-C1supersedes 71072-F0480-C0i202110-202209
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK,TRIM2#
sub71072-F0851
main71072-F0850-C6i202110-202209
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/MAROON,TRIM3#
sub71072-F0851
main71072-F0850-E0i202110-202209
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
sub71072-F0851
main71072-F0A40-C1i202111-202210
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK,TRIM2#
main71072-F0A80-C0supersedes 71072-F0A90-C0i202108-202207
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0A80-E1supersedes 71072-F0A90-E1i202108-202207
SEAT HEATER-WITH(DRIVER & PASSENGER),CHAMOIS/CHAMOIS,TRIM4#
main71072-F0C90-E1supersedes 71072-F0C60-E1i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71072-YP330-C0i202110-202208
MLM PACKAGE,BLACK/MAROON/CRIMSON,TRIM3#
main71072-YP360-C0i202205-202209
MLM PACKAGE,BLACK/CRIMSON,TRIM3#
main71072-YP430-C1i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/MAROON,TRIM3#
main71072-YP440-C1i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/MAROON,TRIM3#
main71072-YP450-A3i202111-202210
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71072-YP460-C1i202202
MLM PACKAGE,BLACK,TRIM3#
main71072-YP500-C0i202110-202209
MLM PACKAGE & ACCESSORY,BLACK/CRIMSON,TRIM3#
sub71072-YP501
main71072-YP510-C0i202108-202208
MLM PACKAGE,BLACK/GRAY,TRIM0#
main71072-YP510-C1i202108-202208
MLM PACKAGE,BLACK/CRIMSON,TRIM3#
main71072-YP520-C0i202108-202208
MLM PACKAGE&SRS AIR BAG-WITH(*DRP),BLACK/CRIMSON,TRIM3#
main71072-YP530-A2i202111-202210
MLM PACKAGE & ACCESSORY,FROMAGE,TRIM0#
main71072-YP560-C0i202108-202207
MLM PACKAGE,BLACK/GRAY,TRIM0#
main71072-YP560-C1i202108-202207
MLM PACKAGE & ACCESSORY,BLACK/CRIMSON,TRIM3#
main71072-YP650-C0i202108-202207
GR SPORT & ACCESSORY,BLACK/RED,TRIM2#
main71072-YP670-C0i202302
GR SPORT,BLACK/RED,TRIM2#
main71072-YP680-C0i202111-202210
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP690-C0i202109-202208
GR SPORT,BLACK/RED,TRIM2#
main71072-YP710-C0i202204-202209
GR SPORT & ACCESSORY,BLACK/RED,TRIM2#
sub71072-YP711
main71072-YP760-A0i202111-202210
MLM PACKAGE&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),FROMAGE,TRIM0#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K601-C2i202203-202304
BLACK,TRIM2#
main71074-0K661-L1i202108-202208
CHAMOIS,TRIM4#
main71074-0K671-C2i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK/GRAY,TRIM2#
main71074-0K681-C2i202108-202208
BLACK/GRAY,TRIM2#
main71074-0K681-L3i202108-202208
CAHMOIS,TRIM4#
main71074-0K702-C7i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-0K702-L4i202108-202208
CHAMOIS,TRIM4#
main71074-0KA20-C2i202109-202301
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0KC10-C4i202111-202210
BLACK/GRAY,TRIM2#
main71074-0KC51-C4i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-0KD12-C2i202203-202304
BLACK,TRIM2#
main71074-0KK32-C3i202110-202208
BLACK,TRIM2#
main71074-0KM11-C5i202202
BLACK/GRAY,TRIM2#
main71074-0KM11-E7i202202
CHAMOIS,TRIM4#
main71074-0KN91-C3i202110-202208
BLACK/GRAY,TRIM2#
main71074-0KR40-C3i202202
BLACK/GRAY,TRIM2#
main71074-0KR40-E6i202202
CAHMOIS,TRIM4#
main71074-0KU80-C3supersedes 71074-0KU61-C4i202108-202207
BLACK/GRAY,TRIM2#
main71074-0KU80-E4supersedes 71074-0KU61-E5i202108-202208
CAHMOIS,TRIM4#
main71074-0KV40-E2i202108-202208
CHAMOIS,TRIM4#
main71074-0KV90-C2i202205-202209
BLACK/GRAY,TRIM2#
main71074-0KW01-C5i202205-202209
BLACK/GRAY,TRIM2#
main71074-0KZ30-E2i202108-202207
CHAMOIS,TRIM4#
main71074-0KZ40-C1×4i202108-202207
BLACK/GRAY,TRIM2#
main71074-0KZ90-C4i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK/GRAY,TRIM2#
main71074-0K692-C5i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK/GRAY,TRIM2#
main71074-0KA51-C3supersedes 71074-0KA10-C2i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KA61-C3supersedes 71074-0KA10-C2i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KE20-C1i202111-202210
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-0KQ80-C2supersedes 71074-0KQ61-C3i202111-202210
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KS61-C7i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),BLACK/GRAY,TRIM2#
main71074-0KS61-C8i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),BLACK/CRIMSON,TRIM3#
main71074-0KS61-E5i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),CHAMOIS,TRIM4#
main71074-0KS71-20i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-0KS71-21i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/CRIMSON,TRIM3#
main71074-0KS71-E5supersedes 71074-0KS90-E1i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71074-0KS80-E1supersedes 71074-0K671-L3i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71074-0KU51-C4supersedes 71074-0KU61-C4i202108-202207
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KU51-E5supersedes 71074-0KU61-E5i202108-202207
SEAT HEATER-WITH(DRIVER & PASSENGER),CHAMOIS,TRIM4#
main71074-0KU70-C3supersedes 71074-0KU61-C4i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KU70-E4supersedes 71074-0KU61-E5i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),CAHMOIS,TRIM4#
main71074-0KV11-C3i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KV20-C2i202109-202301
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KW41-C4supersedes 71074-0K651-C3i202110-202209
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK,TRIM2#
main71074-0KW41-C5i202110-202209
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/CRIMSON,TRIM3#
main71074-0KW41-E1i202110-202209
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71074-0KZ70-E1supersedes 71074-0KZ40-E1i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71074-F0020-C1i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),BLACK/GRAY,TRIM2#
main71074-F0020-E1i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP),CHAMOIS,TRIM4#
main71074-F0030-C1i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-F0030-E1supersedes 71074-0KZ90-E1i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71074-YP380-C0i202110-202208
MLM PACKAGE,BLACK/MAROON/CRIMSON,TRIM3#
main71074-YP400-C0i202205-202209
MLM PACKAGE,BLACK/CRIMSON,TRIM3#
main71074-YP410-C0i202110-202209
MLM PACKAGE & ACCESSORY,BLACK/MAROON/CRIMSON,TRIM3#
main71074-YP420-C0i202108-202208
MLM PACKAGE,BLACK/FROMAGE/GRAY,TRIM0#
main71074-YP420-C1i202108-202208
MLM PACKAGE,BLACK/MAROON/CRIMSON,TRIM3#
main71074-YP430-C0i202108-202208
MLM PACKAGE&SRS AIR BAG-WITH(*DRP),BLACK/MAROON/CRIMSON,TRIM3#
main71074-YP470-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/MAROON,TRIM3#
main71074-YP490-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/MAROON,TRIM3#
main71074-YP500-A0i202111-202210
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71074-YP540-C0i202202
MLM PACKAGE,BLACK,TRIM3#
main71074-YP560-C0i202108-202207
MLM PACKAGE,BLACK,TRIM0#
main71074-YP560-C1i202108-202207
MLM PACKAGE,BLACK,TRIM3#
main71074-YP570-C0i202108-202207
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK,TRIM0#
main71074-YP570-C1i202108-202207
MLM PACKAGE&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK,TRIM3#
main71074-YP610-A0i202111-202210
MLM PACKAGE & ACCESSORY,FROMAGE,TRIM0#
main71074-YP660-C0i202108-202207
GR SPORT & ACCESSORY,BLACK/RED,TRIM2#
main71074-YP680-C0i202302
GR SPORT,BLACK/RED,TRIM2#
main71074-YP690-C0i202111-202210
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71074-YP700-C0i202109-202208
GR SPORT,BLACK/RED,TRIM2#
main71074-YP720-C0i202204-202209
GR SPORT & ACCESSORY,BLACK/RED,TRIM2#
main71074-YP770-A0i202111-202210
MLM PACKAGE&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),FROMAGE,TRIM0#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-0K071i202108-202208
SEAT COVER MATERIAL-FABLIC(HI)
main71502-0K091i202109-202301
main71502-0K160i202110-202208
main71502-0K210i202202
main71502-0K281i202108-202207
MLM PACKAGE
main71502-0K311i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER
main71502-0K340i202202
main71502-0K390i202110-202208
main71512-0K141i202108-202208
SRS AIR BAG-WITH(*DRP)
main71512-0K151i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0K261i202111-202210
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71512-0K271i202111-202210
GR SPORT & ACCESSORY
main71512-0K331supersedes 71512-0K811i202108-202208
main71512-0K341i202203-202304
main71512-0K881i202205-202209
main71512-0K891i202205-202209
main71512-0KB10i202108-202207
main71512-0KB20i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71502-0K290i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER
main71502-0K380i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71502-0K410i202108-202208
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71502-0K430supersedes 71502-0K350i202110-202209
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71502-YP020i202108-202207
GR SPORT & ACCESSORY
main71502-YP050i202204-202209
GR SPORT & ACCESSORY
main71512-0K201supersedes 71512-0K191i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71512-0K701i202111-202210
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71512-0K741supersedes 71512-0K731i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP)
main71512-0K761i202108-202207
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71512-YP050i202109-202208
GR SPORT
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02170-C0supersedes 71537-02300-C0i202108-202208
BLACK,TRIM2#,4#
main71537-02200-C0i202109-202301
BLACK,TRIM2#
main71537-02280-C0i202110-202209
BLACK,TRIM2#,4#
main71537-02300-C0i202202
BLACK,TRIM2#,3#,4#
main71537-0D400i202108-202207
main71537-0K030-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#
main71537-0K040-C0supersedes 71537-0K030-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
main71537-0K110-C0i202111-202210
BLACK,TRIM0#,2#
main71537-0K150-C0i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
main71537-0K170-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#
main71537-0K220-C0i202110-202208
BLACK,TRIM2#
main71537-0K230-C0i202110-202208
BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-02110-C0i202109-202301
BLACK,TRIM2#
main71538-02120-C0supersedes 71538-02230-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#
main71538-02210-C0i202110-202209
BLACK,TRIM2#,4#
main71538-02230-C0i202202
BLACK,TRIM2#,3#,4#
main71538-0K010-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#
main71538-0K020-C0supersedes 71538-0K010-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
main71538-0K090-C0i202111-202210
BLACK,TRIM0#,2#
main71538-0K130-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#
main71538-0K180-C0i202110-202208
BLACK,TRIM2#
main71538-0K190-C0i202110-202208
BLACK,TRIM2#
main71538-0K200-C0i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0K230i202203-202304
main71552-0K280i202108-202208
MLM PACKAGE&SRS AIR BAG-WITH(*DRP)
main71552-0K290i202108-202208
MLM PACKAGE
main71552-0K420supersedes 71552-0K410i202109-202301
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K580i202111-202210
GR SPORT & ACCESSORY
main71552-0KA40i202202
main71552-0KB80i202110-202208
main71552-0KD10i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71552-0KE30i202108-202207
main71552-0KE80i202205-202209
main71552-0KJ00i202108-202207
main71552-0KJ10i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main71552-0KJ30i202108-202207
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71552-0KB40i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP)
main71552-0KC80i202111-202210
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71552-0KF10supersedes 71552-0K270i202110-202209
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main71552-0KJ20i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K010×4i202108-202209
main71587-0K030×4i202108-202304
main71587-0K040×4i202109-202301
main71587-0K050×4i202111-202210
main71587-0K060×4i202110-202209
71751HANGER, SEAT COVER
main71751-0K070×2i202108-202301
71759BHOOK, FRONT SEATBACK
main71759-0K140×4i202108-202207
main71759-0K170×4i202108-202208
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K010×4i202108-202208
main71759-0K060×4i202108-202208
main71759-0K080×4i202109-202301
main71759-0K190×4i202110-202209
main71759-0K140×4i202108-202207
GR SPORT & ACCESSORY
71759DHOOK, FRONT SEATBACK, NO.2
main71759-0K040-C0×2i202110-202209
BLACK,TRIM2#,4#
main71759-0K070-C0×2i202108-202207
BLACK,TRIM0#,2#,3#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0D580-C0i202108-202203
BLACK,TRIM4#
main71812-0D590-C0i202108-202203
BLACK,TRIM4#
main71812-0D650-C1i202204-202207
BLACK,TRIM4#
main71812-0D660-C1i202204-202207
BLACK,TRIM4#
main71812-0K050-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#
main71812-0K070-C0i202108-202209
BLACK,TRIM2#
main71812-0K100-C0supersedes 71812-0K120-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#
main71812-0K120-C0supersedes 71812-0D590-C0i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
main71812-0K140-C0i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
main71812-0K150-C0i202109-202301
BLACK,TRIM2#
main71812-0K200-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71812-0K210-C0i202111-202210
BLACK,TRIM0#,2#
main71812-0K240-C0i202202
BLACK,TRIM2#,4#
main71812-0K250-C0i202203-202304
BLACK,TRIM2#
main71812-0K260-C0i202202
BLACK,TRIM2#,4#
main71812-0K350-C0i202108-202208
BLACK,TRIM4#
main71812-0K540-C0i202110-202209
BLACK,TRIM2#,4#
main71812-0K340-C0supersedes 71812-0K050-C0i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71812-0K360-C0i202108-202208
MLM PACKAGE&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,3#
main71812-0K460-C0supersedes 71812-0K450-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K480-C0supersedes 71812-0K450-C0i202109-202301
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0K490-C0supersedes 71812-0K450-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-0K010×2i202108-202209
main71848-47010×2i202108-202209
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0D450-C0i202108-202207
BLACK,TRIM4#
main71862-0K070-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#
main71862-0K080-C0supersedes 71862-0K070-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
main71862-0K140-C0i202109-202301
BLACK,TRIM2#
main71862-0K200-C0i202111-202210
BLACK,TRIM0#,2#
main71862-0K240-C0supersedes 71862-0K250-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#
main71862-0K250-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
main71862-0K320-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#
main71862-0K340-C0i202110-202208
BLACK,TRIM2#
main71862-0K360-C0i202110-202209
BLACK,TRIM2#,4#
main71862-0K380-C0i202110-202208
BLACK,TRIM2#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-0K120-C0supersedes 71875-0K130-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71875-0K130-C0i202202
BLACK,TRIM2#,3#,4#
main71875-0K150-C0i202111-202210
BLACK,TRIM0#,2#
main71875-0K160-C0i202109-202301
BLACK,TRIM2#
main71875-0K180-C0i202108-202208
BLACK,TRIM4#
main71875-0K190-C0i202108-202209
BLACK,TRIM2#
main71875-0K200-C0i202110-202209
BLACK,TRIM2#,4#
main71875-0K280i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main71875-0K290-C0i202110-202208
BLACK,TRIM2#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-0K031-C0supersedes 71876-0K031-C0i202108-202208
BLACK,TRIM0#,2#,3#,4#
main71876-0K041-C0i202110-202209
BLACK,TRIM2#,4#
main71876-0K051-C0supersedes 71876-0K051-C0i202108-202207
BLACK,TRIM0#,2#,3#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-0K120-C0supersedes 71876-0K130-C0i202108-202208
BLACK,TRIM2#,4#
main71876-0K130-C0i202202
BLACK,TRIM2#,3#,4#
main71876-0K150-C0i202111-202210
BLACK,TRIM0#,2#
main71876-0K160-C0i202109-202301
BLACK,TRIM2#
main71876-0K180-C0i202108-202208
BLACK,TRIM4#
main71876-0K190-C0i202108-202208
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71876-0K200-C0i202110-202209
BLACK,TRIM2#,4#
main71876-0K280i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main71876-0K290-C0i202110-202208
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-0KB90-C1×2i202203-202304
BLACK,TRIM2#
main71910-0KC10-C1×2i202203-202304
BLACK,TRIM2#
main71910-0KL70-C0×2i202109-202301
BLACK,TRIM2#
main71910-0KM30-C0×2supersedes 71910-0KM40-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71910-0KM30-E0×2supersedes 71910-0KM40-E0i202108-202208
CAHMOIS,TRIM4#
main71910-0KM70-C0×2i202202
BLACK,TRIM2#
main71910-0KM70-E0×2i202202
CAHMOIS,TRIM4#
main71910-0KM80-C1×2i202202
BLACK/GRAY,TRIM2#
main71910-0KM80-E0×2i202202
CHAMOIS,TRIM4#
main71910-0KN40-E1×2i202108-202207
CHAMOIS,TRIM4#
main71910-0KN50-C1×2i202108-202207
BLACK/GRAY,TRIM2#
main71910-0KN70-C1×2i202108-202207
MLM PACKAGE & ACCESSORY,BLACK/CRIMSON,TRIM3#
main71910-0KN70-C2×2i202108-202207
BLACK/GRAY,TRIM0#,2#
main71910-0KN80-E0×2i202108-202208
CHAMOIS/IVORY,TRIM4#
main71910-0KN90-C0×2i202108-202208
BLACK/GRAY,TRIM2#
main71910-0KN90-E0×2i202108-202208
CAHMOIS/IVORY,TRIM4#
main71910-0KP10-C0×2i202108-202208
MLM PACKAGE,BLACK/CRIMSON,TRIM3#
main71910-0KP10-C1×2supersedes 71910-0KP10-C1i202108-202208
BLACK/GRAY,TRIM0#,2#
main71910-0KP10-E0×2supersedes 71910-0KP00-E0i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS/IVORY,TRIM4#
main71910-0KP20-C0×2i202205-202209
BLACK/GRAY,TRIM2#
main71910-0KP30-C1×2i202205-202209
MLM PACKAGE,BLACK/GRAY,TRIM2#
main71910-0KP70-C1×2i202110-202208
BLACK/GRAY,TRIM2#
main71910-0KP80-C0×2i202110-202208
BLACK/GRAY,TRIM2#
main71910-0KP90-C1×2i202110-202209
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71910-0KP90-E0×2i202110-202209
CHAMOIS/IVORY,TRIM4#
main71910-0KQ30-C0×2i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71910-0KQ40-A0×2i202111-202210
MLM PACKAGE & ACCESSORY&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMARGE/WHITE,TRIM0#
main71910-0KQ40-C0×2i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71910-0KL80-C0×2i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#
main71910-0KL80-C1×2i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71910-YP030-C0×2i202302
GR SPORT,BLACK/GR RED,TRIM2#
main71910-YP050-C0×2i202108-202207
GR SPORT & ACCESSORY,BLACK/GR RED,TRIM2#
main71910-YP070-C0×2i202111-202210
GR SPORT & ACCESSORY,BLACK/GR RED,TRIM2#
main71910-YP080-C0×2i202109-202208
GR SPORT,BLACK/GR RED,TRIM2#
main71910-YP100-C0×2i202204-202209
GR SPORT & ACCESSORY,BLACK/GR RED,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0D140-C1×2i202108-202207
W(LOCK),MLM PACKAGE,BLACK,TRIM0#,2#,3#
main71930-0D140-E2×2i202108-202207
W(LOCK),SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION),CHAMOIS,TRIM4#
main71930-0K050-C1×2i202108-202207
W(LOCK),BLACK,TRIM2#,4#
main71930-47050-C5×2i202111-202210
W(LOCK),MLM PACKAGE,BLACK,TRIM0#,2#
main71931-0D150-C1×2supersedes 71931-0D150-C1i202108-202207
W/O(LOCK),BLACK,TRIM4#
main71931-0K040-C1×2supersedes 71931-0K040-C1i202108-202208
W/O(LOCK),BLACK,TRIM4#
main71931-47030-C4×2i202110-202209
W/O(LOCK),BLACK,TRIM2#,3#,4#
main71930-0D140-C0×2i202108-202207
W(LOCK),GR SPORT & ACCESSORY,BLACK,TRIM2#
main71930-0K050-C0×2i202109-202208
W(LOCK),GR SPORT,BLACK,TRIM2#
main71931-0D150-C0×2i202108-202207
W/O(LOCK),GR SPORT & ACCESSORY,BLACK,TRIM2#
main71931-0K040-C0×2i202109-202208
W/O(LOCK),GR SPORT,BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0K070i202203-202304
main72020-0K080i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main72020-0K110i202108-202208
SEAT COVER MATERIAL-FABLIC(HI)
main72020-0K120i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SRS AIR BAG-WITH(*DRP)
main72020-0K130i202108-202208
SEAT COVER MATERIAL-FABLIC(HI)
main72020-0K140i202109-202301
main72020-0K190i202111-202210
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main72020-0K200i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER
main72020-0K270i202110-202208
main72020-0K320i202202
main72020-0K380i202110-202209
main72020-0K400supersedes 72020-0K410i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main72020-0K420i202110-202208
main72020-0K430i202205-202209
main72020-0K440i202205-202209
main72020-0K160supersedes 72020-0K150i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
72138COVER, SEAT TRACK, OUTER LH
main72125-0D120i202108-202207
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-KK010-C0i202108-202304
BLACK,TRIM2#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0i202108-202208
BLACK,TRIM0#,2#,3#,4#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-02160i202202
main72211-0D160i202108-202208
main72211-0D170i202110-202208
main72211-0D210i202108-202209
main72211-0K200i202108-202207
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06130-C0i202109-202304
BLACK,TRIM2#
main72526-0D260-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#
main72526-0D300-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#
main72526-0D310-C0i202108-202208
BLACK,TRIM4#
main72526-0D360-C0i202108-202207
BLACK,TRIM4#
main72526-0K250-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main72526-0K410-C0i202110-202208
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0K050i202108-202208
MLM PACKAGE
sub73920-0K190
main73920-0K070i202109-202301
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main73920-0K170i202108-202207
main73920-0K210i202108-202207
MLM PACKAGE & ACCESSORY
main73920-0K120supersedes 73920-0K150i202108-202208
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main73920-0K200supersedes 73920-0K190i202110-202209
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
main73920-0K220i202108-202207
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
79197ARIVET
main79197-0K010×4i202108-202301
8421
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600

37 parts on this diagram · 15 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
