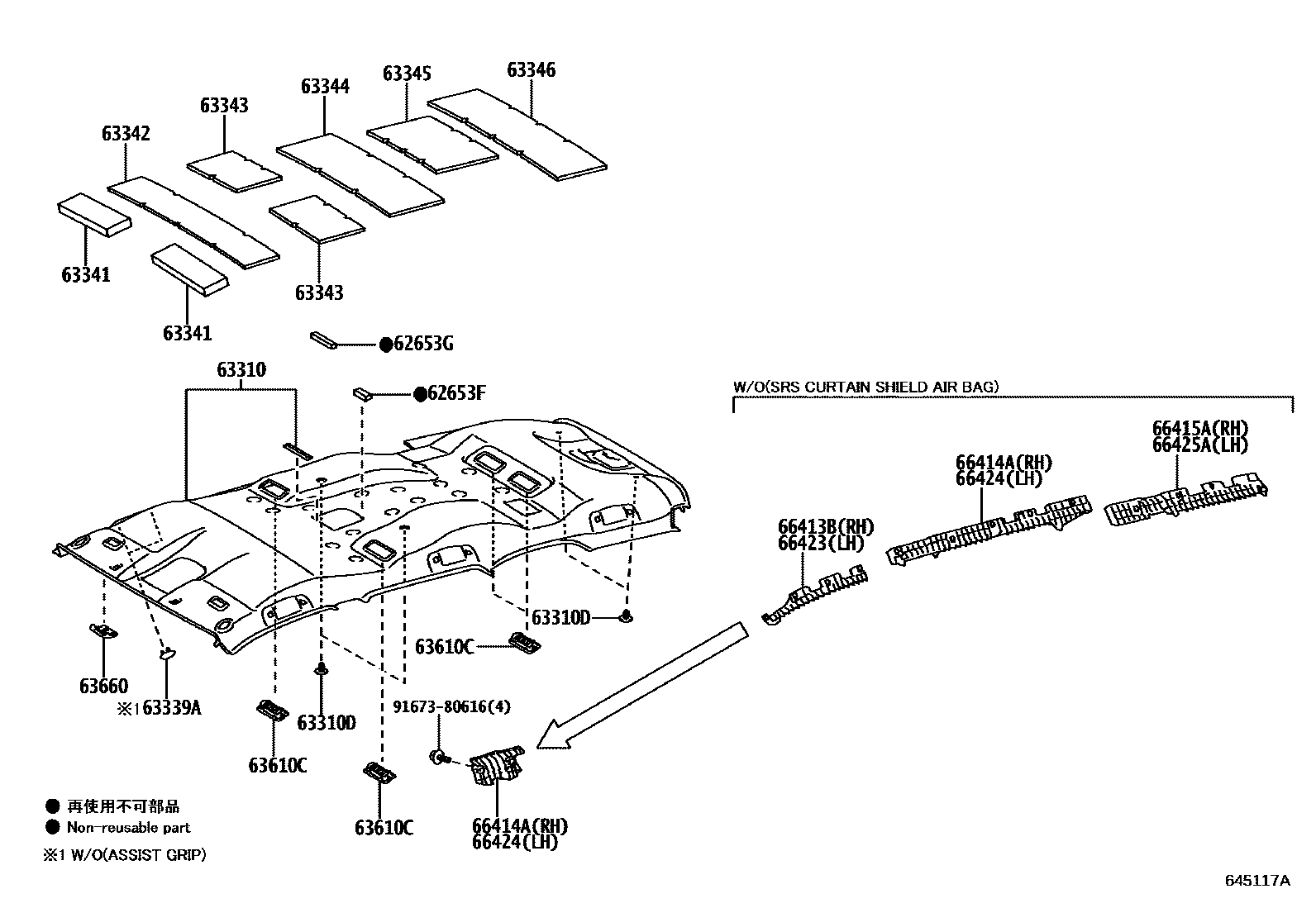

ROOF HEADLINING & SILENCER PAD
62653FPACKING (FOR ROOF HEADLINING)
62653GPACKING,(FOR ROOF HEADLINING)
main62653-0K850iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22,4#
BLACK,TRIM24,3#
LT. GRAY,TRIM2#,4#
main63310-0KC71-B0iGGN155,GUN15#,TGN156,166..IDNP..H..(GCC,GEN); GUN156..IDNP..(PH,VN); GUN166,TGN156..IDN,PH,VN;GUN15#,165,TGN166..H..IDN202108-202208
LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22
LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22,4#
BLACK,TRIM24,3#; BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
main63310-0KF10-B0iGUN15#,165..RHD..SA; GUN15#,LAN155,TGN156..LHD..SA; GUN155,16#..RHD..SA; GUN156..RHD..SA202109-202301
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
main63310-0KJ30-B0supersedes 63310-0KR70-B0iGGN155,GUN165,TGN156,166..H..LA; GUN156..6F..H..BZAGT; GUN156..H..LA202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM22; LT. GRAY,TRIM2#
main63310-0KJ30-C0supersedes 63310-0KR70-C0iGGN155..LA; GUN156..6F..H..BZAGT; GUN156..H..LA202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM0#; ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM0#,24; BLACK,TRIM0#
LT. GRAY,TRIM2#
main63310-0KL10-B0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN155,165,TGN166..IDNP..(L,S)..(IDN,PH,VN); GUN165..RHD..GEN;TGN156,166..L..GEN;GGN155,GUN155,TGN156..IDNP..S..GCC202108-202208
LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
BLACK,TRIM3#
main63310-0KL20-B0supersedes 63310-0KR40-B0iGUN156..AGTP..L;GUN16#..(L,S)..LA; TGN156,166..L..LA202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
BLACK,TRIM3#
LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22
BLACK,TRIM0#,24,3#; BLACK,TRIM0#,3#
main63310-0KY50-B0iGUN155,165,TGN156..THP..L; GUN155,TGN156..THP..S;GGN155,TGN166..THP..(L,S); GUN165..S..TH202108-202207
LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT. GRAY,TRIM2#; AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
main63310-0KE50-B0supersedes 63310-0KE10-B0iGUN156..6F..H..BZAGT; GUN156..6FC..H..BZAGT; TGN168..S202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM22; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
main63310-0KE50-C0supersedes 63310-0KR90-C0iGUN156..6F..H..BZAGT; GUN156..6FC..H..BZAGT202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM0#; ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM0#,24
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM3#; AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT. GRAY,TRIM2#
AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT. GRAY,TRIM2#
AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; LT. GRAY,TRIM22
AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM0#; BLACK,TRIM0#,24
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),BLACK,TRIM3#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGINGMARKET),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(8INCH) & *BT,BLACK,TRIM3#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGINGMARKET),BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM3#
main63310-0KV30-B0iGGN155,GUN155..IDNP..S..GCC; GUN155,TGN156,166..IDNP..L..GCC; TGN156,166..IDNP..L..GCC; TGN156..IDNP..S202108-202208
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM4#; UAE SPEC,LT. GRAY,TRIM2#,4#
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#
main63310-0KV60-B0iGUN155..IDNP..H..GCC;GUN156..LHD..IDNP..(GCC,GEN); GUN156..IDNP..(PH,VN); GUN166..PH202108-202208
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#,4#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM22
main63310-0KV60-C0supersedes 63310-0KC71-C0iGUN156..IDNP..VN; GUN156..LHD..IDNP..GEN; GUN156..PH; GUN166..PH202108-202208
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM0#,3#; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24,3#; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#,4#
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#,4#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(G-DCM),LT. GRAY,TRIM2#,4#
main63310-0KZ00-B0iGGN155..THP..S; GUN155,TGN156..THP..L; GUN155,TGN156..THP..S; TGN166..THP202108-202207
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM4#; UAE SPEC,LT. GRAY,TRIM2#,4#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0×4iGUN15#..IDN,MA;GUN16#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN); GUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN156..IDNP..(PH,VN); TGN156,166..GEN;TGN156..IDNP..S;GUN156..IDNP..(ARL,GCC,GEN);GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
main90467-T0004-C1×4iGUN156..IDNP..VN; GUN156..LHD..IDNP..GEN; GUN156..MA;GUN166..PH; GUN156..PH202108-202208
BLACK,TRIM0#,3#; BLACK,TRIM24; BLACK,TRIM24,3#; BLACK,TRIM3#
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-0D070-B1×2iGGN155,GUN156..THP..H..GCC; GUN155,165,TGN156..THP..L; GUN155,TGN156..THP..S;GGN155,TGN166..THP..(L,S)202108-202207
LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM4#; SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63344PAD, ROOF SILENCER, NO.4
63345PAD, ROOF SILENCER, NO.5
63346PAD, ROOF SILENCER, NO.6
63610CREGISTER ASSY, AIR OUTLET, NO.1
main63610-0K040-B0×4iGUN15#..IDN;GUN16#,TGN156,166..IDNP..(IDN,PH,VN); GUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN156..IDNP..(PH,VN); TGN156,166..GEN;TGN156..IDNP..S;GUN156..IDNP..(ARL,GCC,GEN);GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
BLACK,TRIM0#,3#; BLACK,TRIM24; BLACK,TRIM24,3#; BLACK,TRIM3#
LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22,4#
BLACK,TRIM24,3#; BLACK,TRIM3#
main63610-0K060-B0×4iGUN155,16#..TH; GUN155,165,TGN156..THP..L; GUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC,GEN); GUN156..TH202108-202207
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
BLACK,TRIM24,3#
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
main63359-KK010-B0iGUN156..(L,S)..BZAGT; GUN156..6FC..H..BZAGT; TGN168..L;GUN156,TGN156,166..(L,S)..BZAGT202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT.GRAY,TRIM2#; AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT.GRAY,TRIM2#; LT.GRAY,TRIM22
BLACK,TRIM0#; BLACK,TRIM0#,24
main63359-0K040-B0iGGN155,GUN15#..THP..H..GCC; GUN155,TGN156..THP..L; GUN155,TGN156..THP..S; GUN155..THP..H..GCC;GGN155,GUN156..THP..GCC; GUN156..H..ARL; GUN156..THP..(L,S); TGN166..THP202108-202207
AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM4#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,4#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(G-DCM),LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM2#,4#; UAE SPEC,LT.GRAY,TRIM2#,4#
66413BSPACER, SIDE RAIL, FRONT RH
main66413-KK020iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
66414ASPACER, SIDE RAIL, REAR RH
main66414-KK050iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
66415ASPACER, SIDE RAIL, REAR NO.2 RH
main66415-0K250iGGN155,GUN155,165,TGN156,166..THP..(L,S)..GCC; GGN155,GUN156..THP..H..GCC202108-202207
SRS AIR BAG-WITH(*DRP)
main66415-KK040iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
66423SPACER, SIDE RAIL, FRONT LH
main66423-KK020iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
66424SPACER, SIDE RAIL, REAR LH
main66424-0K180iGGN155,GUN155,165,TGN156,166..THP..(L,S)..GCC; GGN155,GUN156..THP..H..GCC202108-202207
SRS AIR BAG-WITH(*DRP)
main66424-KK050iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66425-KK040iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC; GUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..IDNP..H..GCC202108-202208
SRS AIR BAG-WITH(*DRP)
9167380616
main91673-80616
20 parts on this diagram · 1 diagram in section
