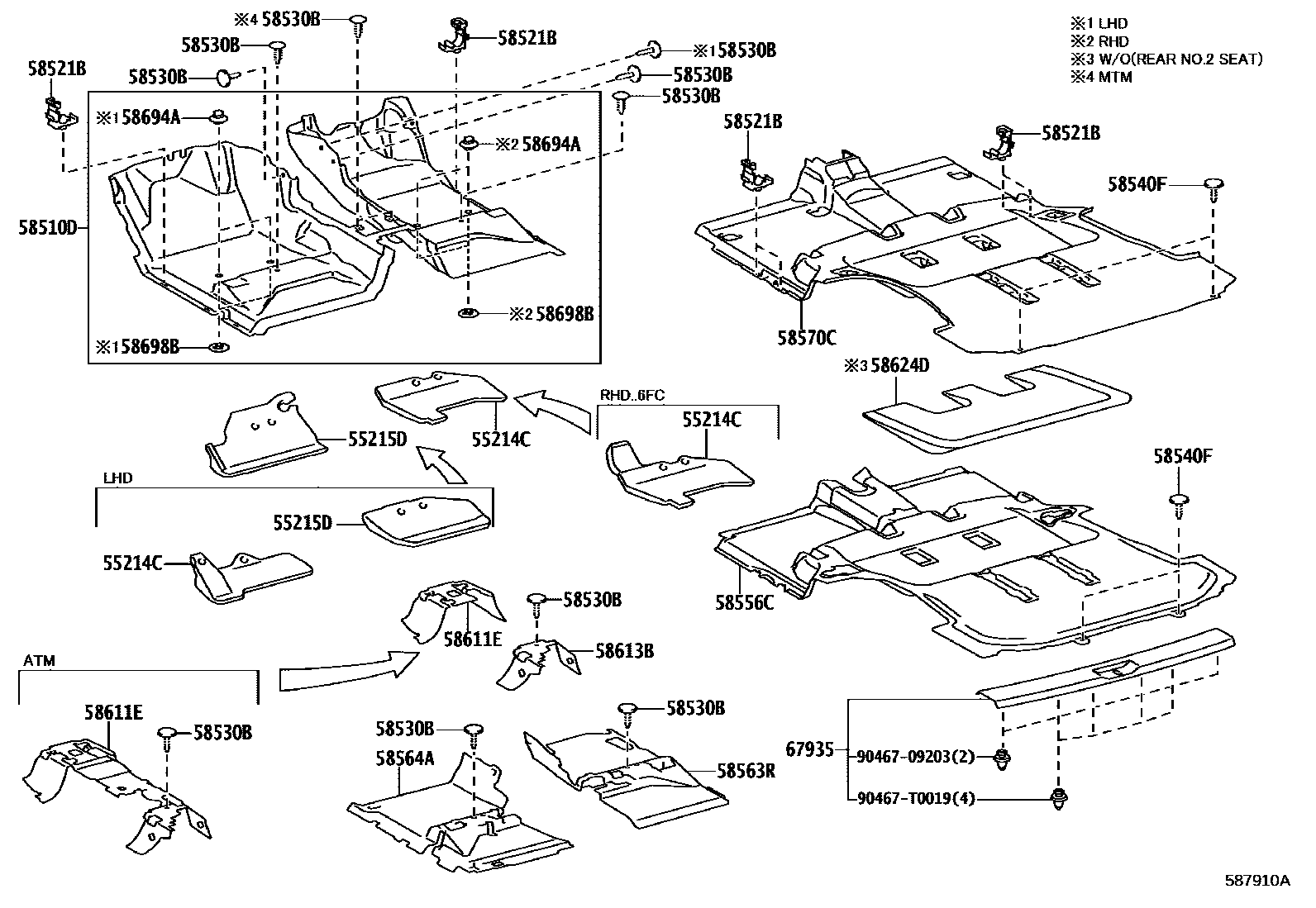

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#; BLACK,TRIM2#
BLACK,TRIM2#,4#; BLACK,TRIM4#
main58500-0K610-C0iGUN155,165,TGN156,166..IDNP..L..GCC; GUN156..IDNP..GCC;GGN155,GUN155,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN); GUN156..LHD..IDNP..GEN202108-202208
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#
main58500-0KD80-C0iGUN156,166..PH; GUN165..IDNP..6FC..(PH,VN);GUN156,TGN156,166..IDNP..VN202108-202208
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
main58510-0KY70-C1iGGN155,GUN156,TGN166..THP..GCC;GUN155,TGN156..THP..(H,S)..GCC; GUN155,165,TGN156..THP..L; GUN156..THP..GEN202108-202207
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-T0031-C0×8iGGN155,GUN156,TGN166..THP..GCC;GUN155,TGN156..THP..(H,S)..GCC; GUN15#,16#..H..TH; GUN155,165,TGN156..THP..L; GUN156..THP..ARL; GUN156..THP..GEN; GUN165..S..TH202108-202207
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58540FCLIP(FOR REAR FLOOR CARPET)
main90467-T0031-C0×4iGUN15#,16#..H..TH; GUN155,165,TGN156..THP..L; GUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC); GUN156..THP..GEN; GUN165..S..TH202108-202207
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58556CSILENCER, REAR FLOOR
REAR NO.2 SEAT-WITHOUT
58563RSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main58570-0K600-C0iGUN15#,16#..H..TH; GUN155,165,TGN156..THP..L; GUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC); GUN156..THP..GEN; GUN165..S..TH202108-202207
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main58570-0K700-C1iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,VN); TGN156,166..GEN;GUN156..RHD..GEN;GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
58611ESHEET, FRONT FLOOR SILENCER
58613BSHEET, FRONT FLOOR SILENCER, CENTER
58624DPAD, CENTER FLOOR SILENCER
REAR NO.2 SEAT-WITHOUT
58694APLATE, MAT SET, UPPER
(L)
main58694-76010×2iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN); GUN156..IDNP..ARL202108-202208
(J)
58698BPLATE, MAT SET, LOWER
(L)
main58698-76010×2iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN); GUN156..IDNP..ARL202108-202208
(J)
67935PLATE, BACK DOOR SCUFF
main67935-0K080-C0iGUN15#,16#..H..TH; GUN155,165,TGN156..THP..L; GUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC); GUN156..THP..GEN; GUN165..S..TH202108-202207
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main67935-KK010-C0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,VN); TGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
9046709203
main90467-09203
90467T0019
main90467-T0019
18 parts on this diagram · 1 diagram in section
