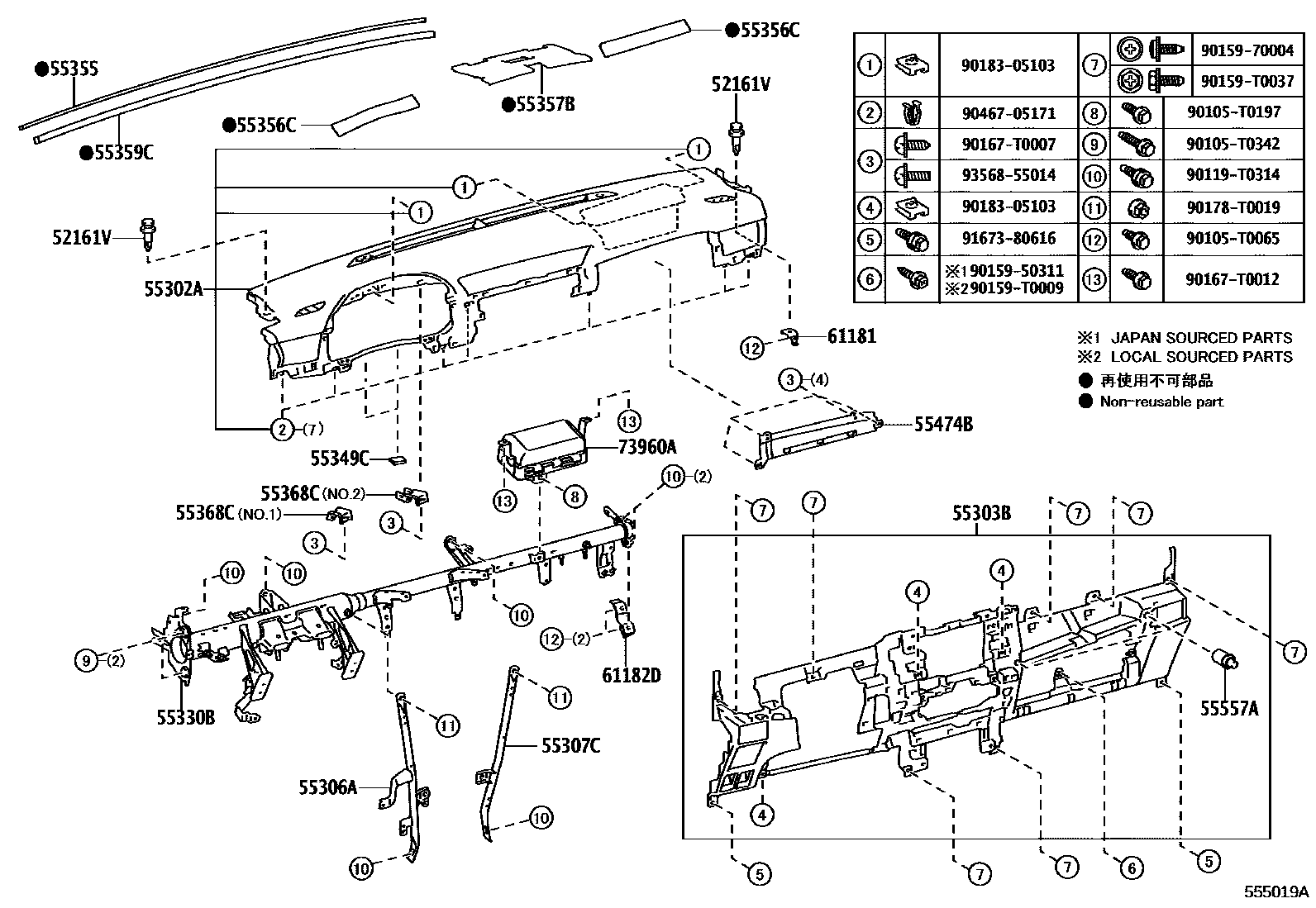

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
(L)
(J)
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
main55302-KK140-C0supersedes 55302-KK220-C0iGGN155,GUN156,TGN166..THP..GCC;GUN155,TGN156..THP..(H,S)..GCC; GUN155,165,TGN156..THP..L; GUN156..THP..GEN202108-202207
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#
main55302-KK220-C0supersedes 55302-KK140-C0iGUN156,TGN156..IDNP..VN; GUN156..PH; GUN166..PH202108-202208
BLACK,TRIM2#,3#; SPEAKER-11SPEAKER & JBL,BLACK,TRIM2#; SPEAKER-11SPEAKER & JBL,BLACK,TRIM2#,3#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#,3#,4#
main55303-KK040-C0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN156,166..PH; GUN156..IDNP..GCC;TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN); GUN156..LHD..IDNP..GEN; GUN165..IDNP..(PH,VN);GUN156,TGN156,166..IDNP..VN202108-202208
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55359CCOSHION, INSTRUMENT PANEL, NO.5
55368CBRACKET, METER MOUNTING
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL
main55474-KK120-C0iGUN15#,165,TGN156,166..RHD..IDNP..(ARL,GEN); GUN156..IDN;GUN155,16#,TGN156,166..IDN,MA202108-202208
BLACK,TRIM2#; BLACK,TRIM2#,4#
main55474-KK130-C0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN); GUN156,166..PH; GUN156..IDNP..GCC;TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN); GUN156..LHD..IDNP..GEN; GUN165..IDNP..(PH,VN);GUN156,TGN156,166..IDNP..VN202108-202208
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
61181BRACKET, INSTRUMENT PANEL SIDE
61182DBRACKET, INSTRUMENT PANEL SIDE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
90105T0065
main90105-T0065
90105T0197
main90105-T0197
90105T0342
main90105-T0342
90119T0314
main90119-T0314
9015950311
main90159-50311
9015970004
main90159-70004
90159T0009
main90159-T0009
90159T0037
main90159-T0037
90167T0007
main90167-T0007
90167T0012
main90167-T0012
90178T0019
main90178-T0019
9018305103
main90183-05103
9046705171
main90467-05171
9167380616
main91673-80616
9356855014
main93568-55014
32 parts on this diagram · 8 diagrams in section
