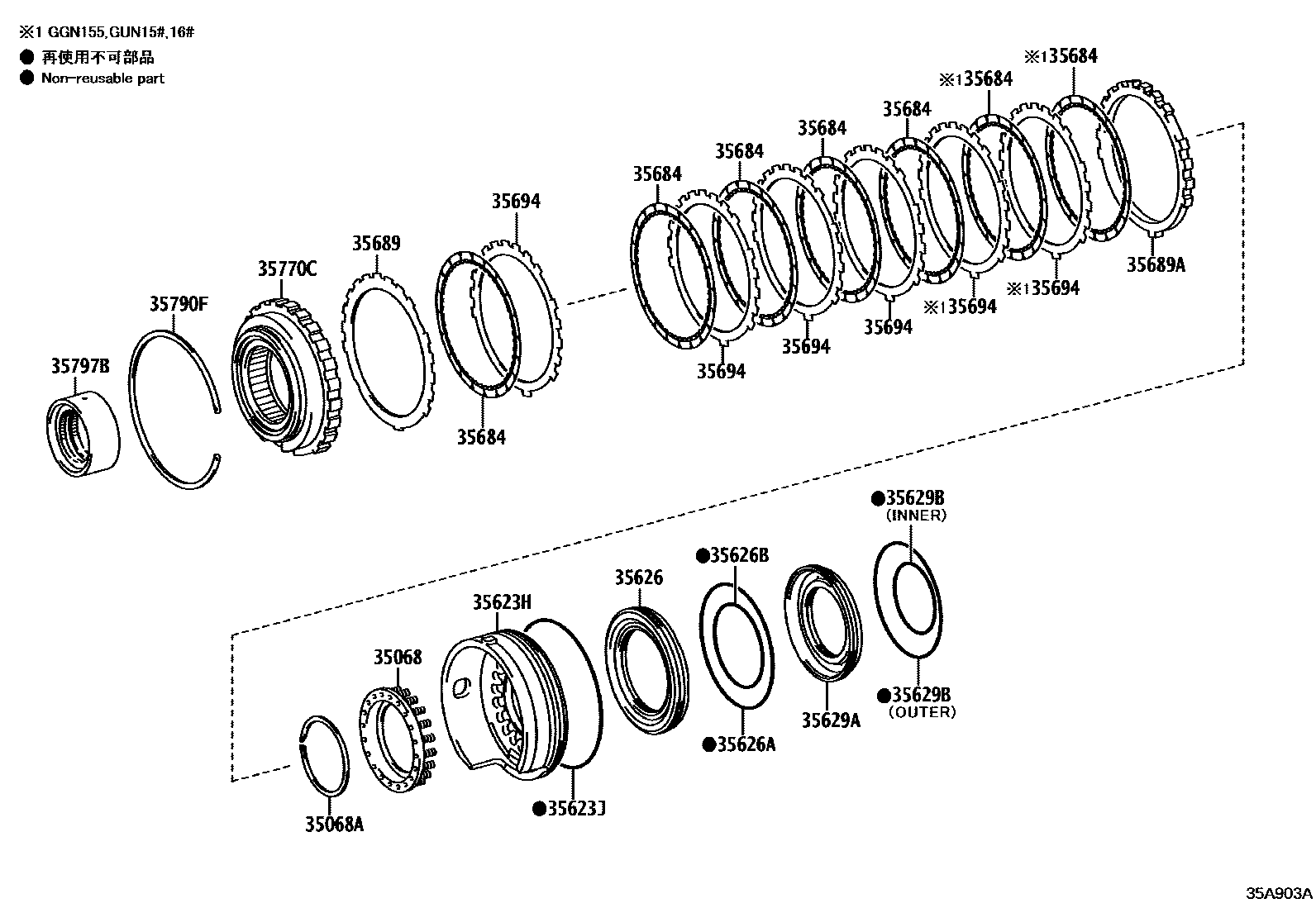

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
main35068-0K010iGUN156,165,TGN166..VNP..6FC202108-202210 (L)
main35068-60010iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202108-202207 (J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623HPISTON, 1ST & REVERSE BRAKE
35623JRING, O (FOR 1ST & REVERSE BRAKE)
main90301-99087iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202108-202207 (J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
main90301-T0072iGUN156,165,TGN166..VNP..6FC202108-202210 (L)
35626SLEEVE, BRAKE REACTION
main35626-50010iGGN155,GUN15#,16#,TGN156,166..THP202108-202207 35626ARING (FOR BRAKE REACTION SLEEVE OUTER)
main90301-99144iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202108-202207 (J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
main90301-T0073iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..6FC202108-202208 (L)
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
main90301-79003iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202108-202207 (J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
main90301-T0074iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..6FC202108-202208 (L)
35629APISTON, BRAKE, NO.4
main35629-50020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207 35629BRING, O (FOR BRAKE PISTON NO.4)
main90301-67006iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202108-202207 (J),INNER; TOYOTA STOP & START SYSTEM-WITHOUT,(J),INNER
main90301-T0075iGGN155,GUN15#,16#,TGN156,166..THP202108-202207 (L),OUTER
main90301-T0076iGGN155,GUN15#,16#,TGN156,166..THP202108-202207 (L),INNER
35684DISC, BRAKE, NO.4
main35684-60030×5iGUN156,166..6FC..IND; TGN166..6FC..IND202108-202209 (J)
35689FLANGE, BRAKE, NO.4
main35689-60270iGGN155,GUN156,16#,TGN156,16#..AGTP..6FC202108-202210 T=1.8,MARK 0
main35689-60280iGGN155,GUN156,16#,TGN156,16#..AGTP..6FC202108-202210 T=1.97,MARK 1
main35689-60290iGGN155,GUN15#,16#,TGN156,166..THP202108-202207 T=2.11,MARK 3
main35689-60300iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..6FC202108-202208 T=2.25,MARK 4
main35689-60310iGUN156,TGN166..(SAP,VNP)..6FC;GUN155,16#,TGN156..(PKNP,SAP,VNP)..6FC202108 T=2.39,MARK 5
main35689-60320iGUN156,166,TGN166..6FC..IND202108-202209 T=2.53,MARK 7
main35689-60340iGGN155,GUN156,16#,TGN156,16#..AGTP..6FC202108-202210 T=2.81,MARK10
main35689-60360iGUN156,166,TGN166..6FC..IND202108-202209 T=3.09,MARK 12
main35689-60370iGGN155,GUN156,16#,TGN156,16#..AGTP..6FC202108-202210 T=3.23,MARK 14
35689AFLANGE, BRAKE, NO.4
main35689-71010iGUN156,166,TGN166..6FC..IND202108-202209 35694PLATE, BRAKE, NO.4
main35694-0K010×4iGGN155,GUN15#,16#..(IDNP,MAP)..6FC; TGN156,166..(IDNP,MAP)..6FC202108-202208 (L)
main35694-60011×6iGGN155,GUN156,16#..AGTP..6FC; TGN156,16#..AGTP..6FC202108-202210 (J)
35770CCLUTCH ASSY, 1WAY NO.3
main35770-0K020iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..6FC202108-202208 (L)
main35770-60030iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202108-202207 (J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)
main90521-99131iGGN155,GUN15#,16#,TGN156,166..THP202108-202207 35797BRACE, 1 WAY CLUTCH, INNER
