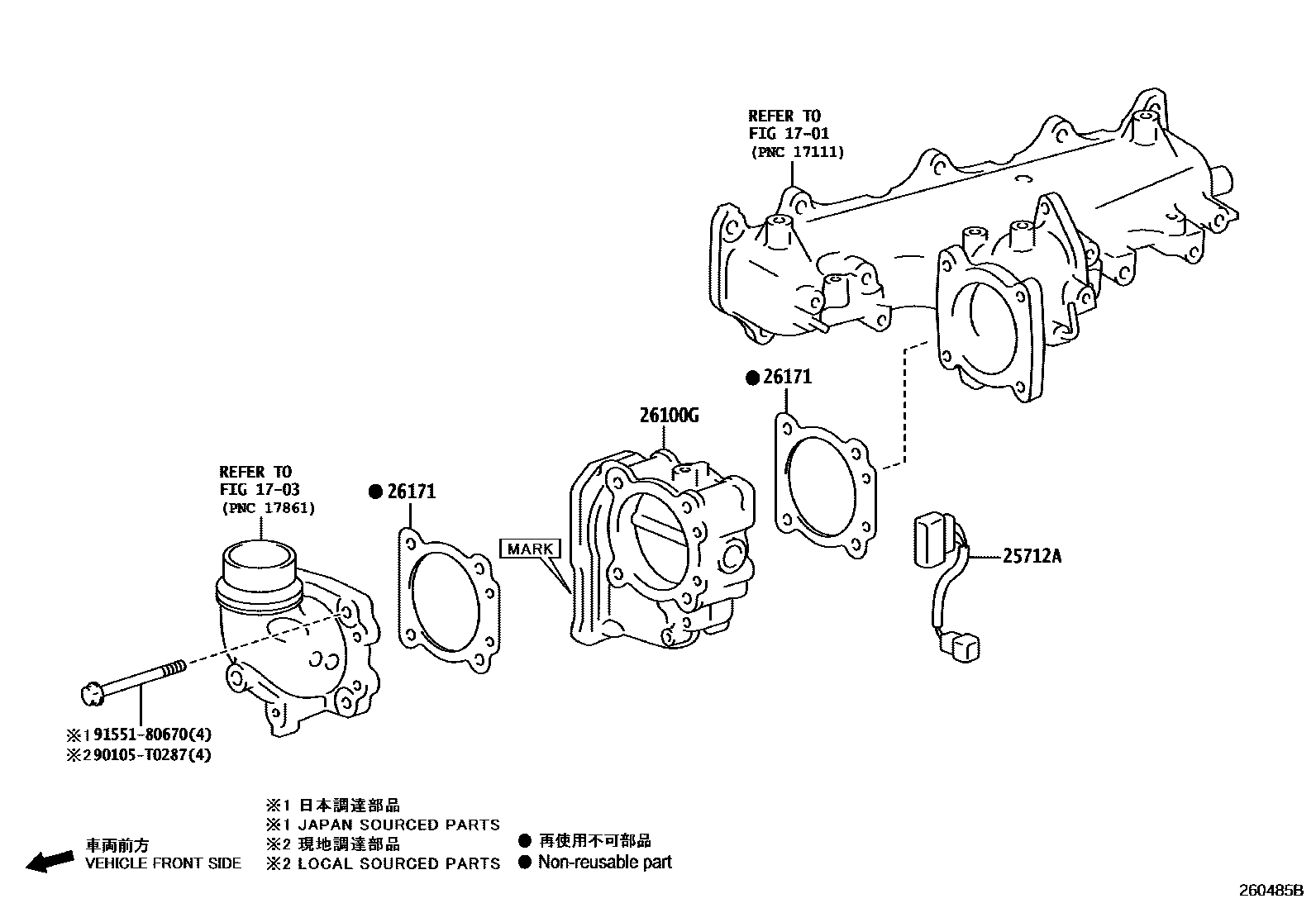

VENTURI

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202207

THA SOURCED PARTS

main25712-0E020i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main25712-11010i2GDFTV..GUN155,165..THP202108-202207

JAPAN SOURCED PARTS

26100VENTURI ASSY

main26100-54300i5LE..LAN155202109-202301

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E050i1GDFTV..GUN156,166..IND202108-202209

MARK=26100-0E050

main26100-0E060i1GDFTV..GUN156..THP..ARL202108-202207

MARK=26100-0E060

main26100-11040i2GDFTV..GUN155,165..THP202108-202207

MARK=26100-11040

main26100-0E040i1GDFTV..GUN156..IND202110-202209

BHUTAN SPEC,MARK=26100-0E040

26171GASKET, VENTURI

main17116-54030i5LE..LAN155202109-202301

main26171-0E030×2i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202207

THA SOURCED PARTS

main26171-0E040×2i1GDFTV..GUN156..THP..ARL202108-202207

IND SOURCED PARTS

main26171-11020×2i2GDFTV..GUN155,165..THP202108-202207

JAPAN SOURCED PARTS

90105T0287

main90105-T0287

9155180670

main91551-80670

8 parts on this diagram · 2 diagrams in section
