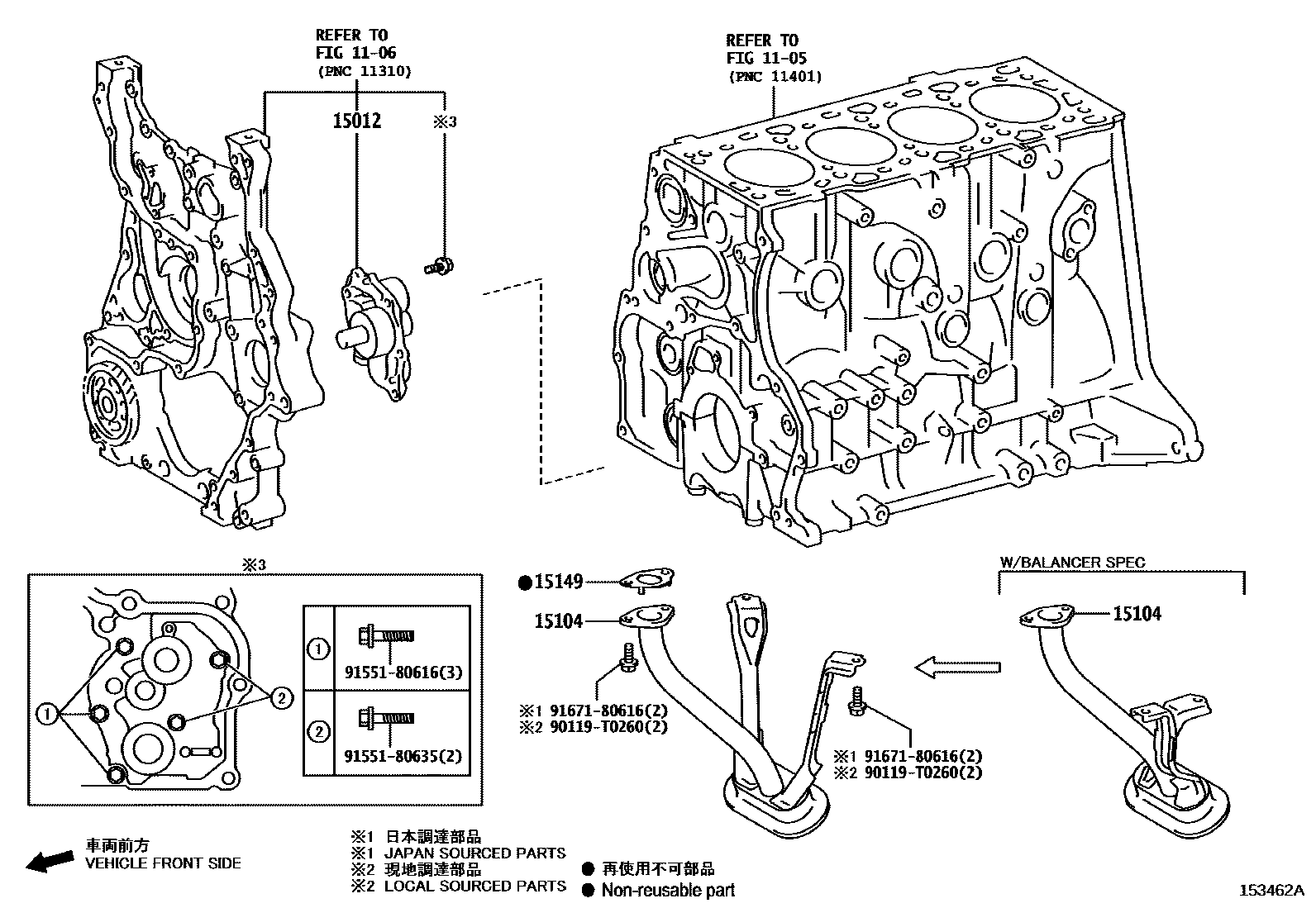

ENGINE OIL PUMP
1105CYLINDER BLOCK
1106TIMING GEAR COVER & REAR END PLATE
15012COVER SUB-ASSY, OIL PUMP
main15012-0E010i2GDFTV..GUN155,165..SA;1GDFTV..GUN156,166..6F..SA;1GDFTV..GUN156..LHD..6FC..SA202108-202301
15104STRAINER SUB-ASSY, OIL
main15104-0E040i1GDFTV..GUN156,166..6F..SA;2GDFTV..GUN155,165..SAP,VNP;1GDFTV..GUN156..LHD..6FC..SA202108-202301
(L)
(J); EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
15149GASKET, OIL STRAINER FLANGE
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
90119T0260
main90119-T0260
9155180616
main91551-80616
9155180635
main91551-80635
9167180616
main91671-80616
9 parts on this diagram · 4 diagrams in section
