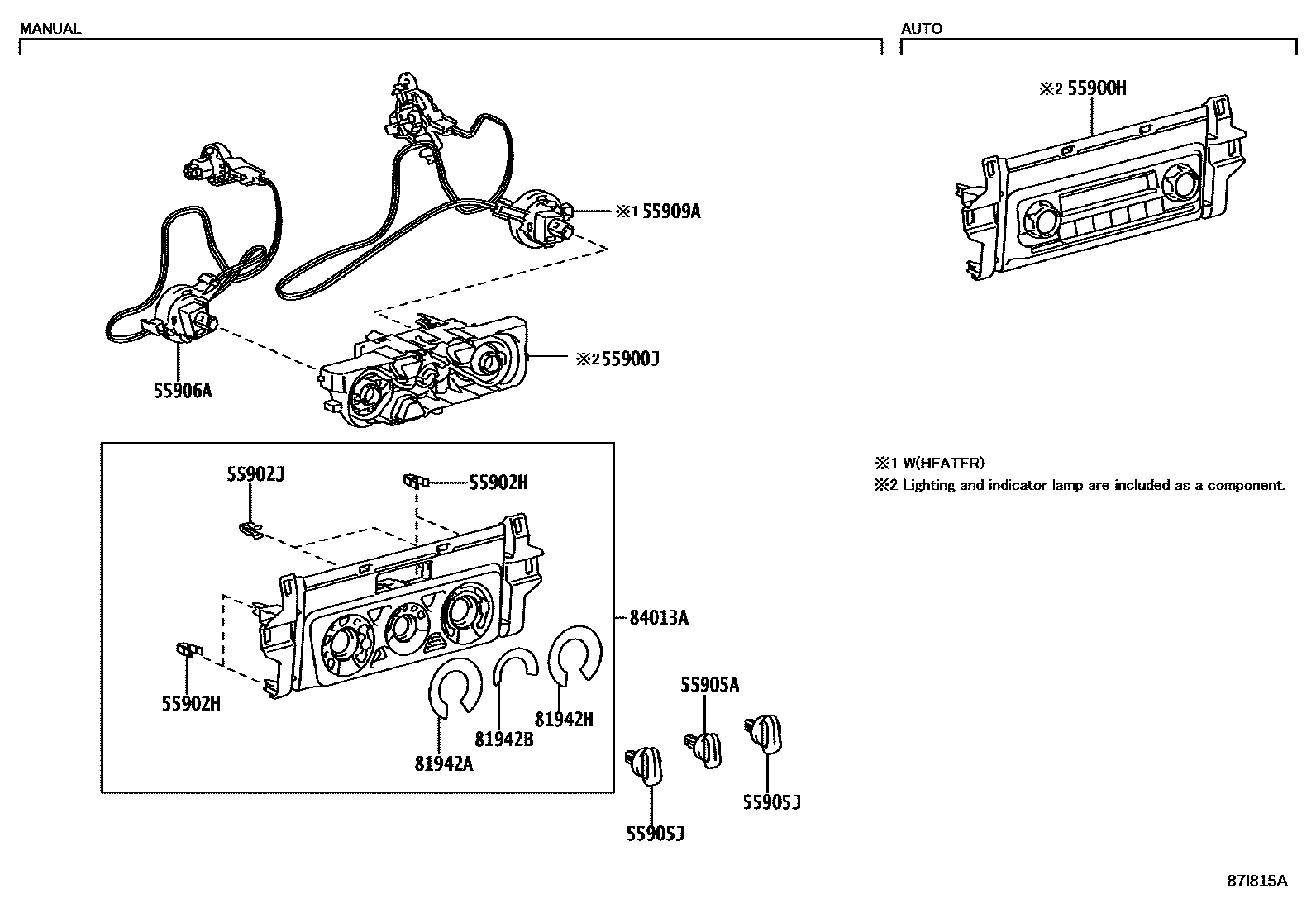

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1ROOF AIR DUCT 0006 1SENSOR 0007 1SENSOR

55900HCONTROL ASSY, AIR CONDITIONER(AUTO)

main55900-0K451iGUN156,16#,TGN156,166..(H,S)..(PH,VN)202007-202204

main55900-0K461iGUN15#,TGN156,166..RHD..GEN202007-202108

main55900-0KB61iGUN156,166,TGN166..IND202101-202109

main55900-0KB81iGGN155,GUN15#,TGN156..LHD..(EPTSU,THSUV)..(H,S)202006-202203

main55900-0KB91iGUN165..LHD..GEN;TGN156..IDNSU..L..GCC202007-202108

FRONT AIR CONDITIONER-AUTO

main55900-0KC01iGUN155,165,TGN166..IDN202008-202108

main55900-0KF11iGUN15#,16#,TGN156,166..(H,S)..(MA,PKN,TH)202006-202201

main55900-0KJ10iGGN155..GEN202007-202108

main55900-0KJ40iGUN156..LHD..SA202009-202109

FRONT AIR CONDITIONER-AUTO

main55900-0KJ90iGUN156..H..ARL;GUN156,166..RHD..SA202006-202109

main55900-0KK90iGUN165,TGN166..L..LA202011-202110

FRONT AIR CONDITIONER-AUTO

55900JCONTROL ASSY, AIR CONDITIONER(MANUAL)

main55900-0KD50iGUN155..MA202101-202110

main55900-0KE70iTGN156..SA;GUN156..(L,S)..ARL;GUN155,TGN156..(SASUV,THSUV)..L;GUN165,LAN155,TGN166..(EPTSU,SASUV,THSUV)..(EPT,GCC,SA)202006-202203

main55900-0KF50iGUN165..L..PH202007-202108

main55900-0KF60iGUN165..L..VN;GUN165..IDNSU..(GCC,GEN);GUN155,TGN156,166..IDNSU..L202007-202204

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-10203iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202204

main90467-T0033iGUN155,165..L..(MA,PH)202007-202110

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90467-10203iGUN165..L..VN;GUN165..GCC,GEN;LAN155,TGN166..EPT,GCC,SA;GUN155,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202204

main90467-T0033iGUN155,165..L..(MA,PH)202007-202110

main90468-08048iGUN155,165..LA,SA;TGN156..(L,S)..(BZAGT,GEN,LA,SA);GUN156,TGN166..(L,S)..(ARL,BZAGT,GEN,LA)202006-202110

55905AKNOB, HEATER CONTROL

main55917-0K050iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202204

55905JKNOB SUB-ASSY, CONTROL

main55905-0K180iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202204

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K060iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202204

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K060iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202204

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-0K050iTGN156..SA;GUN165..L..(PH,VN);GUN156..(L,S)..ARL;GUN165,LAN155..GCC,GEN,SA;GUN155,TGN156,166..L..(EPT,GCC,GEN,MA,SA)202006-202204

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K710iTGN156..SA;GUN165..L..(PH,VN);GUN156..(L,S)..ARL;GUN165,LAN155..GCC,GEN,SA;GUN155,TGN156,166..L..(EPT,GCC,GEN,MA,SA)202006-202204

81942HSHEET, HEATER CONTROL NAME, NO.3

main81943-0K080iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202204

main81943-0K180iGUN155,165..L..(MA,PH)202007-202110

84013APANEL SUB-ASSY, INTEGRATION

main55406-KK100iGUN165..LHD..(GCC,GEN);LAN155,TGN166..EPT,GCC,SA;GUN155,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202203

main55406-KK110iGUN165..L..VN;GUN165..RHD..GEN202007-202204

main55406-KK250iGUN155,165..L..(MA,PH)202007-202110

main55406-KK290iGUN155,165..SA;GUN156..(L,S)..ARL202006-202109

main55406-KK300iGUN156,165..AGTSU..(L,S);TGN156,166..(L,S)..(BZAGT,GEN,LA,SA)202007-202110

12 parts on this diagram · 7 diagrams in section
