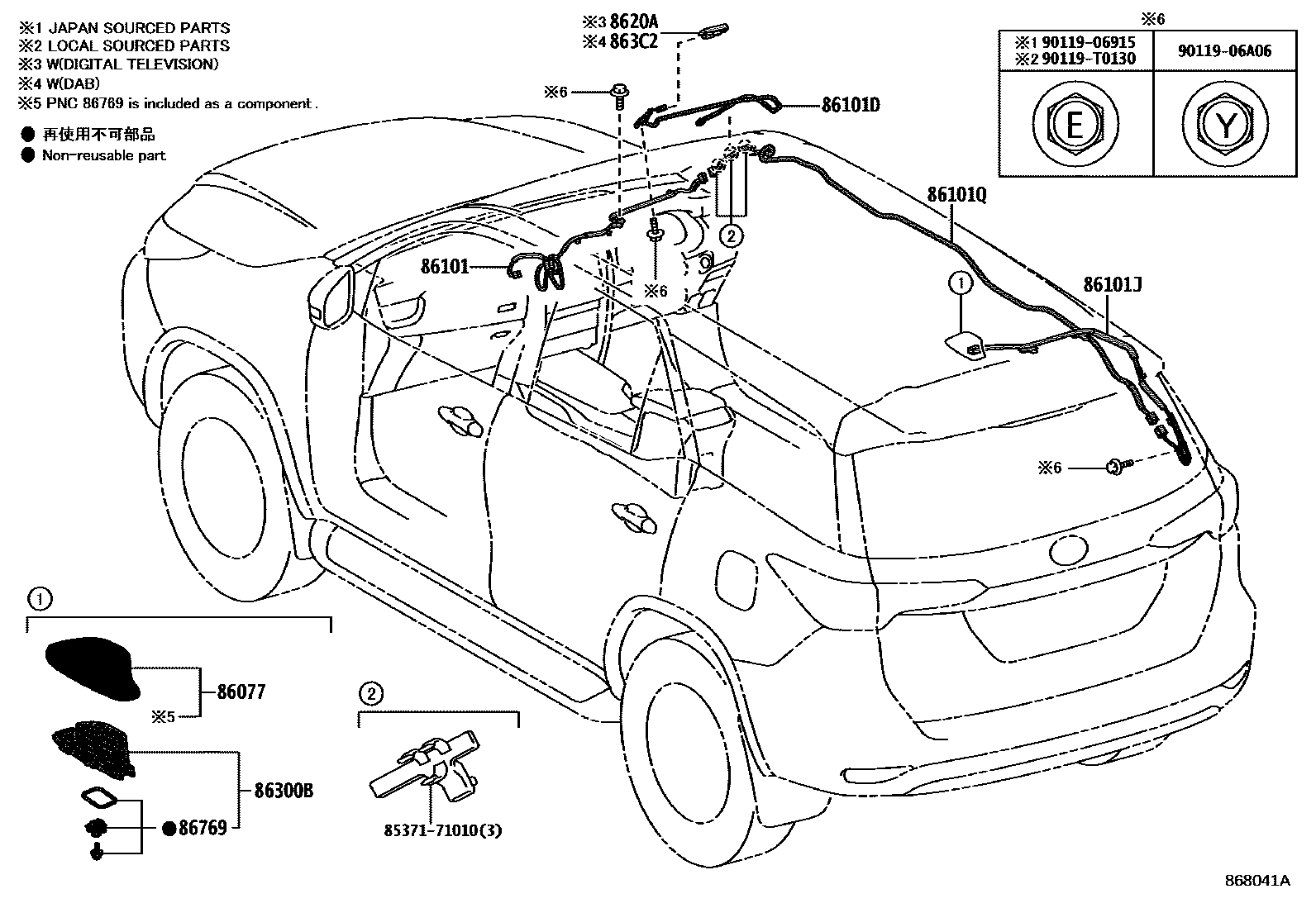

ANTENNA
86077COVER KIT, ANTENNA
main86077-0K010-A1iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202202
SUPER WHITE 2,040
main86077-0K010-A2iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,INDSU,SASUV,THSUV,VNSUV202006-202202
WHITE PEARL CS.,070
SILVER ME.,1D4
main86077-0K010-B1iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,INDSU,SASUV,THSUV,VNSUV202006-202202
SILVER ME.,1D6
MEDIUM SILVER ME.,1F8
main86077-0K010-B3iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,INDSU,SASUV,THSUV,VNSUV202006-202202
GRAY ME.,1G3
ATTITUDE BLACK MC.,218 ,2UE ,2VM
main86077-0K010-C2iTGN166..6FC..LA;GUN156,165,TGN156..GCC,GEN,IDN,IND,LA,PH,VN;GGN155,GUN155,166,TGN166..GCC,GEN,IDN,IND,PH,VN202007-202109
SPARKLING BLACK PEARL CS.,220
EMOTIONAL RED 2,3U5
main86077-0K010-E0iTGN166..6FC..LA;GUN156,165,TGN156..GCC,GEN,IDN,IND,LA,MA,PH,VN;GGN155,GUN155,166,TGN166..GCC,GEN,IDN,IND,MA,PH,VN202007-202109
AVANT-GARDE BRONZE ME.,4V8
main86077-0K010-E1iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202202
PHANTOM BROWN ME.,4W9
BRONZE M.M.,4T3
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
main86101-0K760iGUN156,165,TGN16#..AGTSU..L; GUN156..S..BZAGT;GGN155,GUN156..H..LA;TGN156,166..AGTSU..6FC..(H,S)202011-202110
AUDIO-*DA(8INCH) & *BT
main86101-0K861iGGN155,GUN156,TGN156,166..AGTSU..H; GUN156..H..BZAGT; TGN166..(L,S)..LA;GUN156,165,TGN156,168..AGTSU..L202011-202110
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
main86101-0KF81supersedes 86101-0K851iGGN155,GUN15#..LHD..THSUV..H; GGN155,GUN155,165,TGN156,166..THSUV..(L,S)..GCC202006-202108
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86101-0KJ71iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(L,S)..(GCC,VN);GGN155,GUN155,TGN156,166..LHD..(EPTSU,IDNSU,VNSUV)..(L,S)202007-202204
main86101-0KJ81iGUN165,TGN166..S..VN; GUN165..(IDNSU,VNSUV)..L..(GCC,VN);GGN155,GUN155,TGN156,166..IDNSU..(6F,6FC)..(L,S)..(GCC,GEN); GUN165..LHD..S..(GEN,PH);GUN156..LHD..(IDNSU,SASUV,VNSUV);GUN166,LAN155,TGN156..LHD..(PH,SA,VN);GGN155,GUN155,165..LHD..(EPTSU,IDNSU,VNSUV)..H202007-202204
AUDIO-*DA(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
MLM PACKAGE & ACCESSORY
MLM PACKAGE & ACCESSORY&DATA COMMUNICATION MODULE-WITHOUT
AUDIO-*DA(FOR EMERGING MARKET) & DAB
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-0KB80iGGN155,GUN15#,TGN156,166..THSUV..GCC; GGN155,GUN15#..THSUV..H..GCC; GUN155,TGN156,166..THSUV..L; GUN156..(L,S)..ARL; GUN156..H..ARL202006-202108
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
8620AANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
86300BANTENNA ASSY, AMPLIFIER, NO.1
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
main863C2-0K010iGGN155,GUN15#,TGN156,166..THSUV..GCC; GGN155,GUN15#..THSUV..H..GCC; GUN155,TGN156,166..THSUV..L; GUN156..(L,S)..ARL; GUN156..H..ARL202006-202108
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main863C2-0K020iGGN155,GUN15#,TGN156,166..IDNSU..GCC; GGN155,GUN15#..IDNSU..H..GCC; GUN155,TGN156,166..IDNSU..L..GCC202007-202108
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86769HOUSING, ROOF ANTENNA
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-71010
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130
13 parts on this diagram · 1 diagram in section
