OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1RC61F 0002 1AC60E & AC60F

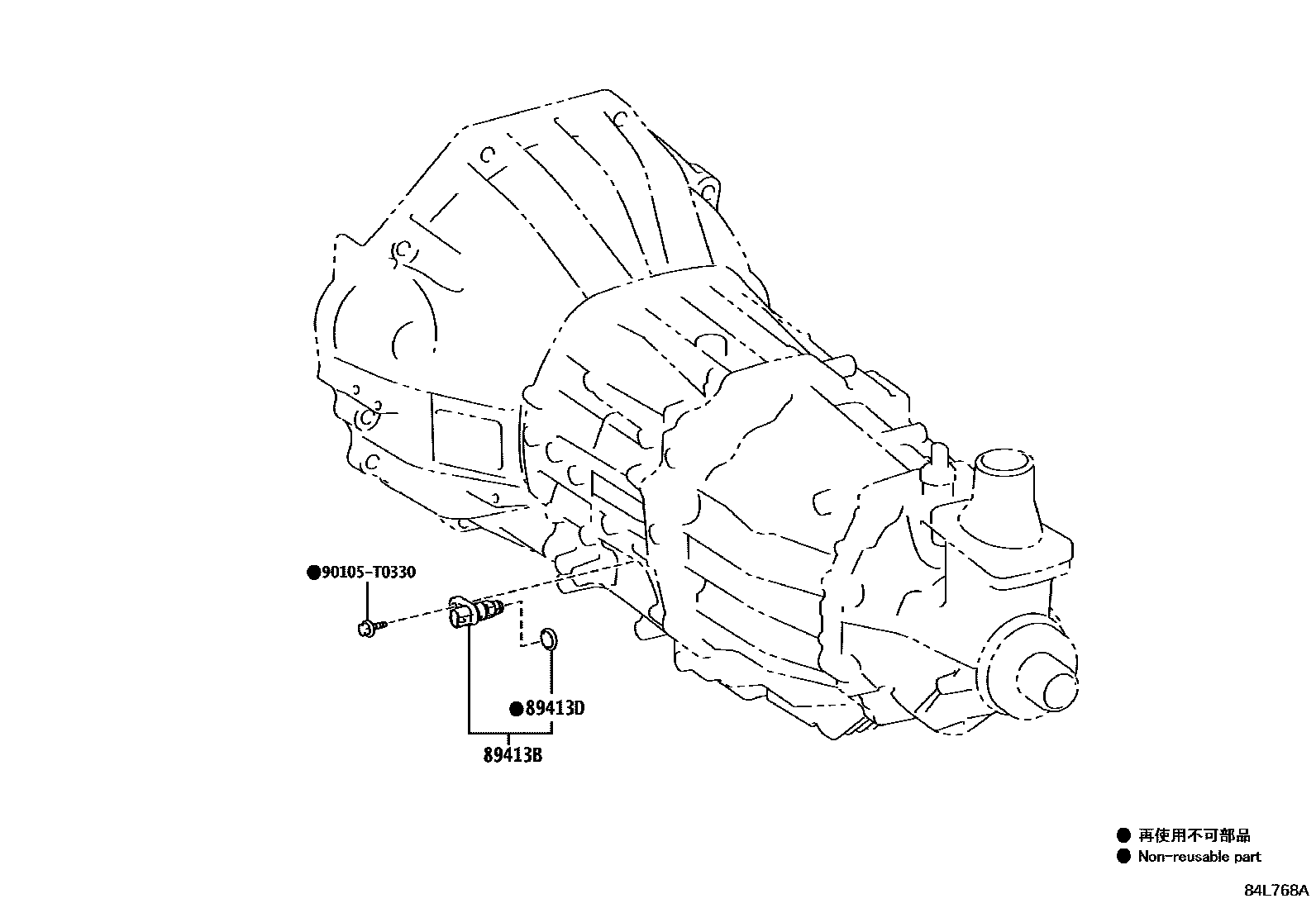

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-28011iGUN156..6F..BZAGT;GUN156,166..RHD..6F202009-202110

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iTGN166..(AGTSU,EPTSU,IDNSU,INDSU,PKNSU)..6FC;GUN156..(AGTSU,IDNSU,INDSU,PKNSU,SASUV,THSUV)..6FC;GGN155,GUN155,16#,TGN156,168..(AGTSU,EPTSU,IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV)..6FC202006-202106

90105T0330

main90105-T0330

3 parts on this diagram · 2 diagrams in section
