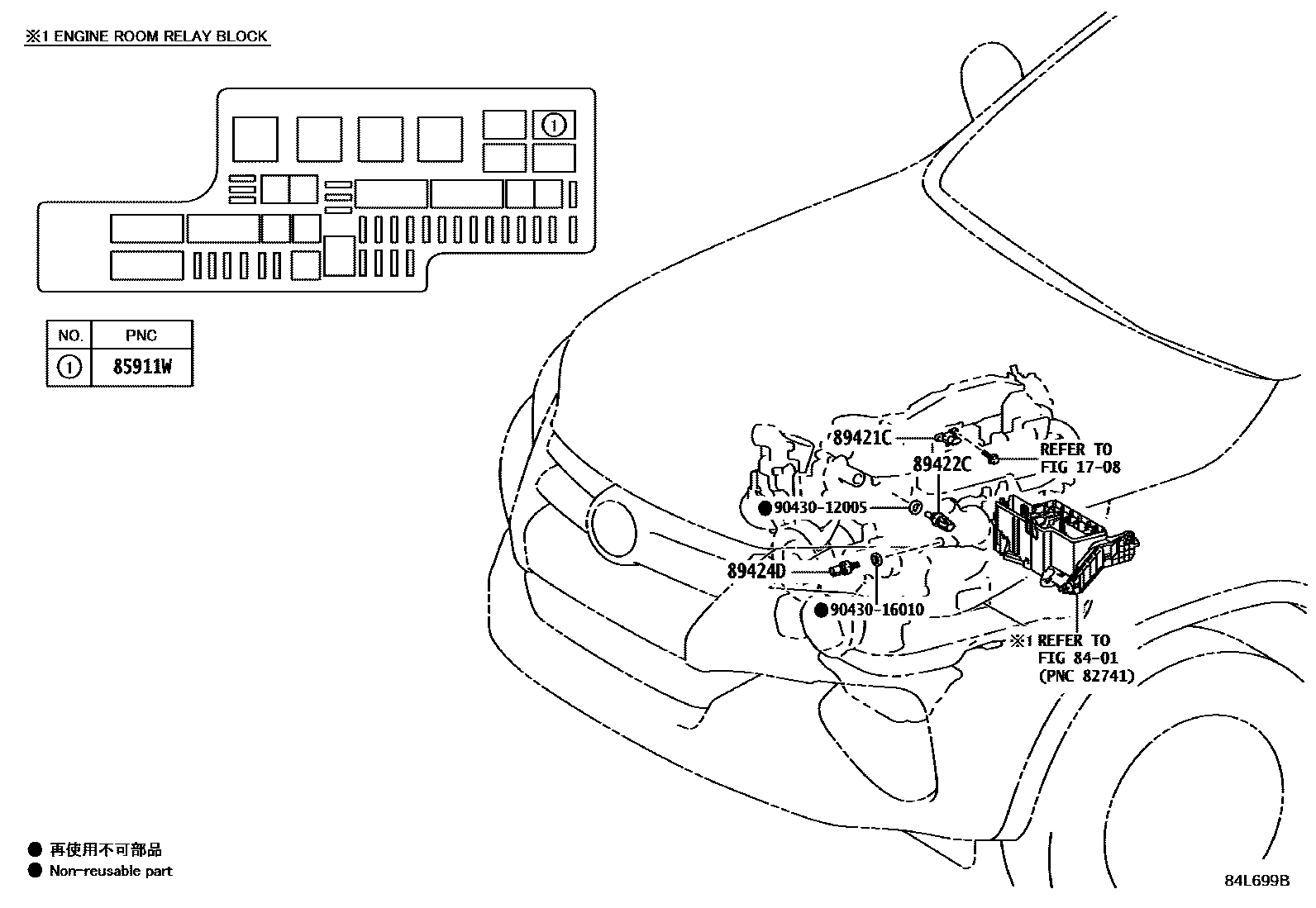

ELECTRONIC CONTROLED DIESEL (ECD)
1708VACUUM PIPING
8401SWITCH & RELAY & COMPUTER
85911WRELAY, ELECTRONIC DRIVER UNIT
(J)
(L)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424DSENSOR, INLET AIR TEMPERATURE
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,INTAKE SIDE; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,INTAKE SIDE; EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,INTERCOOLER SIDE
9043012005
main90430-12005
9043016010
main90430-16010
8 parts on this diagram · 5 diagrams in section
