SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1TRANSMISSION 1/2 0006 1TRANSMISSION 2/2 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 1/2 0012 1COWL 1/2 0013 1COWL 2/2 0014 1COWL 2/2 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1CONSOLE BOX 0018 1STEERING 0019 1SEAT 0020 1DOOR,ROOF,FLOOR & BACK DOOR

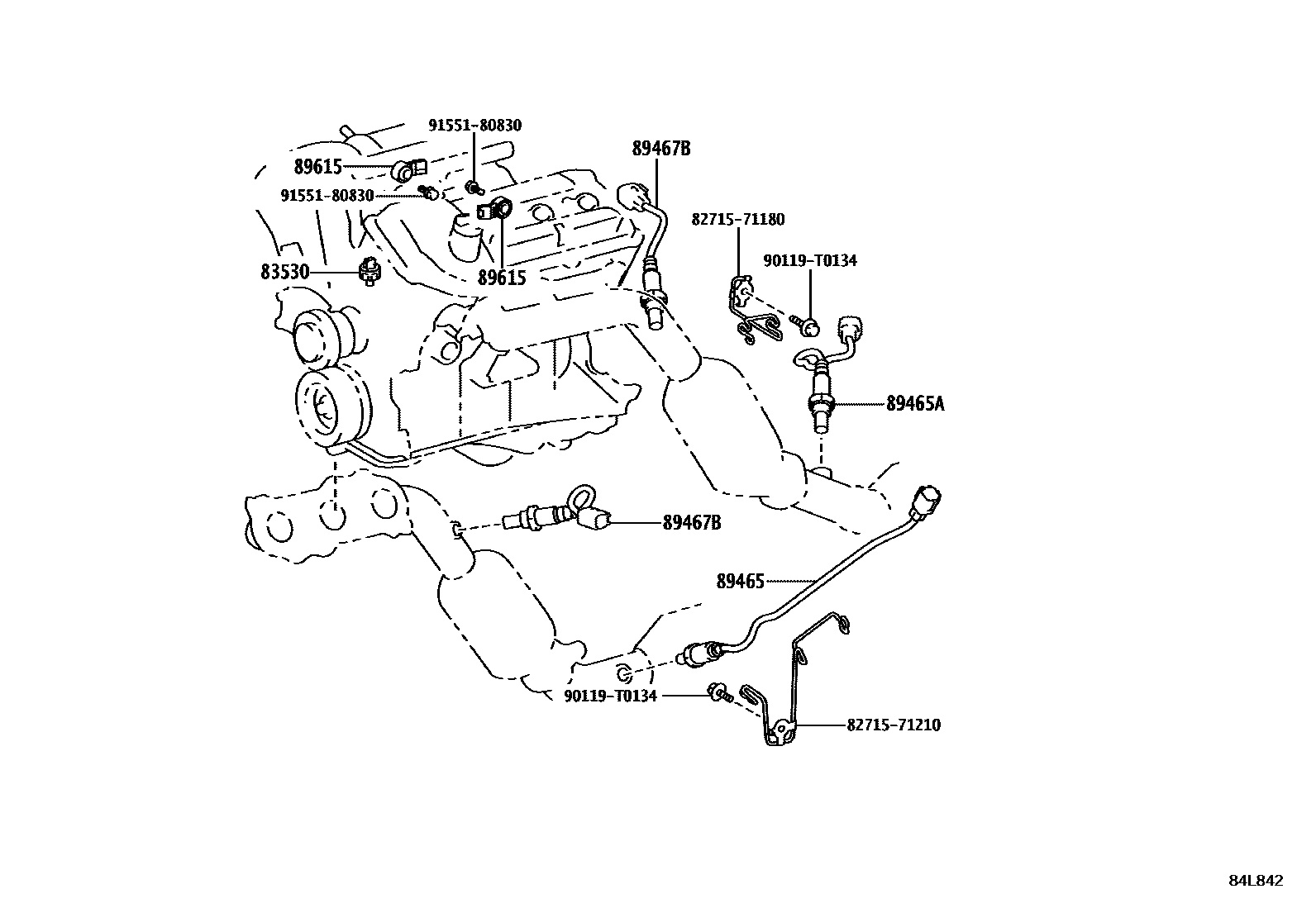

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN156,166..GEN,MA,PKN,SA;GUN155,165..RHD..(IDNSU,MASUV,SASUV)202006-202201

DENSO

main83530-28020iTGN156,166..PKN202006-202204

DENSO

main83530-60010iGUN156,166..GEN,MA,PKN,SA;GUN155,165..RHD..(IDNSU,MASUV,SASUV)202006-202201

YAZAKI

main83530-60020iTGN156,166..PKN202006-202204

YAZAKI

main83530-60030iLAN155202009-202109

DENSO

89465SENSOR, OXYGEN

main89465-0K180iGGN155..LA202006-202203

main89465-0K190iTGN16#..AGTSU202006-202204

main89465-0K200iTGN156..AGTSU202006-202201

89465ASENSOR, OXYGEN NO.2

main89465-0K170iGGN155..LA202006-202203

89467BSENSOR, AIR FUEL RATIO

main89467-71110iGGN155..EPT,GCC,GEN202006-202203

main89467-71120iGUN156,166..ARL,IND;GUN156..(H,S)..BZAGT202006-202110

main89467-71130iTGN156,166..PKN202006-202204

89615SENSOR, KNOCK CONTROL

main89615-20090iTGN156,16#..AGTSU202006-202204

8271571180BRACKET,WIRING HARNESS CLAMP

main82715-71180

8271571210BRACKET,WIRING HARNESS CLAMP

main82715-71210

90119T0134

main90119-T0134

9155180830

main91551-80830

9 parts on this diagram · 20 diagrams in section
