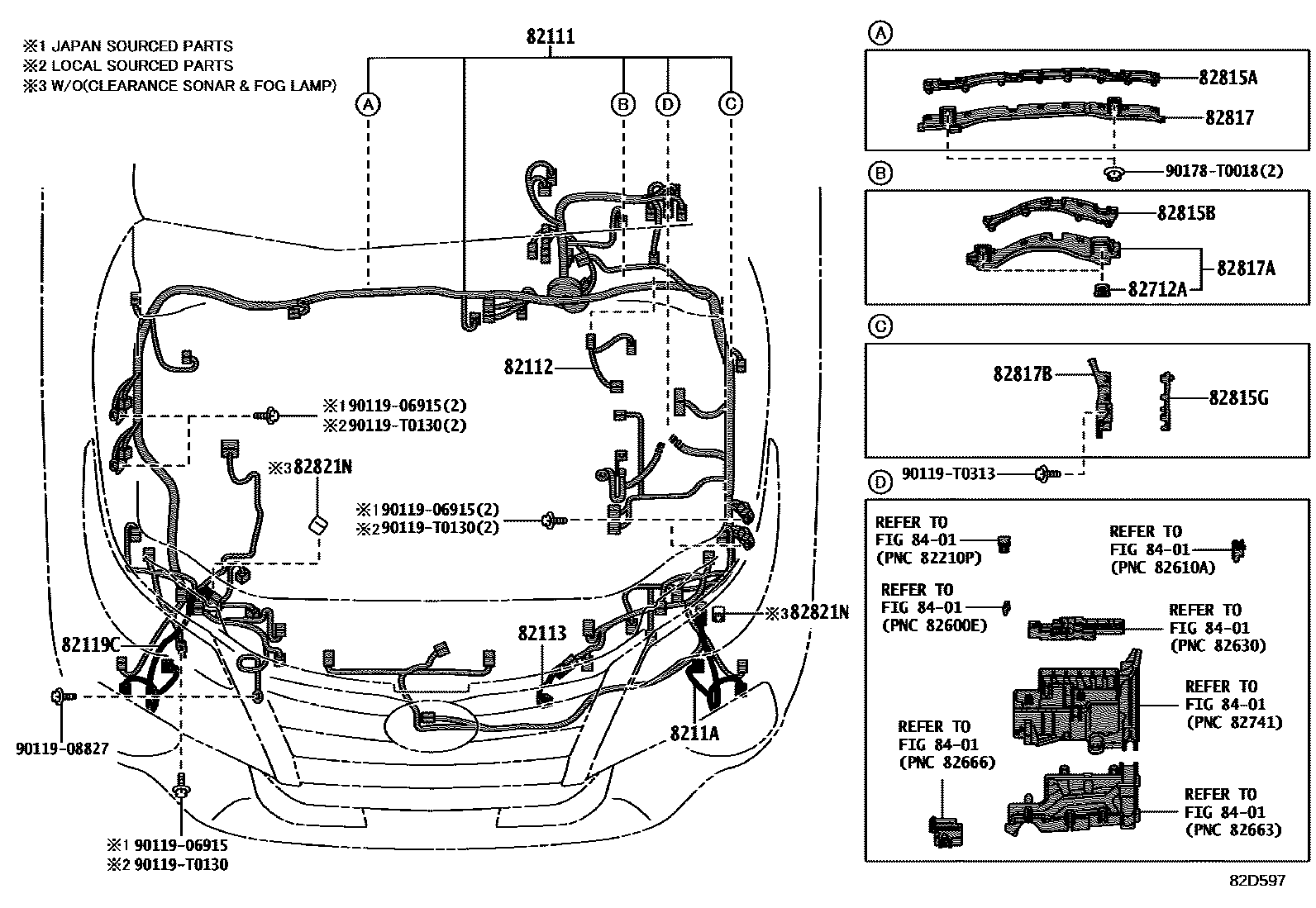

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS); NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS); SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS)
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)
TOYOTA STOP & START SYSTEM-WITH
FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS); CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)
FRONT BUMPER-PAINTED(MLM)
SPEAKER-11SPEAKER & JBL
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
MLM PACKAGE & ACCESSORY&TOYOTA STOP & START SYSTEM-WITHOUT&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
FRONT BUMPER-PAINTED(MLM)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS); SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS); CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)
FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
TOYOTA STOP & START SYSTEM-WITH
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
82119CWIRE, ENGINE ROOM, NO.5
main82119-KK030iGUN165..H..TH;GUN155,TGN156..THSUV..L;TGN166..INDSU,THSUV,VNSUV;GUN165..LHD..(THSUV,VNSUV)..(L,S);GGN155,GUN15#,166..(EPTSU,INDSU,THSUV,VNSUV)..(ARL,EPT,GEN,IND,TH,VN)202006-202204
main82119-KK200iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; GUN155..IDNSU..L..GCC;GGN155,GUN155..LHD..GEN;GUN165..LHD..IDNSU..(GCC,GEN);TGN156,166..IDNSU..(H,L)..(GCC,GEN); GUN165,TGN166..IDNSU;TGN156..IDNSU..(H,L);GUN155..IDNSU..L..GCC;GGN155,GUN15#,166..IDNSU..(GEN,IDN,PH,VN)202007-202103
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT
main82119-KK201iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; GUN165,TGN166..IDNSU;TGN156..IDNSU..(H,L);GUN155..IDNSU..L..GCC;GGN155,GUN15#,166..IDNSU..(GEN,IDN,PH,VN)202103-202108
CLEARANCE & BACK SONAR-WITH
main82119-KK010iGUN155,165..SA;GUN156..6FC..S..BZAGT;GGN155,GUN15#,166,TGN156..(SASUV,THSUV)..(H,S)..(GCC,SA); TGN168..S;GUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..H;GGN155,GUN165,TGN156,166..AGTSU..6FC202006-202110
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main82119-KK020iGUN155,165..(L,S)..(MA,SA,TH);GGN155,GUN15#,166,LAN155,TGN156,166..(MASUV,PKNSU,SASUV,THSUV)..(H,S)..(GCC,MA,PKN,SA)202006-202201
FRONT FOG LAMP-WITH(LED)
MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
main82119-KK180iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; GUN165..S..PH;GUN165..IDNSU..(GEN,IDN,VN);GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,IDN,PH,VN)202007-202103
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main82119-KK181iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; GUN165..S..PH;GUN165..IDNSU..(GEN,IDN,VN);GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,IDN,PH,VN)202103-202108
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main82119-KK190iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; TGN156,166..H..GEN;GGN155,GUN155,165..LHD..6FC..GEN202007-202103
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT
main82119-KK191iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; TGN156,166..H..GEN;GGN155,GUN155,165..LHD..6FC..GEN202103-202108
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED); MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
8211AWIRE, ENGINE ROOM, NO.6
main8211A-KK030iGUN165..H..TH;GUN155,TGN156..THSUV..L;TGN166..INDSU,THSUV,VNSUV;GUN165..LHD..(THSUV,VNSUV)..(L,S);GGN155,GUN15#,166..(EPTSU,INDSU,THSUV,VNSUV)..(ARL,EPT,GEN,IND,TH,VN)202006-202204
main8211A-KK200iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; GUN165,TGN166..IDNSU;TGN156..IDNSU..(H,L);GUN155..IDNSU..L..GCC;GGN155,GUN15#,166..IDNSU..(GEN,IDN,PH,VN)202007-202108
CLEARANCE & BACK SONAR-WITH
main8211A-KK010iGUN155,165..SA;GUN156..6FC..S..BZAGT;GGN155,GUN15#,166,TGN156..(SASUV,THSUV)..(H,S)..(GCC,SA); TGN168..S;GUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..H;GGN155,GUN165,TGN156,166..AGTSU..6FC202006-202110
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main8211A-KK020iGUN155,165..(L,S)..(MA,SA,TH);GGN155,GUN15#,166,LAN155,TGN156,166..(MASUV,PKNSU,SASUV,THSUV)..(H,S)..(GCC,MA,PKN,SA)202006-202201
FRONT FOG LAMP-WITH(LED)
MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
main8211A-KK180iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; GUN165..S..PH;GUN165..IDNSU..(GEN,IDN,VN);GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,IDN,PH,VN)202007-202108
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main8211A-KK190iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC; TGN156,166..H..GEN;GGN155,GUN155,165..LHD..6FC..GEN202007-202108
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
82712ASUPPORT, WIRING HARNESS
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
main82815-0K540iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-0K520iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-0K540iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204
82821NCOVER, CONNECTOR
main82821-KK030×2iGUN156..LA;GUN155..L..GCC;GUN165..LHD..(GCC,GEN,LA);GGN155,GUN155..LHD..(GEN,LA);TGN156,166..(H,L)..(GCC,GEN,LA); TGN16#..L..(BZAGT,EPT);GUN156..6FC..(L,S)..BZAGT; TGN166..EPT202006-202110
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT
8401SWITCH & RELAY & COMPUTER
9011906915
main90119-06915
9011908827
main90119-08827
90119T0130
main90119-T0130
90119T0313
main90119-T0313
90178T0018
main90178-T0018
19 parts on this diagram · 19 diagrams in section
