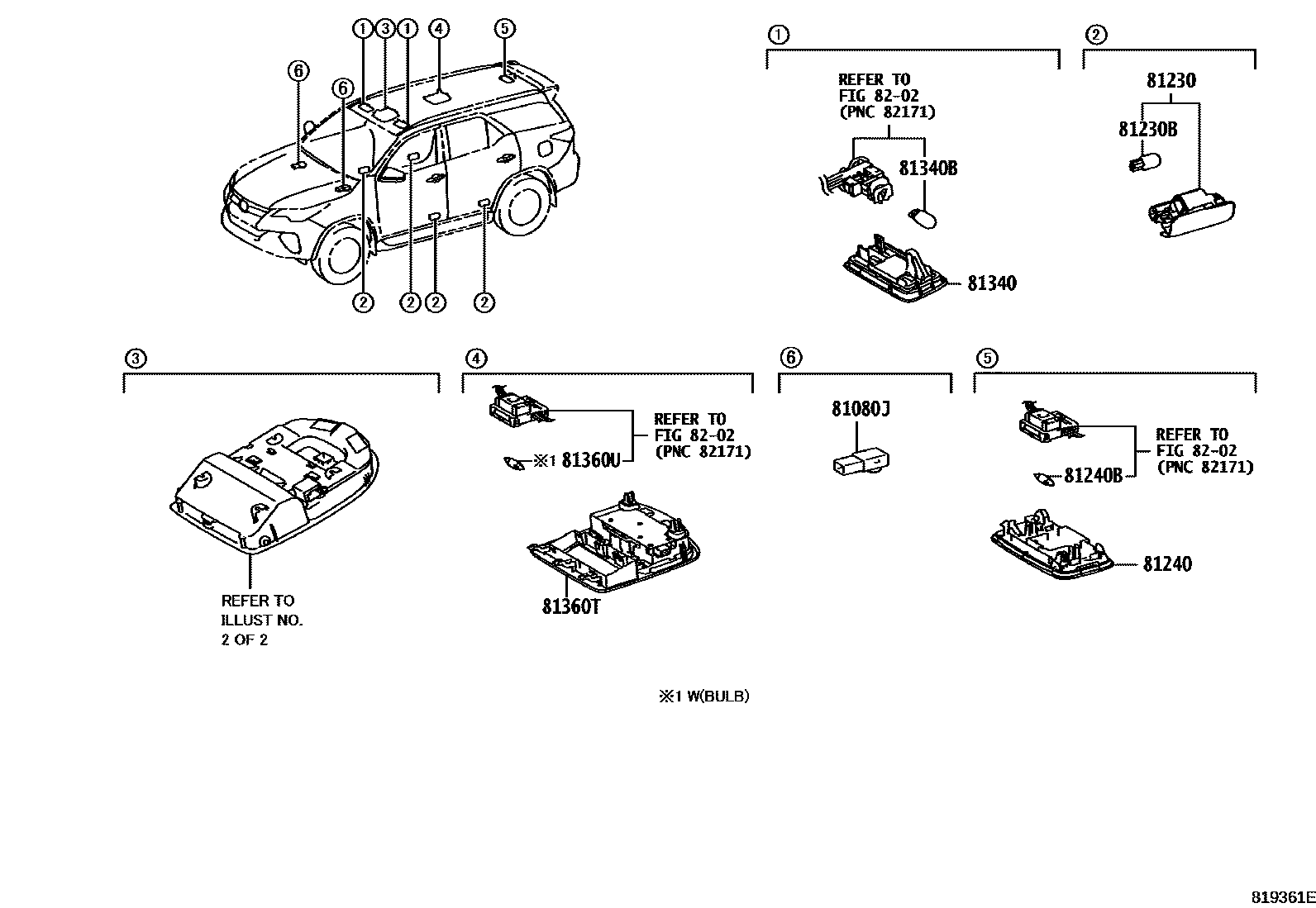

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290×2iGUN166..RHD..6FC..H;GUN15#,165..THSUV..H..(GEN,TH)202007-202109

MLM PACKAGE & ACCESSORY

81230LAMP ASSY, COURTESY

main81230-0K010×4iGUN156,166,TGN166..IND202101-202109

main81230-30200×4iGUN156,TGN156..PKN202006-202201

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iGUN156,166,TGN166..IND202101-202109

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-0K030-B0iGUN155,165,TGN156,166..IDNSU..(6F,6FC)..L..(GCC,GEN)202007-202108

LT.GRAY,TRIM4#

main81240-0K030-C0iGUN156..LHD..IDNSU..GEN202007-202108

BLACK,TRIM0#,3#

main81240-0K070-B0iGGN155,GUN156,165,TGN156,16#..AGTSU202009-202110

LT.GRAY,TRIM2#

main81240-0K070-C0iGUN15#,16#..THSUV..H..(GEN,TH)202006-202108

BLACK,TRIM0#,3#

main81240-0K080-B0iGUN156,166,TGN166..IND202101-202109

LT.GRAY,TRIM2#,4#

main81240-0K080-C0iGUN156..IND;GUN166..6FC..IND202101-202109

BLACK,TRIM3#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

12V 8W

81340LAMP ASSY, VANITY

main81340-0K030×2iGGN155,GUN15#,16#,TGN156..(EPTSU,MASUV,THSUV)..H202006-202203

main81340-0K040×2iGUN165..H..IDN;GUN165..LHD..GEN;GGN155,GUN15#,166,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main81340-0K050×2iGUN156,166,TGN166..IND202101-202109

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iGGN155,TGN168..AGTSU;GUN156,TGN156,166..AGTSU..(H,S)202006-202110

12V 8W

81360TLAMP ASSY, SPOT

main81360-0K010-B0iGGN155,GUN15#,165,TGN156,166..H..(BZAGT,IDN,LA,MA)202008-202110

LT.GRAY,TRIM2#

main81360-0K010-C0iGUN156..LHD..IDNSU..GEN;GUN15#,16#..THSUV..H..(GEN,TH)202006-202108

BLACK,TRIM0#,3#

main81360-0K040-B0iTGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

LT.GRAY,TRIM4#

main81360-0K050-B0iTGN168202008-202110

LT.GRAY,TRIM2#

main81360-0K050-C0iGUN165..H..VN202009-202204

BLACK,TRIM3#

81360UBULB, SPOT LAMP

main90981-14011iGUN165..H..VN;GGN155,GUN15#,16#,LAN155,TGN156,166..(EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..(L,S)202006-202204

8202WIRING & CLAMP

→ Go to FIG 82-02

10 parts on this diagram · 2 diagrams in section
