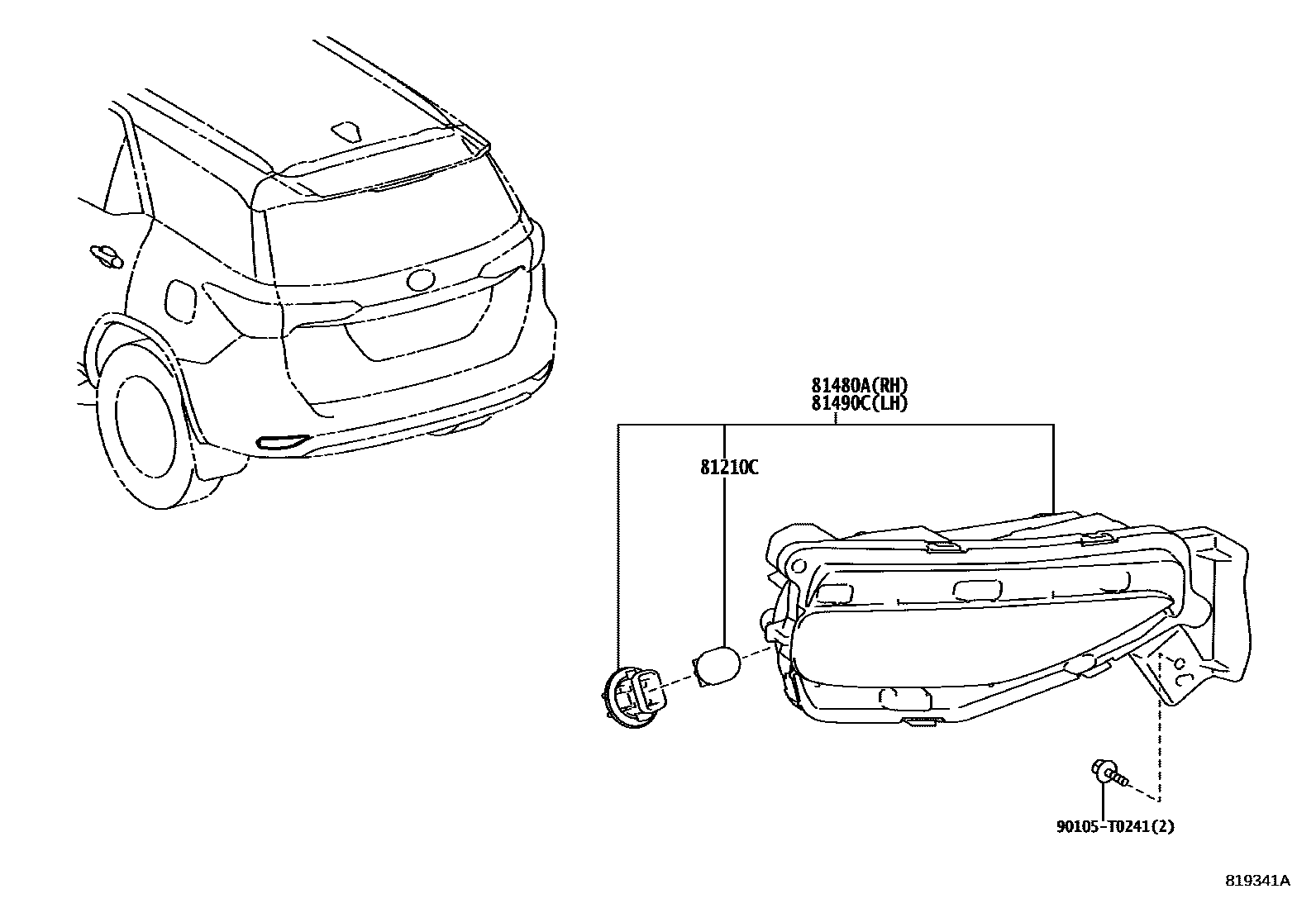

REAR FOG LAMP

0001 1 0002 1

81210CBULB, REAR FOG LAMP

main90981-13043iGUN156,166,TGN166..IND202006-202204

12V 21W

main90981-13043iGUN155,165..LHD..GEN;GUN156,TGN156..6FC..(GCC,GEN,MA,TH,VN);GGN155,GUN155,16#,TGN166..EPT,GCC,MA,TH,VN202006-202204

12V 21W,MLM PACKAGE&REAR FOG LAMP-WITHOUT

81480ALAMP ASSY, REAR FOG, RH

main81480-0K020iGGN155,GUN15#,16#,TGN156,166..(EPTSU,MASUV,THSUV)..(EPT,GCC,GEN,MA,TH)202006-202203

main81480-0K070iGGN155,TGN166..(IDNSU,VNSUV)..(GCC,VN);GUN155,165..LHD..(IDNSU,VNSUV)..(GCC,GEN,VN);GUN156,TGN156..(IDNSU,VNSUV)..6FC..(GCC,GEN,VN)202007-202204

MLM PACKAGE&REAR FOG LAMP-WITHOUT

main81480-0K080iGUN156,166,TGN166..IND202101-202109

81490CLAMP ASSY, REAR FOG, LH

main81490-0K020iGGN155,GUN15#,16#,TGN156,166..(EPTSU,MASUV,THSUV)..(EPT,GCC,GEN,MA,TH)202006-202203

main81490-0K070iGUN156..VNSUV202007-202204

MLM PACKAGE&REAR FOG LAMP-WITHOUT

main81490-0K080iGUN156,166,TGN166..IND202101-202109

90105T0241

main90105-T0241

4 parts on this diagram · 2 diagrams in section
