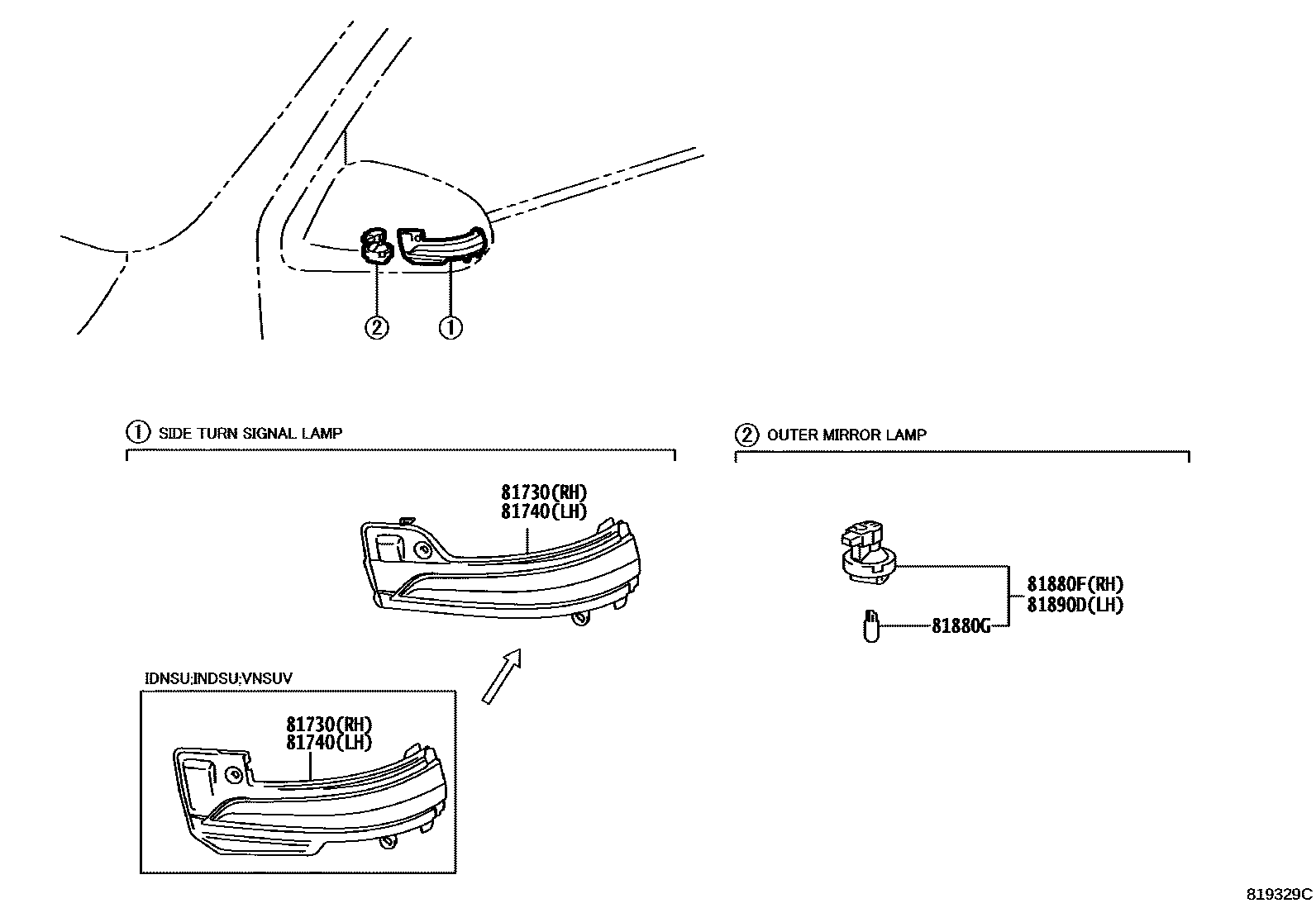

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main81730-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main81730-0K120iGUN156,166,TGN166..IND202101-202109

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-0K020iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV202006-202203

main81740-0K040iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main81740-0K050iGUN156,166,TGN166..IND202101-202109

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-0K010iGGN155,GUN156,TGN156,166..(H,S)..LA; GUN156..6FC..H..BZAGT202006-202110

OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)

81880GBULB, OUTER MIRROR LAMP ASSY

main99132-12050×2iGGN155,GUN156,TGN156,166..(H,S)..LA; GUN156..6FC..H..BZAGT202006-202110

12V 5W; 12V 5W,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)

81890DLAMP ASSY, OUTER MIRROR, LH

main81890-0K010iGGN155,GUN156,TGN156,166..(H,S)..LA; GUN156..6FC..H..BZAGT202006-202110

OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)

5 parts on this diagram · 1 diagram in section
