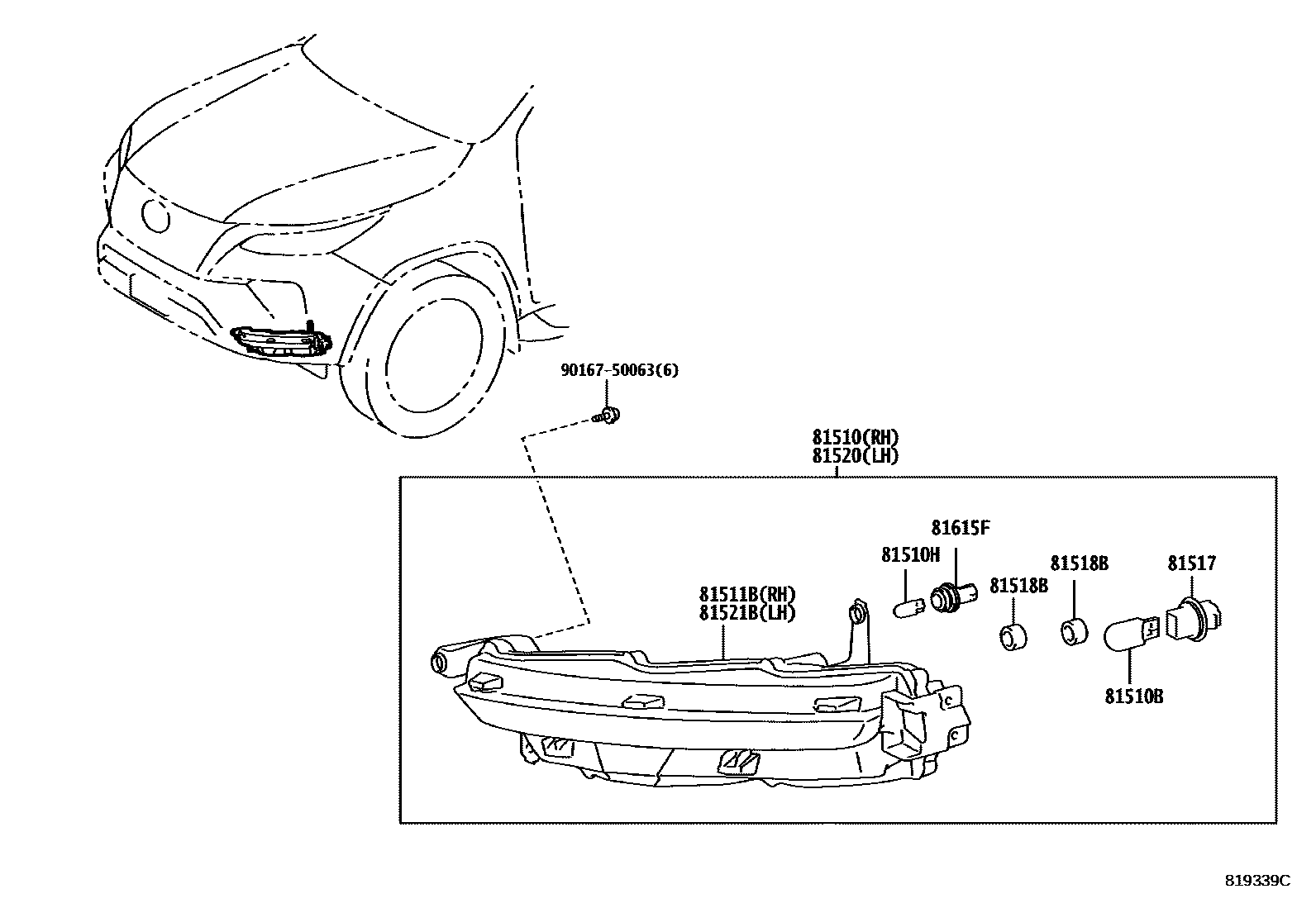

FRONT TURN SIGNAL LAMP

0001 1BULB TYPE 0002 1LED TYPE

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-0K040iTGN166..PKN202006-202201

main81510-0K050iGGN155,GUN156,TGN156,166..AGTSU..H202006-202110

main81510-0K070iGUN15#,16#,LAN155,TGN156..SA202009-202109

main81510-0K060iGUN156..LHD..IDNSU..GEN202009-202108

FRONT BUMPER-PAINTED(MLM)

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iGUN156,165,TGN156,16#..AGTSU..(L,S)202006-202110

12V 21W,AMBER

81510HBULB (FOR FRONT CLEARANCE LAMP)

main90981-11069×2iGUN156,165,TGN156,16#..AGTSU..(L,S)202006-202110

81511BLENS & BODY, FRONT TURN SIGNAL LAMP, RH

main81511-0K040iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,MA,VN)202006-202204

main81511-0K070iGUN15#,16#,LAN155,TGN156..SA202009-202109

81517SOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,MA,VN)202006-202204

81518BSOCKET COVER, FRONT TURN SIGNAL LAMP

main90075-15509×4iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,MA,VN)202006-202204

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-0K040iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,MA,VN)202006-202204

main81520-0K050iGGN155,GUN156,TGN156,166..AGTSU..H202006-202110

main81520-0K070iGUN15#,16#,LAN155,TGN156..SA202009-202109

main81520-0K060iGUN156..LHD..IDNSU..GEN202009-202108

FRONT BUMPER-PAINTED(MLM)

81521BLENS & BODY, FRONT TURN SIGNAL LAMP, LH

main81521-0K040iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,MA,VN)202006-202204

main81521-0K070iGUN15#,16#,LAN155,TGN156..SA202009-202109

81615FSOCKET, CLEARANCE LAMP

main90075-60066×2iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,MA,VN)202006-202204

9016750063

main90167-50063

10 parts on this diagram · 2 diagrams in section
