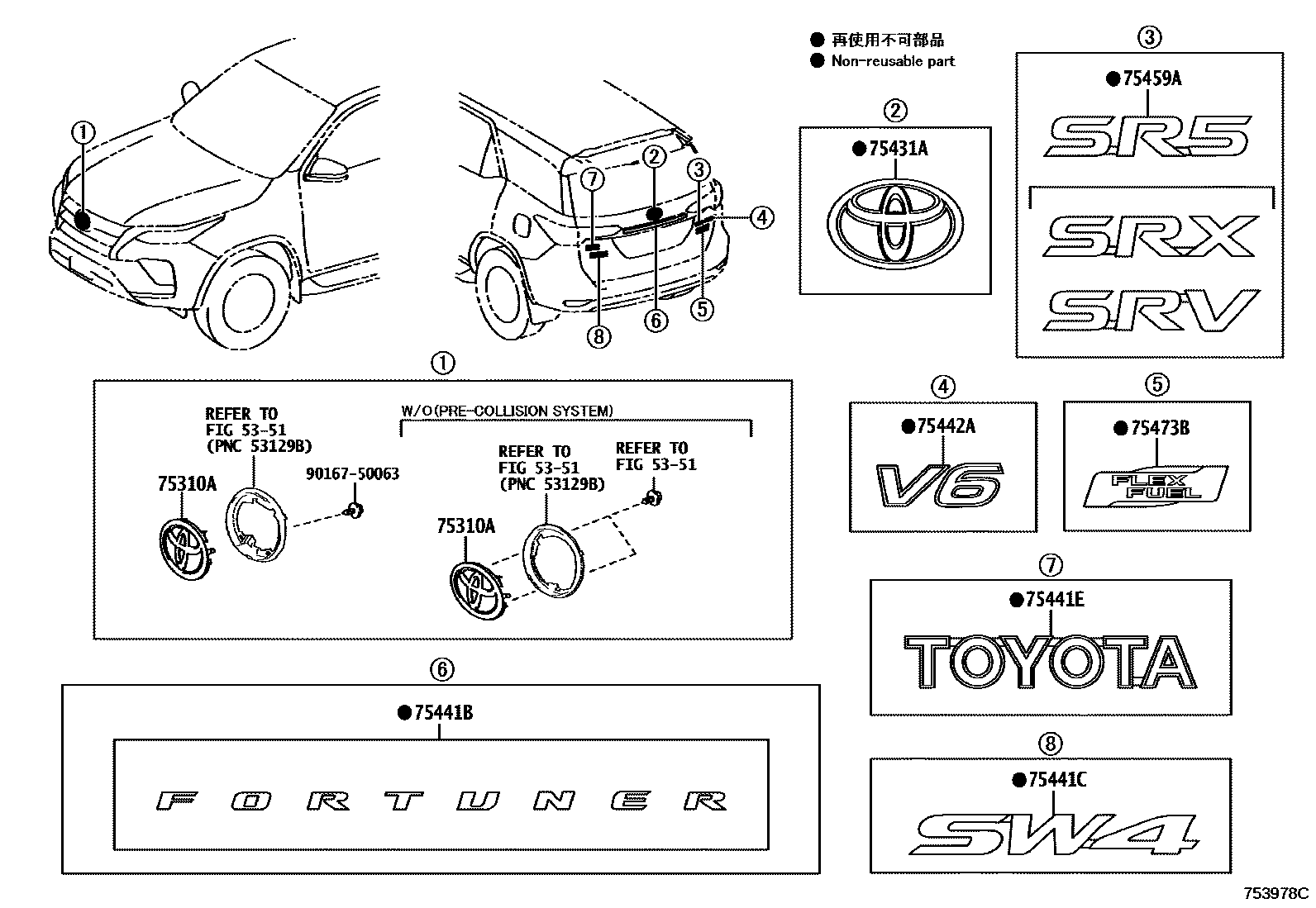

EMBLEM & NAME PLATE

5351RADIATOR GRILLE

→ Go to FIG 53-51

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-0K080iGUN156,TGN156,166..PKN202006-202203

main75310-0K100iGGN155,TGN156,166..AGTSU..(H,S)202011-202110

ACTIVE SAFETY PACKAGE-WITHOUT

main75310-0K110iGUN156..VNSUV202007-202204

ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)

main75310-0K110iGUN156..VNSUV202007-202204

FRONT BUMPER-PAINTED(MLM)

main75310-0K120iGUN156,166,TGN166..IND202101-202109

main90975-02159iGUN166;GUN155..H..GCC;GUN156..RHD..(GEN,SA,TH);GUN156..LHD..(IDNSU,THSUV,VNSUV)202006-202012

ACTIVE SAFETY PACKAGE-WITH

main90975-T2030iGUN156,165..ARL,BZAGT,LA202101-202110

75431AEMBLEM, BACK DOOR, NO.1

main75431-0K050iGUN156,166,TGN166..IND202101-202109

main90975-02073iGGN155,GUN15#,16#,TGN156,166..THSUV202006-202108

main90975-02086iGGN155,GUN156,165,TGN156,16#..AGTSU202007-202204

75441BPLATE, BACK DOOR NAME

main75441-0K200iGUN15#,165,TGN156,166..(AGTSU,SASUV,THSUV)..L..(ARL,GCC,LA,SA)202006-202110

FORTUNER

main75441-0K210iGGN155,GUN156,TGN156,166..(H,S)..LA202006-202203

FORTUNER

main75441-0K250iGUN155,165,TGN156,166..IDNSU..L202007-202108

FORTUNER

main75441-0K260iGGN155,GUN15#,16#,TGN156,166..IDNSU..(H,S)202007-202108

FORTUNER

main75441-0K300iGUN165..VNSUV..L202009-202204

FORTUNER

main75441-0K310iGUN156,165..VNSUV..H202009-202204

FORTUNER,MLM PACKAGE

main75441-0K310iGUN156,165,TGN166..VNSUV..6FC202009-202204

FORTUNER

75441CPLATE, BACK DOOR NAME

main75441-0K150iGUN156,TGN156,16#..BZAGT202011-202110

SW4

75441EPLATE, BACK DOOR NAME, NO.1

main75441-0K120iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

TOYOTA

main75441-0K130iGUN156,TGN166..RHD..GEN202007-202108

TOYOTA,BRAND NAME MARK-WITH(TOYOTA EMBLEM)&GRADE MARK-SRV

main75441-0K130iTGN166..L..GEN;GGN155,TGN156..GEN202007-202108

TOYOTA

main75441-0K130iTGN166..L..GEN;GGN155,TGN156..GEN202007-202108

TOYOTA,BRAND NAME MARK-WITH(TOYOTA EMBLEM)

main75441-0K240iGUN15#,16#,LAN155,TGN156..SA202009-202109

TOYOTA

75442APLATE, BACK DOOR NAME, NO.2

main75428-0K031iGGN155..EPTSU,THSUV202006-202203

V6

main75428-0K170iGGN155..IDNSU202007-202108

V6

75459AMARK, BACK DOOR

main75459-0K061iTGN166..S..LA202006-202203

SR5

main75459-0K190iGGN155,GUN156,TGN156,166..H..LA202011-202110

SRX,GRADE MARK-SRX

main75459-0K190iGUN156..H..BZAGT202011-202110

SRX

main75459-0K260iGUN156,TGN156,166..H..LA;GGN155,TGN168..AGTSU..(H,S)202011-202110

SRV

main75459-0K300iGUN155..LHD..IDNSU..H;GGN155,GUN156..IDNSU..H..GCC202007-202108

SR5

main75459-0K340iGUN156,TGN166..RHD..GEN202007-202108

SRV

main75459-0K340iGGN155,TGN156..H..GEN202007-202108

SRV,BRAND NAME MARK-WITH(TOYOTA EMBLEM)&GRADE MARK-SRV

main75459-0K340iGGN155,TGN156..H..GEN202007-202108

SRV,GRADE MARK-SRV

75473BPLATE, REAR BODY NAME, NO.3

main75473-71010iTGN168202011-202110

FLEX FUEL

9016750063

main90167-50063

10 parts on this diagram · 1 diagram in section
