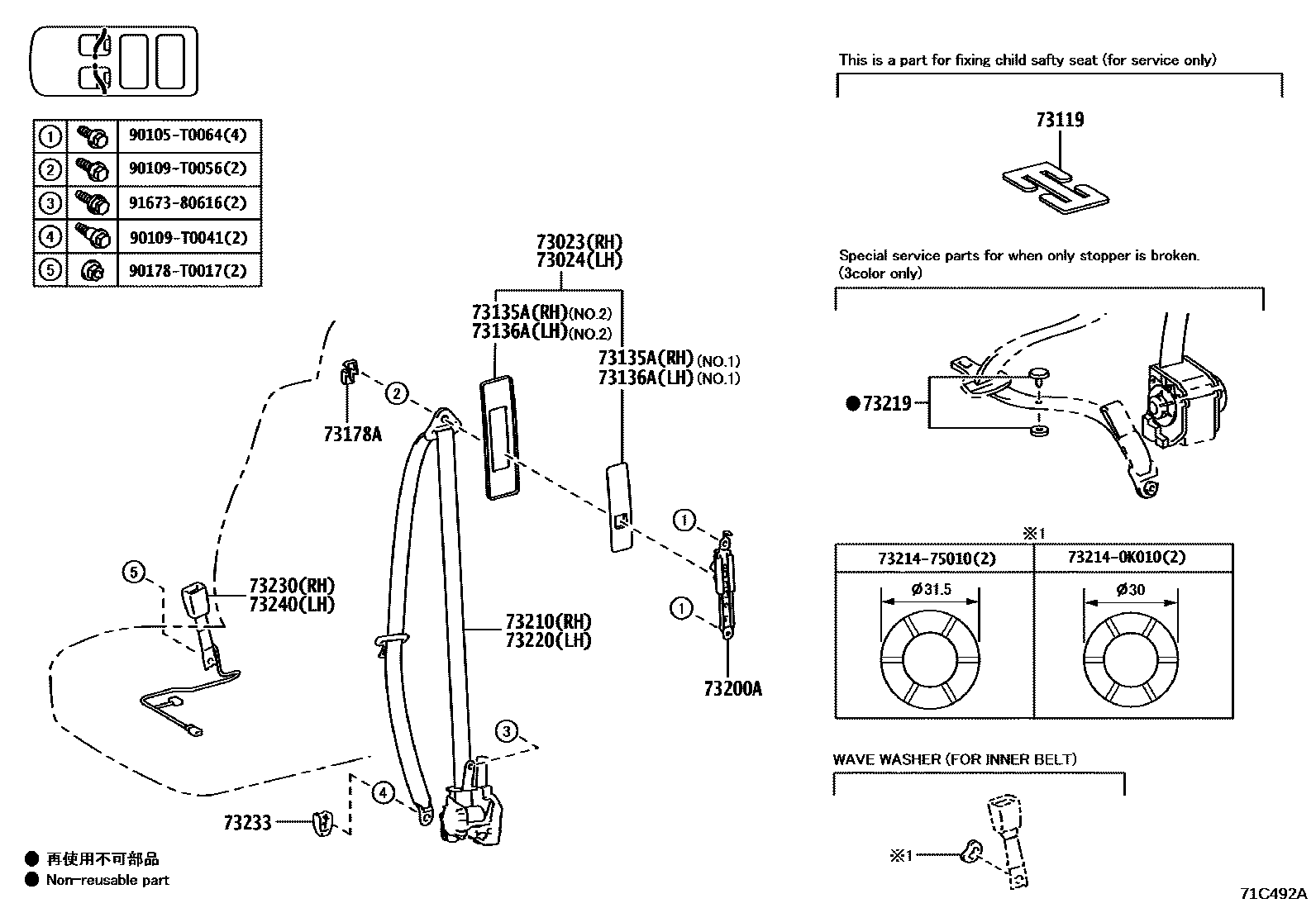

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#
main73023-KK010-B0iGUN165..H..TH;TGN166..THSUV;TGN166..GEN,IND,VN;GUN165,TGN156..(L,S)..(GEN,PH,TH,VN);GUN155,TGN156..(H,S)..(GCC,GEN,TH,VN);GGN155,GUN156,166..EPTSU,IDNSU,INDSU,THSUV202006-202204
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM4#
BLACK,TRIM0#,3#
BLACK,TRIM3#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#
LT.GRAY,TRIM4#
BLACK,TRIM3#
BLACK,TRIM0#,3#
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-KK010-B0iGUN165..H..TH;TGN166..THSUV;TGN166..GEN,IND,VN;GUN165,TGN156..(L,S)..(GEN,PH,TH,VN);GUN155,TGN156..(H,S)..(GCC,GEN,TH,VN);GGN155,GUN156,166..EPTSU,IDNSU,INDSU,THSUV202006-202204
LT.GRAY,TRIM2#,4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
BLACK,TRIM3#,NO.1:REFER ILLUST.
BLACK,TRIM0#,3#,NO.1:REFER ILLUST.
LT.GRAY,TRIM4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
BLACK,TRIM3#,NO.2:REFER ILLUST.
BLACK,TRIM0#,3#,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
main73135-KK010-B0iGUN165..H..TH;TGN166..THSUV;TGN166..GEN,IND,VN;GUN165,TGN156..(L,S)..(GEN,PH,TH,VN);GUN155,TGN156..(H,S)..(GCC,GEN,TH,VN);GGN155,GUN156,166..EPTSU,IDNSU,INDSU,THSUV202006-202204
LT.GRAY,TRIM2#,4#,NO.1:REFER ILLUST.
BLACK,TRIM0#,3#,NO.1:REFER ILLUST.
BLACK,TRIM3#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
BLACK,TRIM0#,3#,NO.2:REFER ILLUST.
BLACK,TRIM3#,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#
LT.GRAY,TRIM4#
BLACK,TRIM0#,3#
BLACK,TRIM3#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#
LT.GRAY,TRIM4#
BLACK,TRIM0#,3#
BLACK,TRIM3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM4#
main73200-0K030-B0iTGN156..IDNSU..S;TGN156,166..GEN,VN;GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN15#,166..(IDNSU,VNSUV)..(H,S)..(GCC,GEN,PH,VN)202007-202204
LT.GRAY,TRIM2#,4#
BLACK,TRIM3#
BLACK,TRIM0#,3#
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/GRAY,TRIM4#
main73210-0K840-C0iTGN166..THSUV;GGN155,GUN156,166..EPTSU,THSUV;GUN155,165,TGN156..THSUV..(H,S)202006-202203
BLACK/GRAY,TRIM2#,4#
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM3#
BLACK/BLACK,TRIM0#,3#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM4#
main73210-0K890-C0iTGN156..IDNSU..S;TGN156,166..GEN,VN;GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN15#,166..(IDNSU,VNSUV)..(H,S)..(GCC,GEN,PH,VN)202007-202204
BLACK,TRIM2#,4#
BLACK,TRIM0#,3#
BLACK,TRIM3#
BLACK,TRIM2#,4#
BLACK/BLACK,TRIM3#
BLACK,TRIM2#,4#
73219STOPPER, TONGUE PLATE
main73219-33010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0K550-C0iTGN166..THSUV;GGN155,GUN156,166..EPTSU,THSUV;GUN155,165,TGN156..THSUV..(H,S)202006-202203
BLACK/GRAY,TRIM2#,4#
BLACK/GRAY,TRIM4#
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM3#
BLACK/BLACK,TRIM0#,3#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#
main73220-0K600-C0iTGN156..IDNSU..S;TGN156,166..GEN,VN;GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN15#,166..(IDNSU,VNSUV)..(H,S)..(GCC,GEN,PH,VN)202007-202204
BLACK,TRIM2#,4#
BLACK,TRIM3#
BLACK,TRIM0#,3#
BLACK,TRIM2#,4#
BLACK/BLACK,TRIM3#
BLACK,TRIM2#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
main73230-0KE90-C0iGUN165..L..VN;GUN165,TGN156,166..LHD..(GEN,PH);GGN155,GUN155,TGN156..IDNSU..S..GCC202007-202204
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KF50-C0iGUN165..S..VN;GUN156..IDNSU..VN;GGN155,GUN155,TGN156,166..LHD..6FC..(GEN,VN)202007-202204
BLACK,TRIM2#,3#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM4#
main73230-0KE70-C0iGUN165..L..VN;GUN165,TGN156,166..LHD..(GEN,PH);GGN155,GUN155,TGN156..IDNSU..S..GCC202007-202204
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0064
main90105-T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017
9167380616
main91673-80616
20 parts on this diagram · 3 diagrams in section
