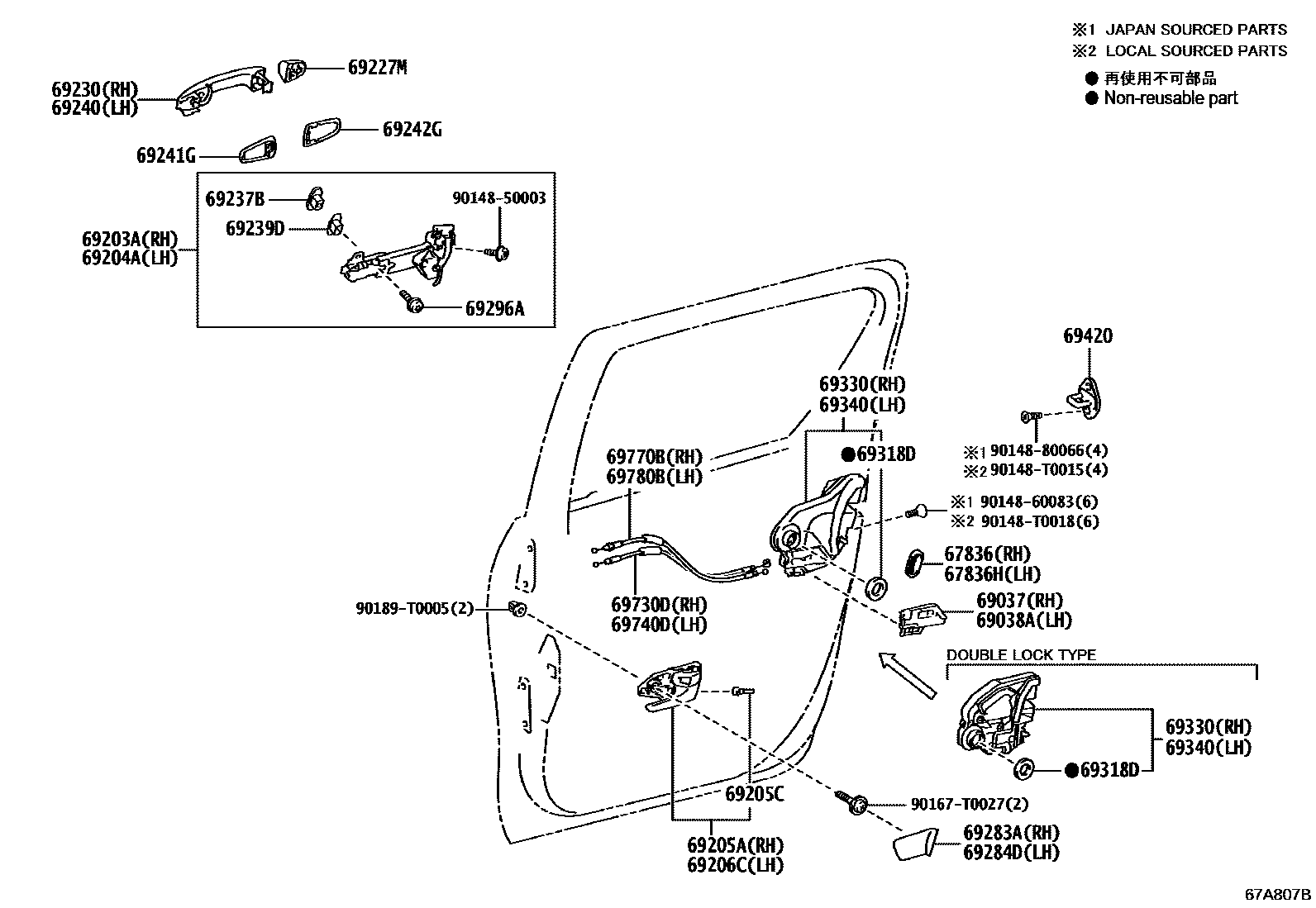

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-02030iGUN155..IDNSU,MASUV;GUN155..THSUV..(L,S);GGN155,GUN156..(L,S)..(ARL,GCC);GGN155,GUN156..(IDNSU,MASUV,VNSUV)..H;GUN16#,TGN156,166..EPT,GCC,GEN,IDN,MA,PH,VN202006-202204
(J)
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),(L)
(L)
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),(L)
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
(J)
(L)
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),(L)
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),(L)
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
main69037-02040iGUN156..LHD..SA;LAN155,TGN156..IDNSU,SASUV,THSUV;GGN155,GUN15#,16#,TGN166..EPTSU,IDNSU,THSUV,VNSUV202006-202204
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-0K070iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
main69205-0K110-C0iGUN165..S..TH;GUN156,TGN166..THSUV..(ARL,GCC);GGN155,GUN155,TGN156..LHD..(EPTSU,THSUV)..(H,S)202006-202203
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
*CR
*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
*CR
main69227-0K200iTGN156..THSUV;GUN156..RHD..(SA,TH);GUN156..THSUV..H..(ARL,GCC,GEN);GGN155,GUN155,16#,LAN155,TGN166..EPTSU,SASUV,THSUV202006-202202
*CR
*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
LESS COLOR
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
LESS COLOR
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-0K130iGUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GGN155,GUN156,166,TGN156,166..(IDNSU,VNSUV)..6FC;GUN155,165..(IDNSU,VNSUV)..6FC..(H,L)..(GCC,GEN,IDN,VN)202007-202204
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-0K130iGUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GGN155,GUN156,166,TGN156,166..(IDNSU,VNSUV)..6FC;GUN155,165..(IDNSU,VNSUV)..6FC..(H,L)..(GCC,GEN,IDN,VN)202007-202204
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
PLATED,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.
PAINT REQ.
PAINT REQ.
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-0K130iGUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GGN155,GUN156,166,TGN156,166..(IDNSU,VNSUV)..6FC;GUN155,165..(IDNSU,VNSUV)..6FC..(H,L)..(GCC,GEN,IDN,VN)202007-202204
PLATED
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
PLATED
PLATED,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-0K060iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-0K010-C0iGUN156..RHD..GEN;TGN156..IDNSU..S;TGN156,166..GEN,VN;GUN156..IDNSU..(GCC,VN);GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN155..IDNSU..(H,S)..(GCC,GEN)202007-202204
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
main69050-0K020iGUN165..PH,VN;GUN165..RHD..IDNSU;GUN155..IDNSU..H..GCC;GUN155,TGN166..6FC..(GEN,IDN,VN);GGN155,GUN156,166,TGN156..(IDNSU,VNSUV)..H202007-202204
main69050-0K090iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main69050-0K090iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main69050-0K090iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69340LOCK ASSY, REAR DOOR, LH
main69060-0K070iGUN165..PH,VN;GUN165..RHD..IDNSU;GUN155..IDNSU..H..GCC;GUN155,TGN166..6FC..(GEN,IDN,VN);GGN155,GUN156,166,TGN156..(IDNSU,VNSUV)..H202007-202204
main69060-0K090iGUN16#..TH;GUN156,LAN155,TGN156..LHD..SA;GGN155,GUN15#..(EPTSU,THSUV)..H202006-202203
main69060-0K100iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main69060-0K100iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-0K200iGGN155,GUN15#,16#,TGN166..EPTSU,THSUV;GUN156,LAN155,TGN156..LHD..(SASUV,THSUV)..(L,S)202006-202203
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-0K180iGGN155,GUN15#,16#,TGN166..EPTSU,THSUV;GUN156,LAN155,TGN156..LHD..(SASUV,THSUV)..(L,S)202006-202203
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
34 parts on this diagram · 1 diagram in section
