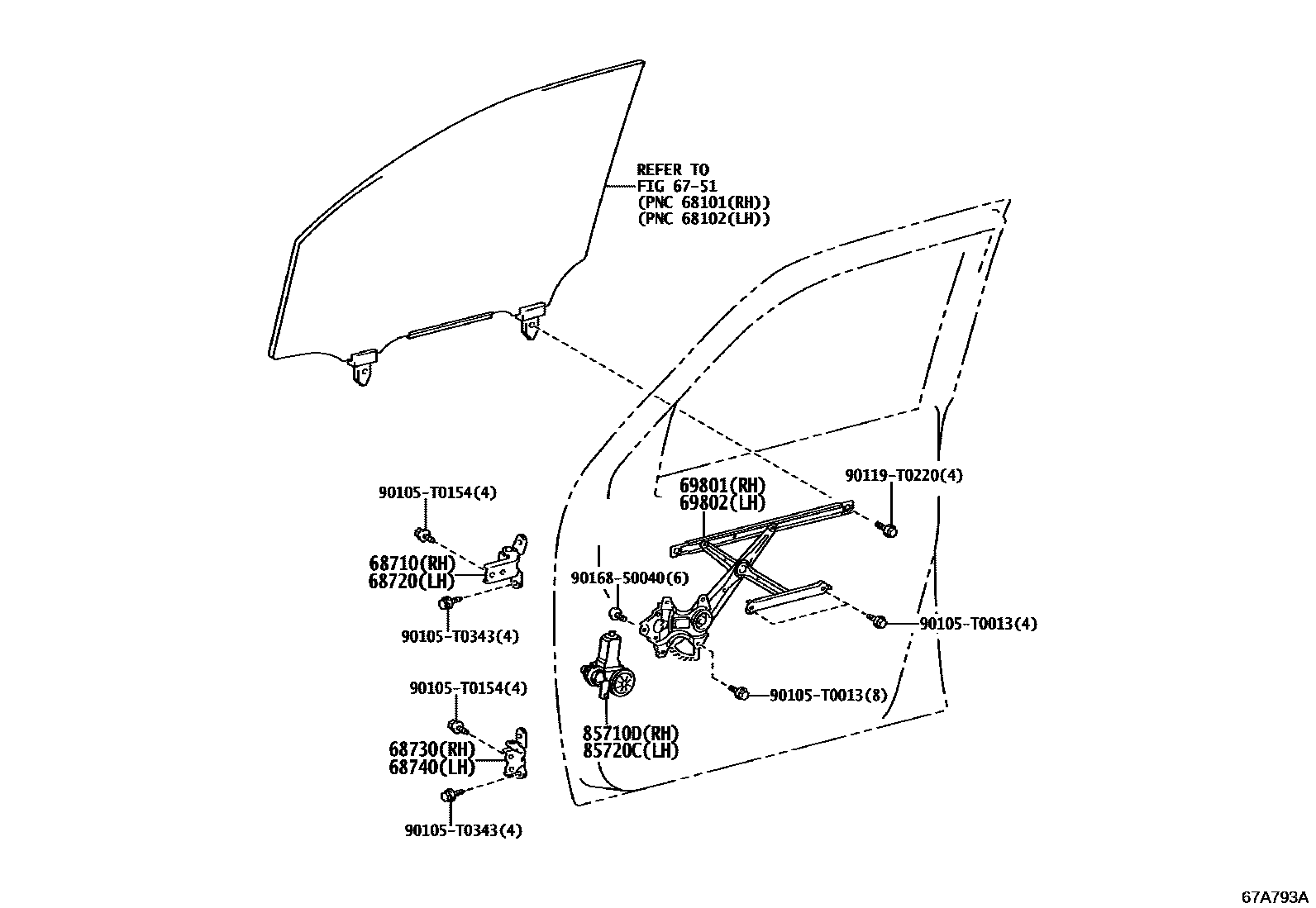

FRONT DOOR WINDOW REGULATOR & HINGE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGUN15#,16#,LAN155,TGN156..SA202009-202109

main68710-02080iGUN156,166,TGN166..IND202101-202109

main68710-0D050iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main68710-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68710-0K020iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68710-12151iGUN156,TGN156,166..PKN202104-202201

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGUN15#,16#,LAN155,TGN156..SA202009-202109

main68720-02080iGUN156,166,TGN166..IND202101-202109

main68720-0D050iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main68720-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68720-0K020iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68720-12151iGUN156,TGN156,166..PKN202104-202201

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iGUN15#,16#,LAN155,TGN156..SA202009-202109

main68730-02090iGUN156,166,TGN166..IND202101-202109

main68730-02100iGUN156,TGN156,166..PKN202006-202201

main68730-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iGUN15#,16#,LAN155,TGN156..SA202009-202109

main68740-02090iGUN156,166,TGN166..IND202101-202109

main68740-02100iGUN156,TGN156,166..PKN202006-202201

main68740-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D351iGUN156,TGN156,166..PKN202012-202201

main69801-0K140iGUN156..THSUV..(ARL,GEN)202006-202108

main69801-0K150iGUN15#,16#,LAN155,TGN156..SA202009-202109

main69801-0K160iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main69801-0K170iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main69801-0K180iGUN156,166,TGN166..IND202101-202109

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D331iGUN156,TGN156,166..PKN202012-202201

main69802-0K140iGGN155,GUN15#,16#,TGN156,166..THSUV..(GCC,TH)202006-202012

main69802-0K150iGUN15#,16#,LAN155,TGN156..SA202009-202109

main69802-0K160iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main69802-0K170iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main69802-0K180iGUN156,166,TGN166..IND202101-202109

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D570iGGN155,GUN155,165,TGN156,166..LHD..(EPTSU,THSUV)..(L,S)202012-202203

main85710-0K180iGGN155,GUN155,165,TGN156,166..THSUV..(L,S)..GCC202006-202012

main85710-0K190iGGN155,GUN155,TGN156..THSUV..S; GGN155,GUN155..THSUV..H;GUN156,16#..THSUV..(H,S)..(GCC,TH)202006-202012

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main85710-0K200iGUN156,TGN156,166..PKN202012-202201

main85710-0K280iGGN155,TGN168..AGTSU..(H,S);GUN156,TGN156,166..AGTSU..H; GUN156,165,TGN156,166..AGTSU..(6F,6FC)..(L,S)202011-202110

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main85710-0K290iGUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)202011-202110

main85710-0K310iGUN156,166,TGN166..IND202101-202109

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K170iGUN156,TGN156,166..PKN202012-202201

main85720-0K180iGUN15#,165..RHD..(L,S)..(ARL,GEN,IDN)202006-202108

main85720-0K190iGGN155,GUN15#,16#,TGN156,166..THSUV..(GCC,TH)202006-202012

main85720-0K280iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main85720-0K310iGUN156,166,TGN166..IND202101-202109

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
