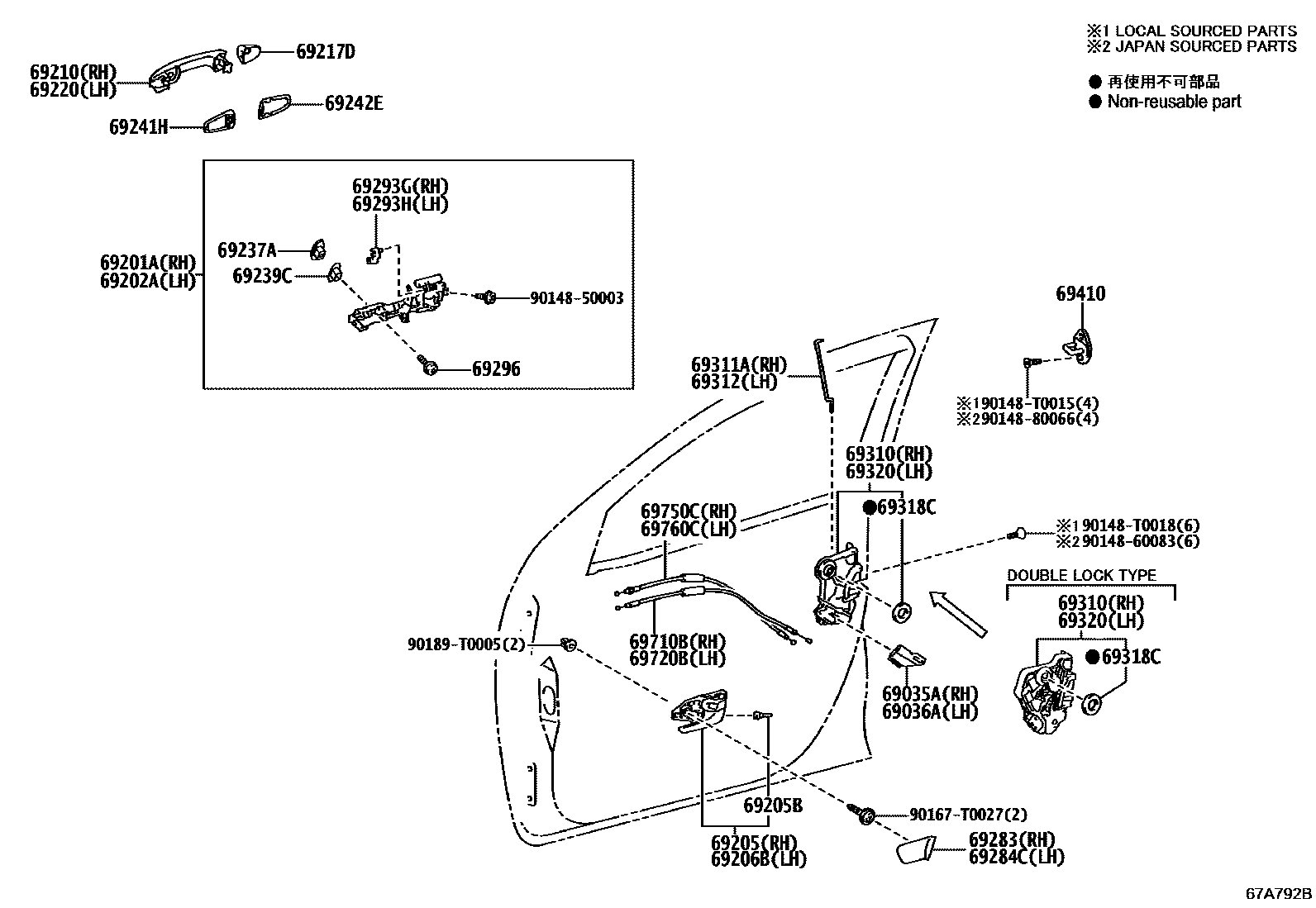

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-02040iGUN156..LHD..SA;LAN155,TGN156..IDNSU,SASUV,THSUV;GGN155,GUN15#,16#,TGN166..EPTSU,IDNSU,THSUV,VNSUV202006-202204
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K040iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
main69206-0K150-C0iGUN156..RHD..GEN;TGN156..IDNSU..S;TGN156,166..GEN,VN;GUN156..IDNSU..(GCC,VN);GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN155..IDNSU..(H,S)..(GCC,GEN)202007-202204
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
main69206-0K150-C0iGUN156..RHD..GEN;TGN156..IDNSU..S;TGN156,166..GEN,VN;GUN156..IDNSU..(GCC,VN);GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN155..IDNSU..(H,S)..(GCC,GEN)202007-202204
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
main69210-0K090iGUN165..S..VN;TGN166..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,16#,TGN156..(IDNSU,VNSUV)..H202007-202204
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
PLATED,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
PLATED
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PLATED,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-0K250iGUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GGN155,GUN156,166,TGN156,166..(IDNSU,VNSUV)..6FC;GUN155,165..(IDNSU,VNSUV)..6FC..(H,L)..(GCC,GEN,IDN,VN)202007-202204
*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DRIVER SIDE
*CR,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),PASSENGER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DRIVER SIDE
*CR,PASSENGER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),PASSENGER SIDE
PLATED,PASSENGER SIDE
PLATED,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
PLATED
PLATED,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PLATED,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
main69239-0K090iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0K020-C0iGUN156..RHD..GEN;TGN156..IDNSU..S;TGN156,166..GEN,VN;GUN156..IDNSU..(GCC,VN);GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN155..IDNSU..(H,S)..(GCC,GEN)202007-202204
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
main69030-02480iLAN155,TGN156..SA;GUN156..LHD..(SASUV,THSUV);GGN155,GUN155..LHD..(EPTSU,THSUV)..H202006-202203
main69030-02530iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69030-02530iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main69030-02530iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0K160iGGN155,GUN15#,16#,TGN166..EPTSU,THSUV;GUN156,LAN155,TGN156..LHD..(SASUV,THSUV)..(L,S)202006-202203
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K160iGGN155,GUN15#,16#,TGN166..EPTSU,THSUV;GUN156,LAN155,TGN156..LHD..(SASUV,THSUV)..(L,S)202006-202203
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0K160iGGN155,GUN15#,16#,TGN166..EPTSU,THSUV;GUN156,LAN155,TGN156..LHD..(SASUV,THSUV)..(L,S)202006-202203
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
36 parts on this diagram · 1 diagram in section
