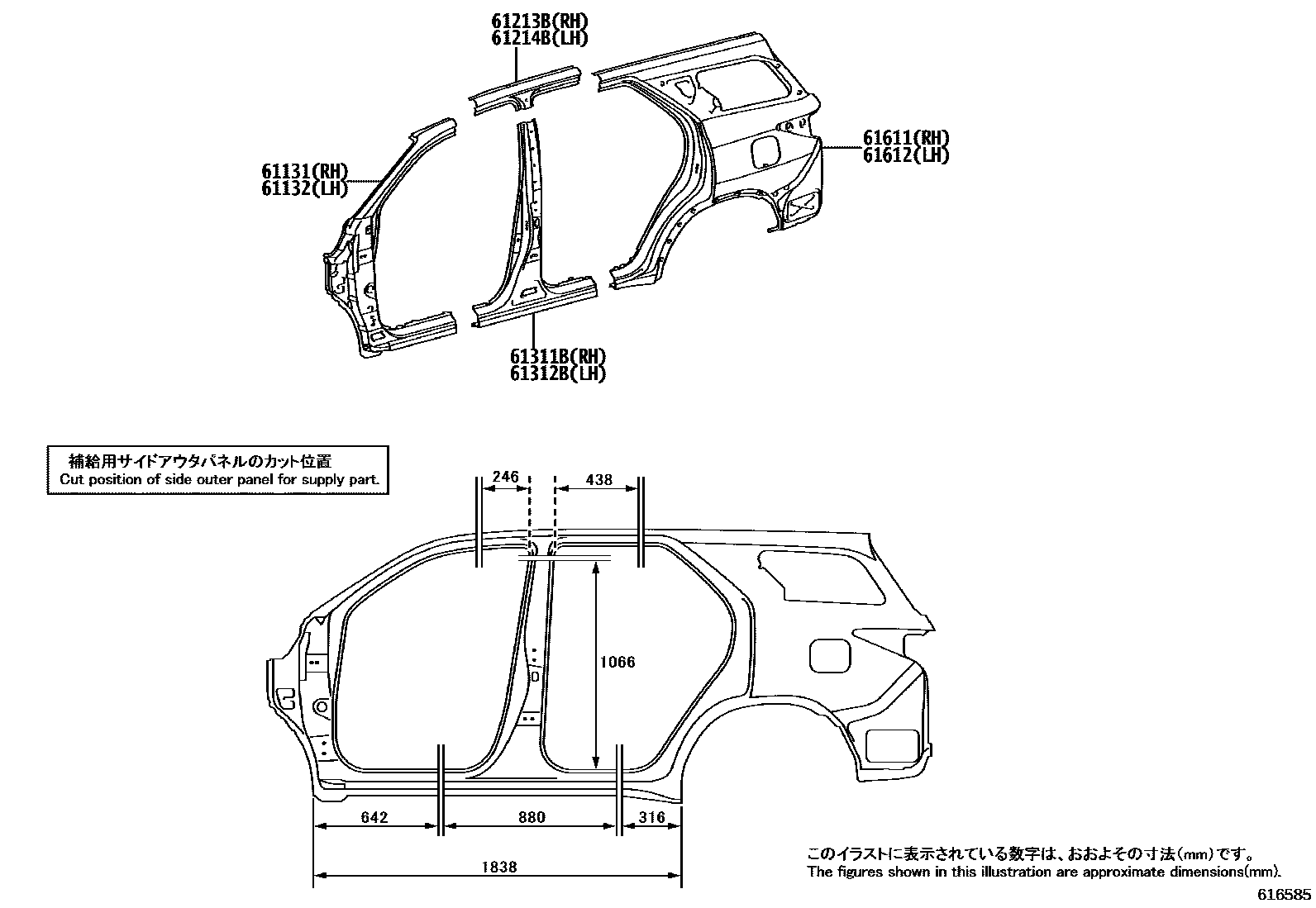

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK040iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK040iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61611PANEL, QUARTER, RH

main61601-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61612PANEL, QUARTER, LH

main61602-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

8 parts on this diagram · 3 diagrams in section
