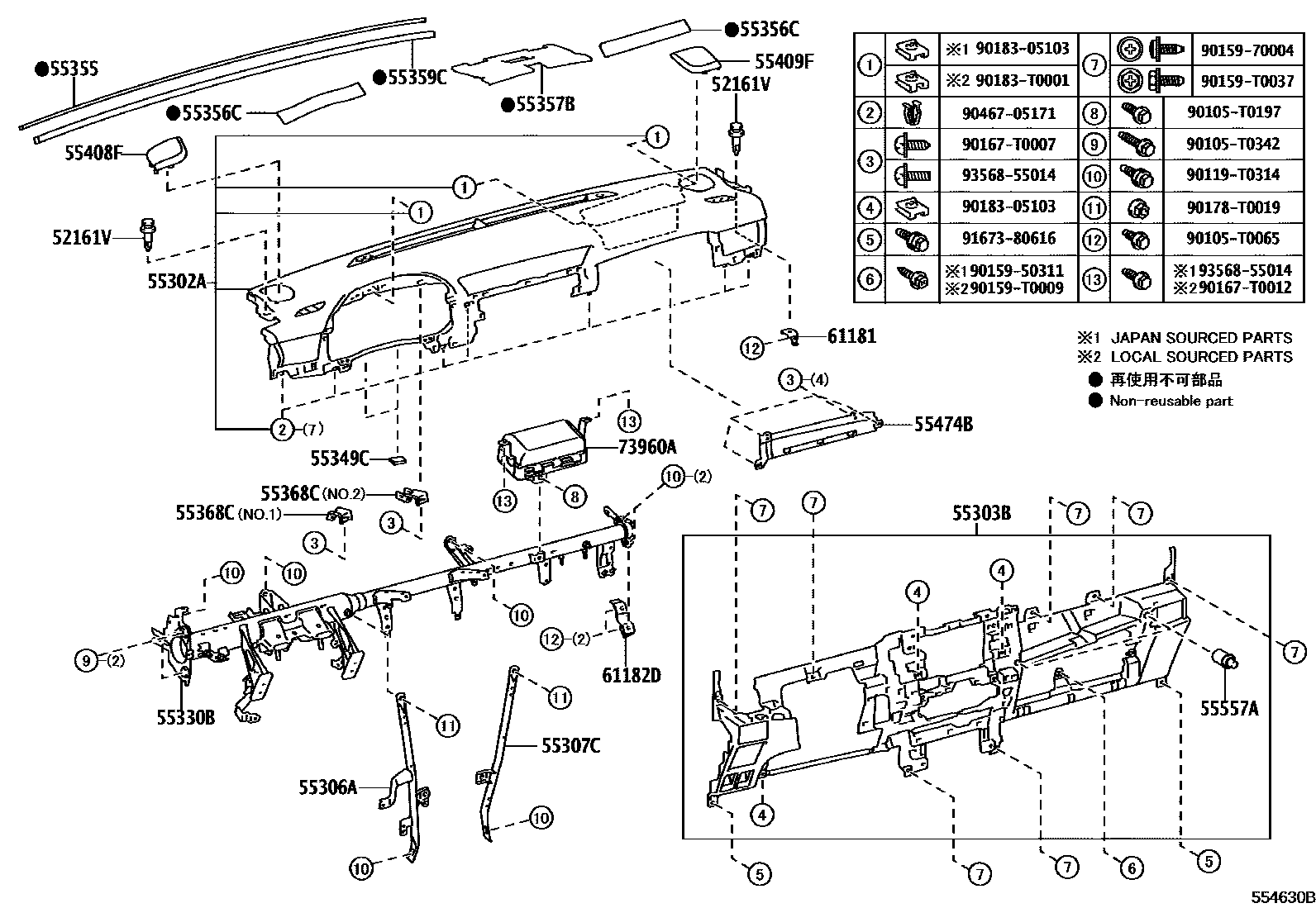

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

(L)

main52161-16010×2iGUN15#,TGN156,166..MA,PKN202006-202109

(J)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK120-C0iGUN156..RHD..SA;GUN155,16#,TGN156,166..RHD..(IDN,MA,SA)202008-202110

BLACK,TRIM2#

main55302-KK140-C0iGUN156..LHD..GEN; TGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM4#

main55302-KK210-C0iGUN156..IND202101-202109

SPEAKER-11SPEAKER & JBL,BLACK,TRIM2#,3#,4#

main55302-KK220-C0supersedes 55302-KK140-C0iGUN156..LHD..GEN202006-202108

SPEAKER-11SPEAKER & JBL,BLACK,TRIM0#,2#,3#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN15#,16#,TGN166..RHD..(IDN,SA)202008-202109

BLACK,TRIM2#

main55303-KK040-C0iGUN156..LHD..GEN; TGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN15#,16#,TGN156,166..RHD202006-202201

main55306-KK050iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGUN15#,16#,TGN156,166..RHD202006-202201

main55307-KK040iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK380iGUN156,16#..RHD..6F..SA202008-202104

main55330-KK390iGUN156..LHD..6F..SA;GUN156,TGN156..AGTSU;GGN155,GUN165,LAN155,TGN16#..LHD..(AGTSU,SASUV)202007-202104

main55330-KK400iGUN15#,16#,TGN156,166..RHD..6FC..(ARL,GEN,IDN,IND,MA,PKN)202006-202201

main55330-KK410iGUN156,TGN156..LHD..6FC..SA202006-202104

main55330-KK440iGUN15#,16#..TH202006-202108

main55330-KK630iGUN156,16#..RHD..6F..SA202104-202109

main55330-KK640iGUN15#,16#..RHD..6FC..SA202104-202109

main55330-KK650iGUN156..LHD..6F..SA;GUN156,TGN156..AGTSU;GGN155,GUN165,LAN155,TGN16#..LHD..(AGTSU,SASUV)202104-202110

main55330-KK660iGUN156,TGN156..LHD..6FC..SA202104-202109

55349CCUSHION, INSTRUMENT PANEL

main55349-KK020×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGUN15#,16#,TGN156,166..RHD202006-202201

main55355-KK030iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-KK030×2iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main55356-KK090×2iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK050iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main55357-KK090iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGUN15#,16#,TGN156,166..RHD202006-202201

main55359-KK040iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

55368CBRACKET, METER MOUNTING

main55368-KK040iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

NO.2:REFER ILLUST.

main55368-KK050iGUN156,TGN156,166..PKN202006-202201

NO.1:REFER ILLUST.

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-KK011-B0iGUN156..IND202101-202109

SPEAKER-11SPEAKER & JBL,SILVER,TRIM2#,3#,4#

main55408-KK021-B0iGUN156,165..VNSUV..H202009-202204

SPEAKER-11SPEAKER & JBL,SILVER,TRIM2#,3#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-KK011-B0iGUN156,166..TH202007-202108

MLM PACKAGE & ACCESSORY,SILVER,TRIM0#,2#,3#,4#

main55409-KK021-B0iGUN156,166..PH202009-202108

MLM PACKAGE,SILVER,TRIM3#

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-KK120-C0iGUN156..RHD..SA;GUN155,16#,TGN156,166..RHD..(IDN,MA,SA)202008-202110

BLACK,TRIM2#

main55474-KK130-C0iGUN156..LHD..GEN; TGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM4#

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030×2iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main61126-KK010iGUN15#,16#,TGN156,166..RHD202006-202201

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN15#,16#,TGN156,166..MA,PKN,TH202006-202201

main73960-0K060iGUN15#,16#..RHD..SA202009-202109

main73960-0K070iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV)202006-202203

main73960-0K080iGUN156,LAN155,TGN156..LHD..SA202009-202109

main73960-0K100iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

main73960-0K110iGUN156,166,TGN166..IND202101-202109

main73960-0K120iGGN155,GUN15#,16#,TGN156,166..LHD..(IDNSU,VNSUV)202007-202204

main73960-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main73960-0K150iGUN156..ARL202006-202108

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

90183T0001

main90183-T0001

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

35 parts on this diagram · 8 diagrams in section
