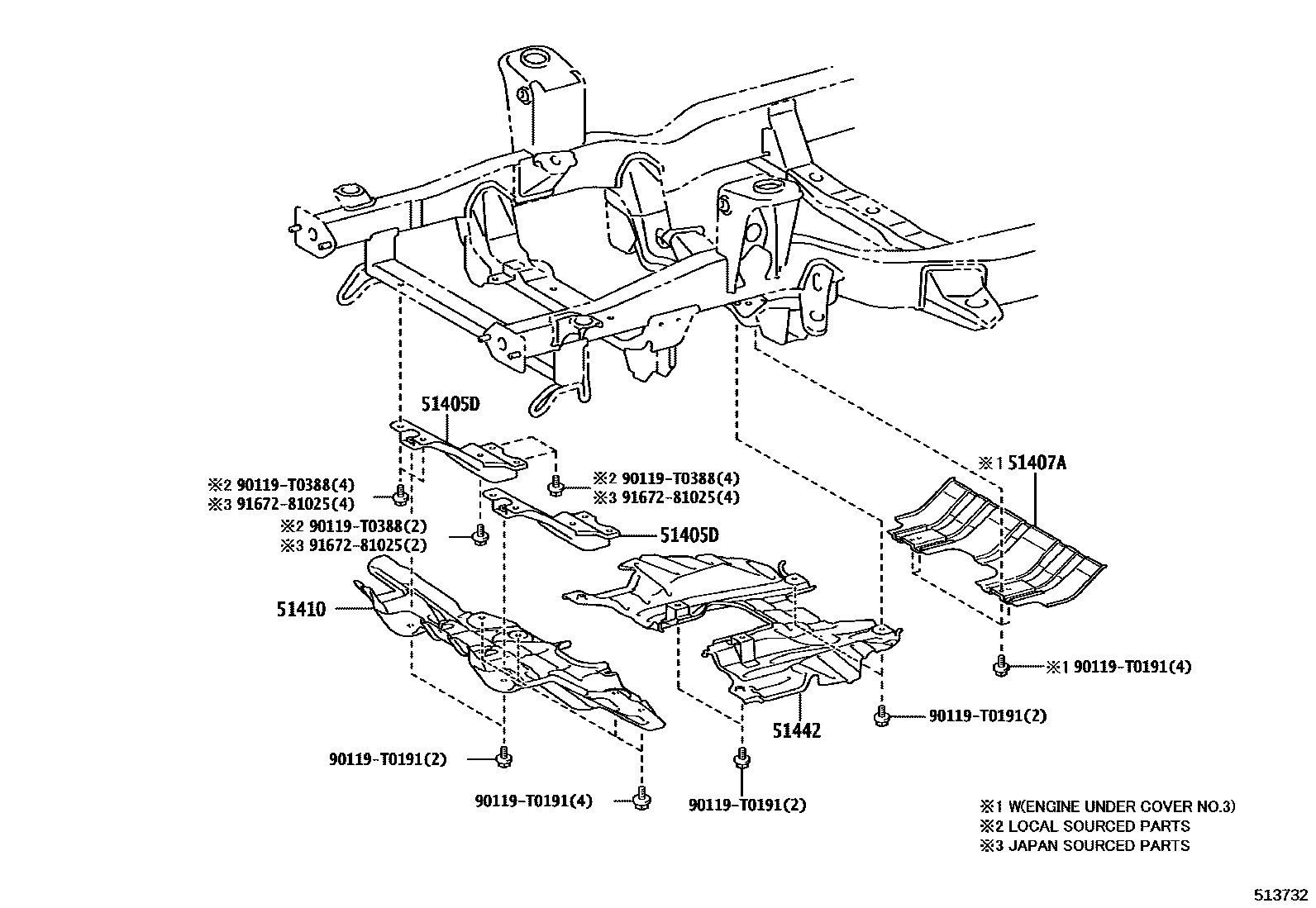

SUSPENSION CROSSMEMBER & UNDER COVER

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK030×2iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-0K020iTGN166..LA;GGN155,TGN156..AGTSU202006-202110

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iGUN156,TGN156,166..PKN202006-202201

main51410-KK020iGUN155,165..GCC,SA;GUN155,165..LHD..GEN;GGN155,GUN156,166,LAN155,TGN156,166..ARL,EPT,GCC,GEN,SA202006-202203

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iGUN165..PH,VN;GUN155,165..RHD..(IDNSU,MASUV,THSUV);GUN156,166,TGN156,166..IDN,IND,MA,PH,TH,VN202006-202204

main51420-KK020iGUN155,165..GCC,SA;GUN155,165..LHD..GEN;GGN155,GUN156,166,LAN155,TGN156,166..ARL,EPT,GCC,GEN,SA202006-202203

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

7 parts on this diagram · 1 diagram in section
