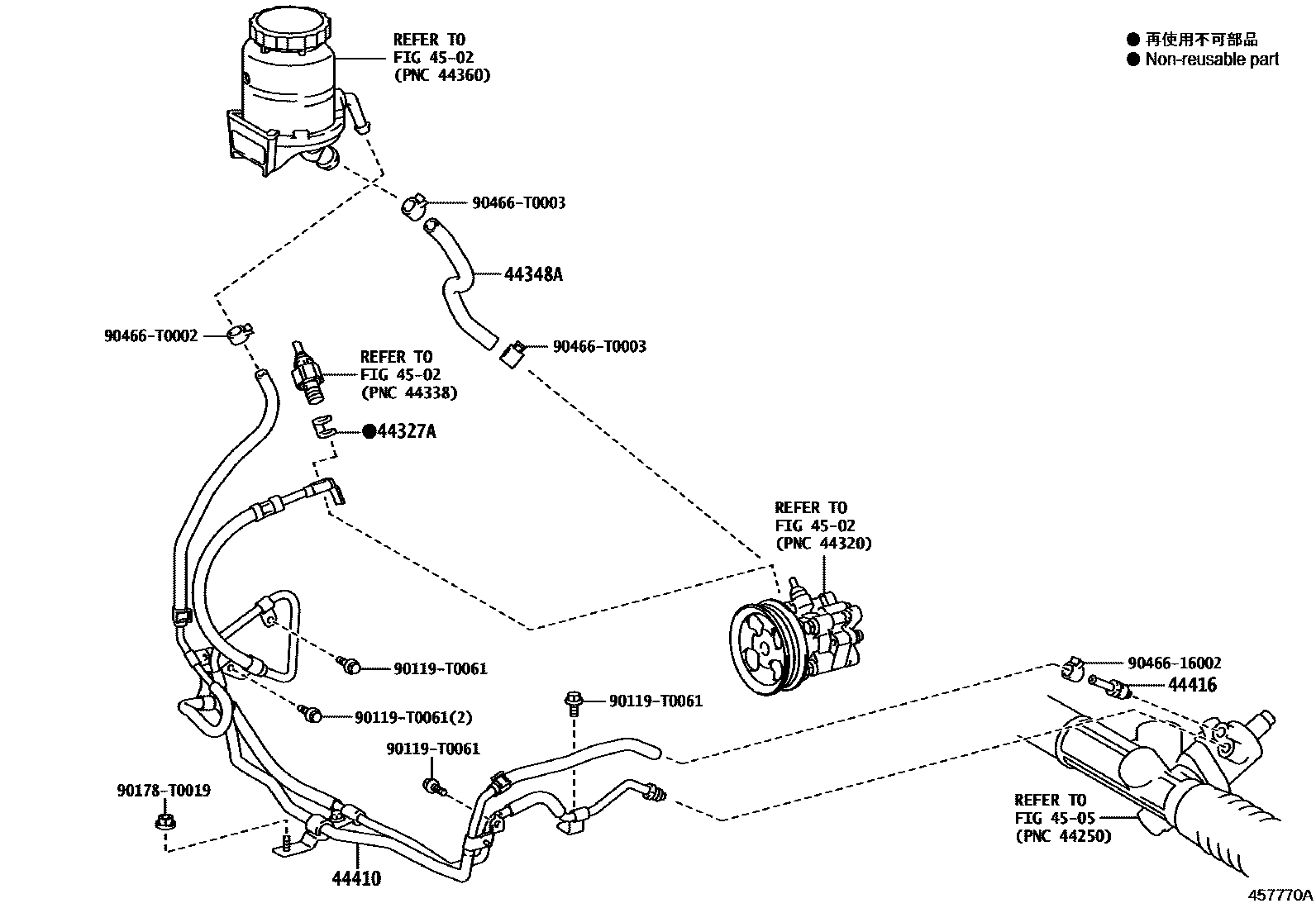

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN156,TGN156,166..PKN202006-202204

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K070iLAN155202009-202109

main44348-0K080iGGN155..LA202006-202203

main44348-0K110iGUN156..PKN202006-202204

44410TUBE ASSY, PRESSURE FEED

main44410-0K240iGGN155..EPT,GCC202006-202203

main44410-0K250iGGN155..GEN,LA202007-202110

main44410-0K280iTGN156,166..RHD202007-202201

main44410-0K290iGUN15#,16#..RHD202006-202201

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

90178T0019

main90178-T0019

9046616002

main90466-16002

90466T0002

main90466-T0002

90466T0003

main90466-T0003

11 parts on this diagram · 6 diagrams in section
