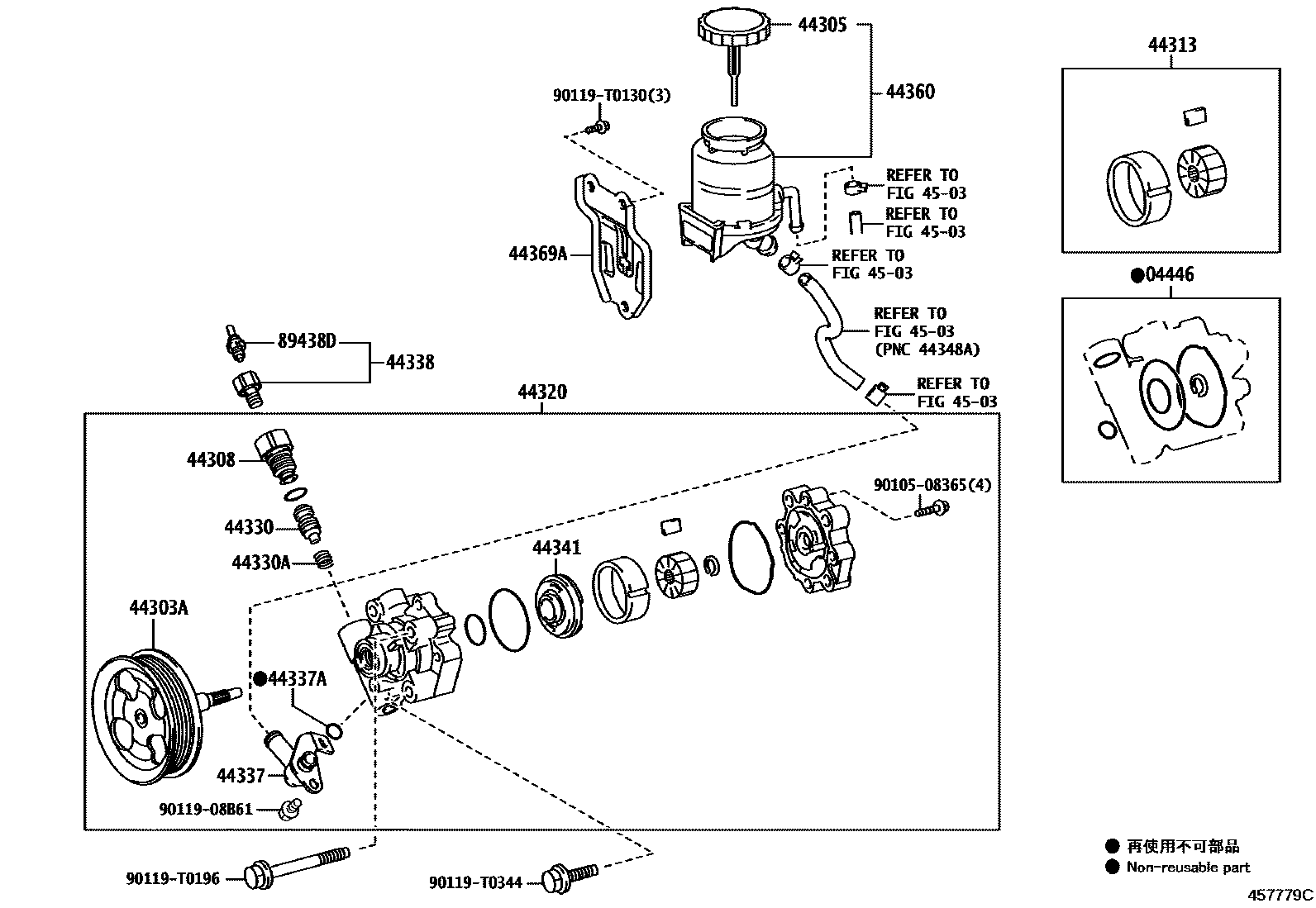

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06110iGUN156,165,TGN156,16#..AGTSU202006-202110

main04446-06130iGGN155..LA202006-202110

main04446-0B030iLAN155202009-202109

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iGUN156,165,TGN156,16#..AGTSU202006-202110

main44303-0K030iGGN155..LA202006-202110

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K030iGUN156..PKN202006-202201

main44305-22061iTGN156,16#..AGTSU202006-202110

main44305-32040iGGN155..LA202006-202110

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K040iTGN156,166..PKN202006-202201

main44308-0K060iLAN155202009-202109

main44308-0K100iGGN155..LA202006-202110

44313ROTOR, VANE PUMP

main44313-09010iGUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main44313-09030iTGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main44313-09040iLAN155202009-202109

main44313-09060iGGN155..EPT,GCC,GEN202006-202203

44320PUMP ASSY, VANE

main44310-0K080iTGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main44310-0K100iGGN155..LA202006-202110

main44310-0K142iGUN156,165..AGTSU202006-202110

main44320-0K020iLAN155202009-202109

44330VALVE ASSY, FLOW CONTROL

main44330-04010iLAN155202009-202109

MARK A

main44330-04020iLAN155202009-202109

MARK B

main44330-04030iLAN155202009-202109

MARK C

main44330-04040iLAN155202009-202109

MARK D

main44330-04050iLAN155202009-202109

MARK E

main44330-04060iLAN155202009-202109

MARK F

main44330-0K130iTGN156,16#..AGTSU202006-202110

MARK A

main44330-0K140iTGN156,166..PKN202006-202201

MARK B

main44330-0K150iTGN156,166..PKN202006-202201

MARK C

main44330-0K160iTGN156,16#..AGTSU202006-202110

MARK D

main44330-0K170iTGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

MARK E

main44330-0K180iTGN156,166..PKN202006-202201

MARK F

main44330-0K330iGUN156,165..AGTSU202006-202110

MARK C

main44330-0K340iGUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

MARK D

main44330-0K350iGUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

MARK E

main44330-0K360iGUN156,165..AGTSU202006-202110

MARK F

main44330-25010iGGN155..LA202006-202110

MARK A

main44330-25020iGGN155..EPT,GCC,GEN202006-202203

MARK B

main44330-25030iGGN155..EPT,GCC,GEN202006-202203

MARK C

main44330-25040iGGN155..LA202006-202110

MARK D

main44330-25050iGGN155..EPT,GCC,GEN202006-202203

MARK E

main44330-25060iGGN155..LA202006-202110

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iLAN155202009-202109

main90501-14173iGGN155..LA202006-202110

main90501-T0001iGUN156,TGN156,166..PKN202006-202201

44337UNION, POWER STEERING SUCTION PORT

main44337-0K020iLAN155202009-202109

main44337-0K040iGUN156,165..AGTSU202006-202110

main44337-0K050iGGN155..LA202006-202110

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iLAN155202009-202109

main90080-30093iGUN156..PKN202006-202201

main90301-15025iGGN155..EPT,GCC,GEN202006-202203

44338UNION, PRESSURE PORT

main44338-71010iGGN155..EPT,GCC,GEN202006-202203

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iGUN156,165,TGN156,16#..AGTSU202006-202110

main44341-60040iGGN155..EPT,GCC,GEN202006-202203

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K050iGUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main44360-0K060iLAN155202009-202109

main44360-0K070iGGN155..EPT,GCC,GEN202006-202203

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0K010iGUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main44390-0K020iLAN155202009-202109

main44390-0K030iGGN155..EPT,GCC,GEN202006-202203

4503

89438DSWITCH, POWER STEERING OIL PRESSURE

main89438-71010iGGN155,TGN156,16#..AGTSU202006-202110

9010508365

main90105-08365

9011908B61

main90119-08B61

90119T0130

main90119-T0130

90119T0196

main90119-T0196

90119T0344

main90119-T0344

21 parts on this diagram · 4 diagrams in section
