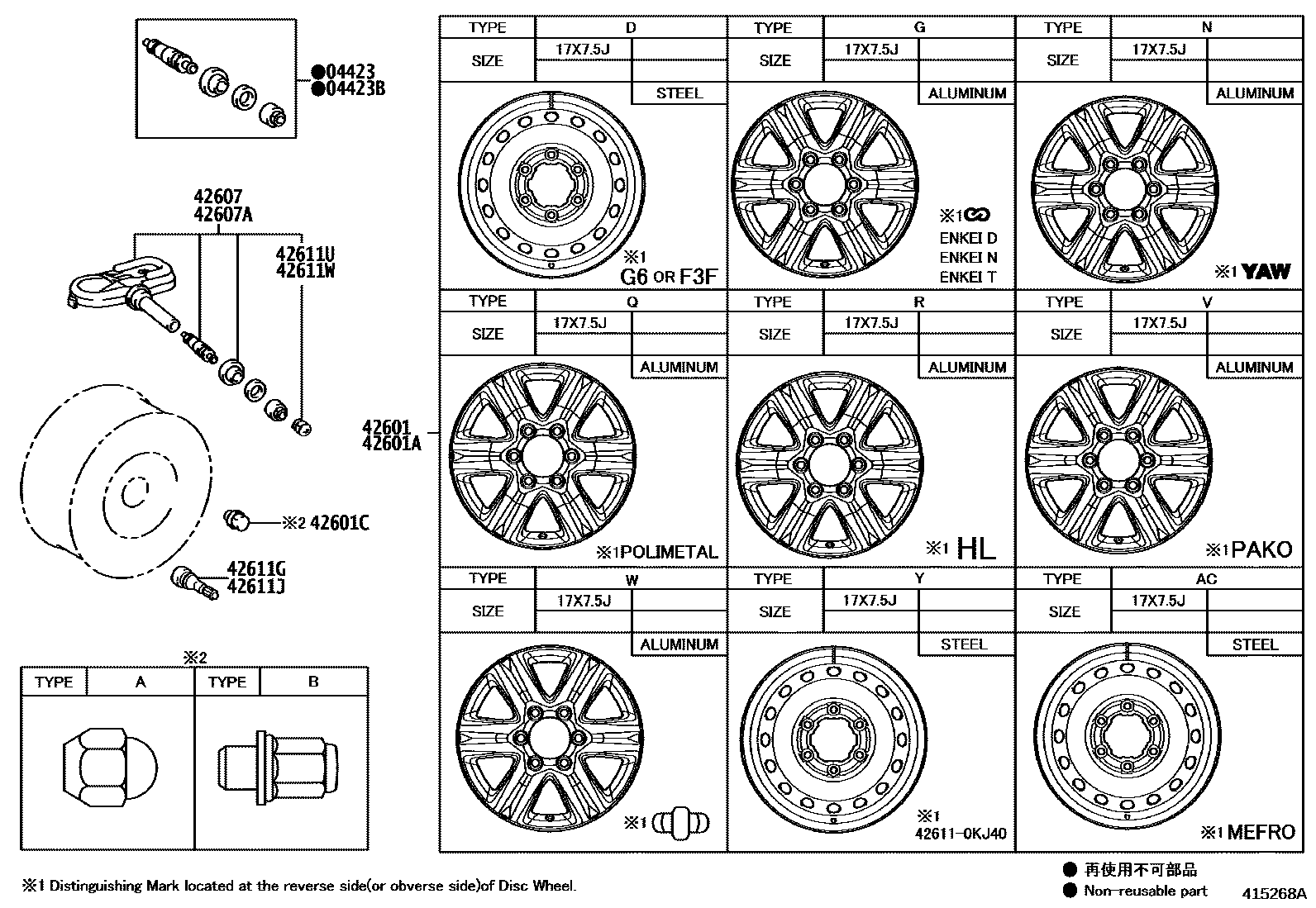

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPED:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPED:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE Q:REFER ILLUST.
main42611-0KK82×4iGUN156..6FC..LA;GUN156..6FC..S..BZAGT;GUN156..AGTSU..6F..(L,S);GGN155,GUN165,TGN156,16#..AGTSU202102-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE Q:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE W:REFER ILLUST.
17X7.5J, #,TYPE N:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPED:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE V:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE G:REFER ILLUST.
17X7.5J, #,T/P AC:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,T/P AU:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,T/P AK:REFER ILLUST.
main4261A-0K030×4iGGN155,GUN165..IDNSU..H..(GCC,IDN);GUN15#,166,TGN156,166..(IDNSU,VNSUV)..H202007-202108
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AL:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,T/P AT:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(FULL CAP),TYPE Y:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE G:REFER ILLUST.
sub42611-0KL41
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AS:REFER ILLUST.
sub42611-YP171
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE,T/P AS:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AZ:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE D:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE W:REFER ILLUST.
17X7.5J, #,TYPE N:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE V:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
17X7.5J, #,T/P AC:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,T/P AU:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,T/P AK:REFER ILLUST.
main4261A-0K030iGGN155,GUN165..IDNSU..H..(GCC,IDN);GUN15#,166,TGN156,166..(IDNSU,VNSUV)..H202007-202108
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AL:REFER ILLUST.
18X7.5J,#,T/P AJ:REFER ILLUST.
18X7.5J,#,T/P AT:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(FULL CAP),TYPE Y:REFER ILLUST.
main42611-0KK81supersedes 4261A-0K070iGUN156..6F..LA;GGN155,TGN168..AGTSU;GUN156,TGN156,166..(H,S)..LA202011-202101
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE Q:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE Q:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE G:REFER ILLUST.
sub42611-0KL41
main42611-0KS01supersedes 4261A-0K070iGUN156..6F..LA;GGN155,TGN168..AGTSU;GUN156,TGN156,166..(H,S)..LA202011-202110
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AS:REFER ILLUST.
sub42611-YP171
18X7.5J,#,MLM PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE,T/P AS:REFER ILLUST.
18X7.5J,#,MLM PACKAGE,T/P AS:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AZ:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
main90942-01109×24iGUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..(H,S);GGN155,GUN165,TGN156,16#..AGTSU202006-202110
(J),T/P B:REF.ILLUST
main90942-T1005×24iGUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..(H,S);GGN155,GUN165,TGN156,16#..AGTSU202006-202110
(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009×4iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,VNSUV)..(EPT,GEN,IDN,PH,VN)202007-202204
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 3 diagrams in section
