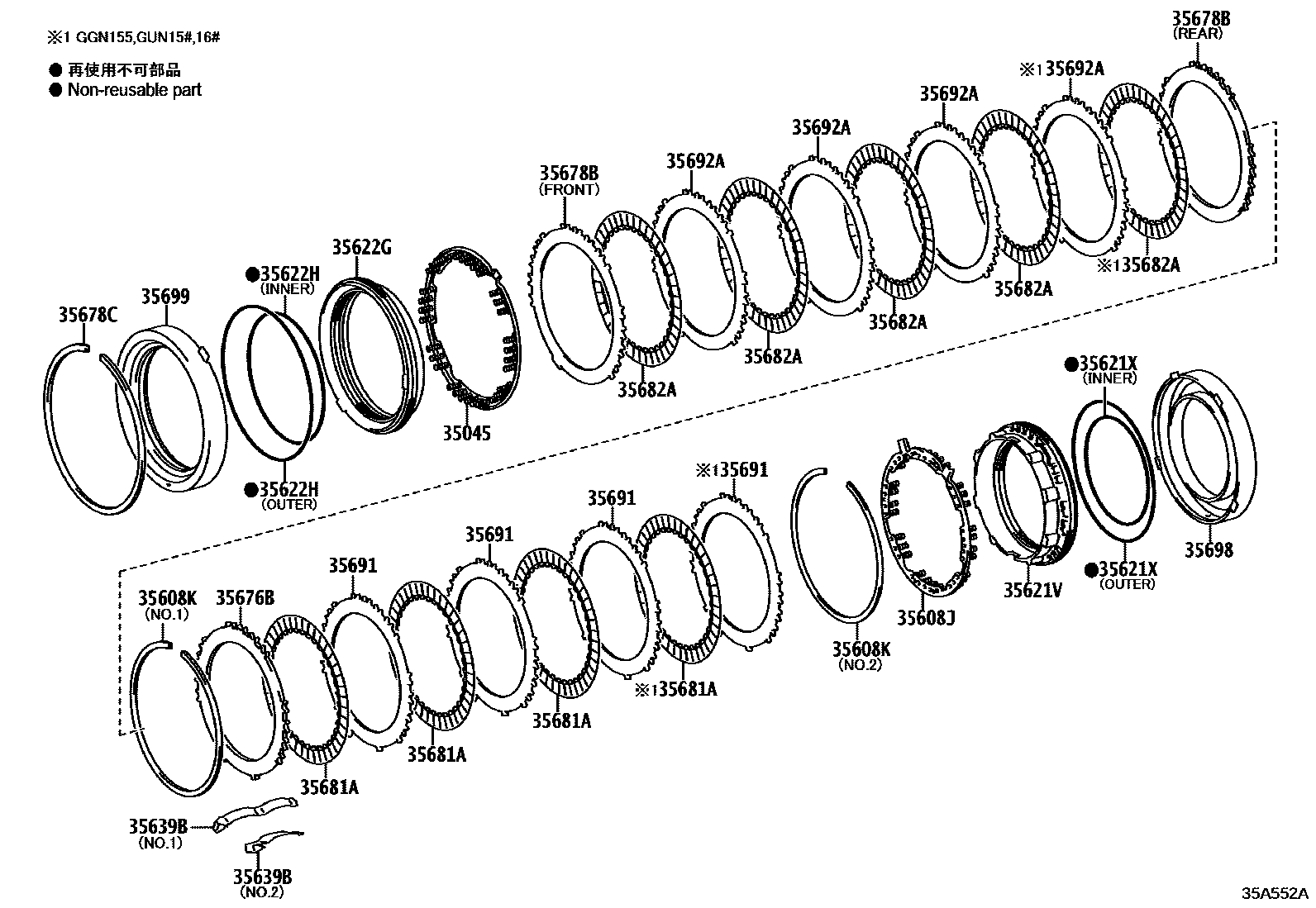

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
main35045-0K010iGGN155,GUN155,166,TGN156,166..MASUV,THSUV,VNSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202006-202204
(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
main35608-0K010iGGN155,GUN155,166,TGN156,166..MASUV,THSUV,VNSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202006-202204
(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
NO.1:REFER ILLUST.
(J),NO.2:SEE ILLUST; TOYOTA STOP & START SYSTEM-WITHOUT,(J),NO.2:SEE ILLUST
(L),NO.2:SEE ILLUST; TOYOTA STOP & START SYSTEM-WITH,NO.2:REFER ILLUST.; TOYOTA STOP & START SYSTEM-WITHOUT,(L),NO.2:SEE ILLUST
(L),NO.1:SEE ILLUST; TOYOTA STOP & START SYSTEM-WITH,NO.1:REFER ILLUST.; TOYOTA STOP & START SYSTEM-WITHOUT,(L),NO.1:SEE ILLUST
35621VPISTON, BRAKE, NO.1
main35621-0K010iGGN155,GUN155,166..MASUV,THSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202006-202204
(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35621XRING, O (FOR BRAKE PISTON NO.1)
(J),OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,(J),OUTER
(J),INNER; TOYOTA STOP & START SYSTEM-WITHOUT,(J),INNER
INNER
(L),OUTER; TOYOTA STOP & START SYSTEM-WITH,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,(L),OUTER
35622GPISTON, BRAKE, NO.2
(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)
(L)
(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35622HRING, O (FOR BRAKE PISTON NO.2)
INNER
(J),OUTER
(L),OUTER; TOYOTA STOP & START SYSTEM-WITH,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,(L),OUTER
INNER
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35676BFLANGE, BRAKE, NO.1
T=4.9
T=5.0
main35676-71030iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=5.1
T=5.2
T=5.3
main35676-71060iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=5.4
main35676-71070iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=5.5
T=5.6
T=5.7
main35676-71100iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=5.8
35678BFLANGE, BRAKE, NO.2
main35678-71010iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=3.8,REAR
T=2.0,FRONT
T=2.1,FRONT
T=2.2,FRONT
main35678-71050iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=2.3,FRONT
T=2.4,FRONT
main35678-71070iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
T=2.5,FRONT
T=2.6,FRONT
T=2.7,FRONT
T=2.8,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
main35682-0K010×5iGGN155,GUN155,166..MASUV,THSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN); TGN156,166..MASUV,THSUV,VNSUV202006-202204
(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35691PLATE, BRAKE, NO.1
(L)
(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)
35692APLATE, BRAKE, NO.2
(L)
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
main35699-71010iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204
17 parts on this diagram · 1 diagram in section
