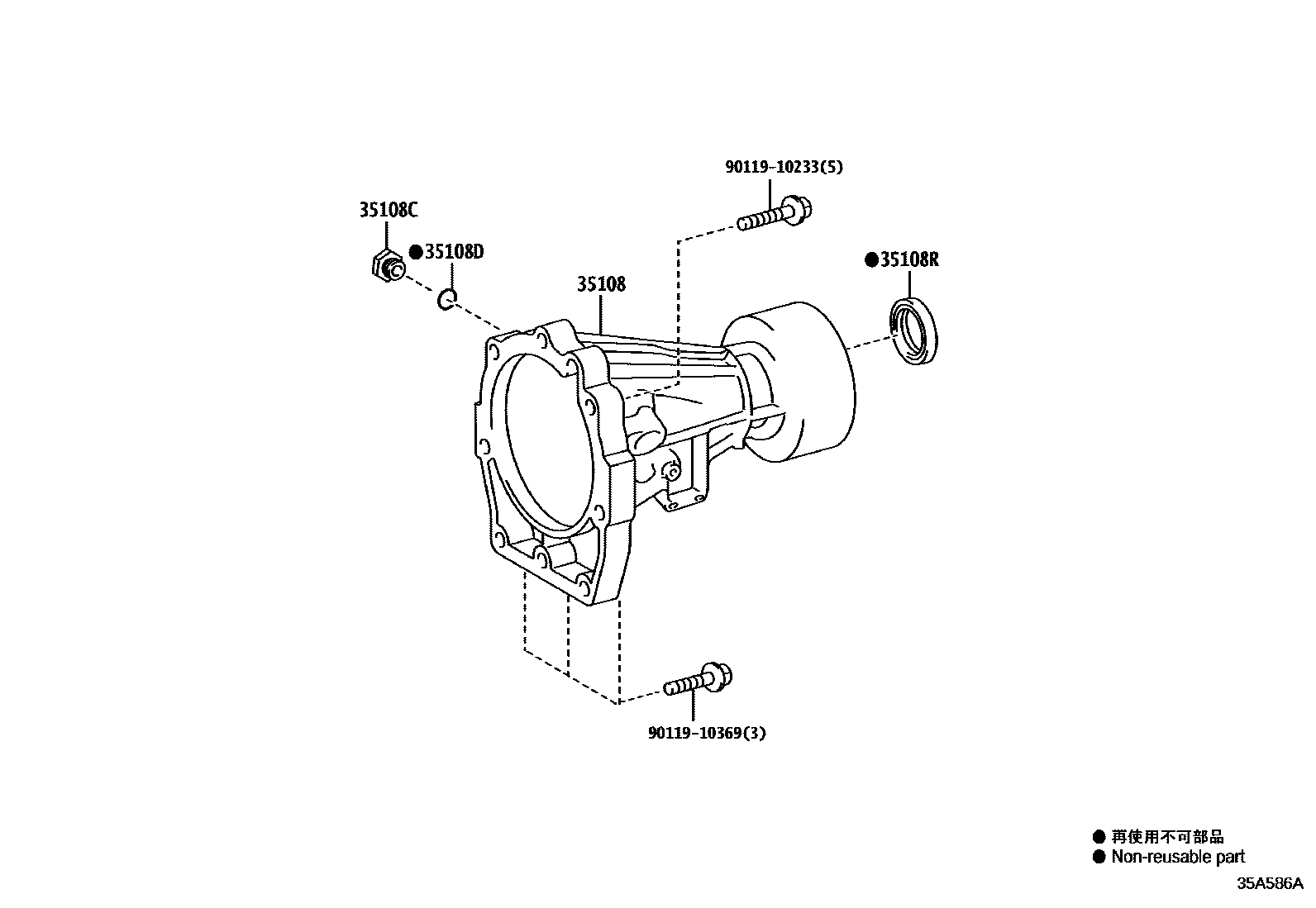

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-0K030iTGN166..THSUV,VNSUV;GUN165..(THSUV,VNSUV)..6FC..(TH,VN)202006-202204

main35108-0K040iGUN166..PH202006-202103

main35108-71030iGUN165..TH; GUN165..THSUV..GCC202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35108-71040iGUN166..PH202103-202108

(J)

35108CPLUG (FOR AUTOMATIC EXTENSION HOUSING)

main90341-18059iTGN166..PKN202006-202201

35108DRING, O (FOR AUTOMATIC EXTENSION HOUSING)

main90301-15004iGUN165..TH; GUN165..THSUV..GCC202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0068iGUN16#,TGN166..IDNSU..6FC202006-202103

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40045iGUN165,TGN16#..AGTSU..6FC202006-202110

main90311-45037iGUN166..6FC202006-202109

9011910233

main90119-10233

9011910369

main90119-10369

6 parts on this diagram · 1 diagram in section
