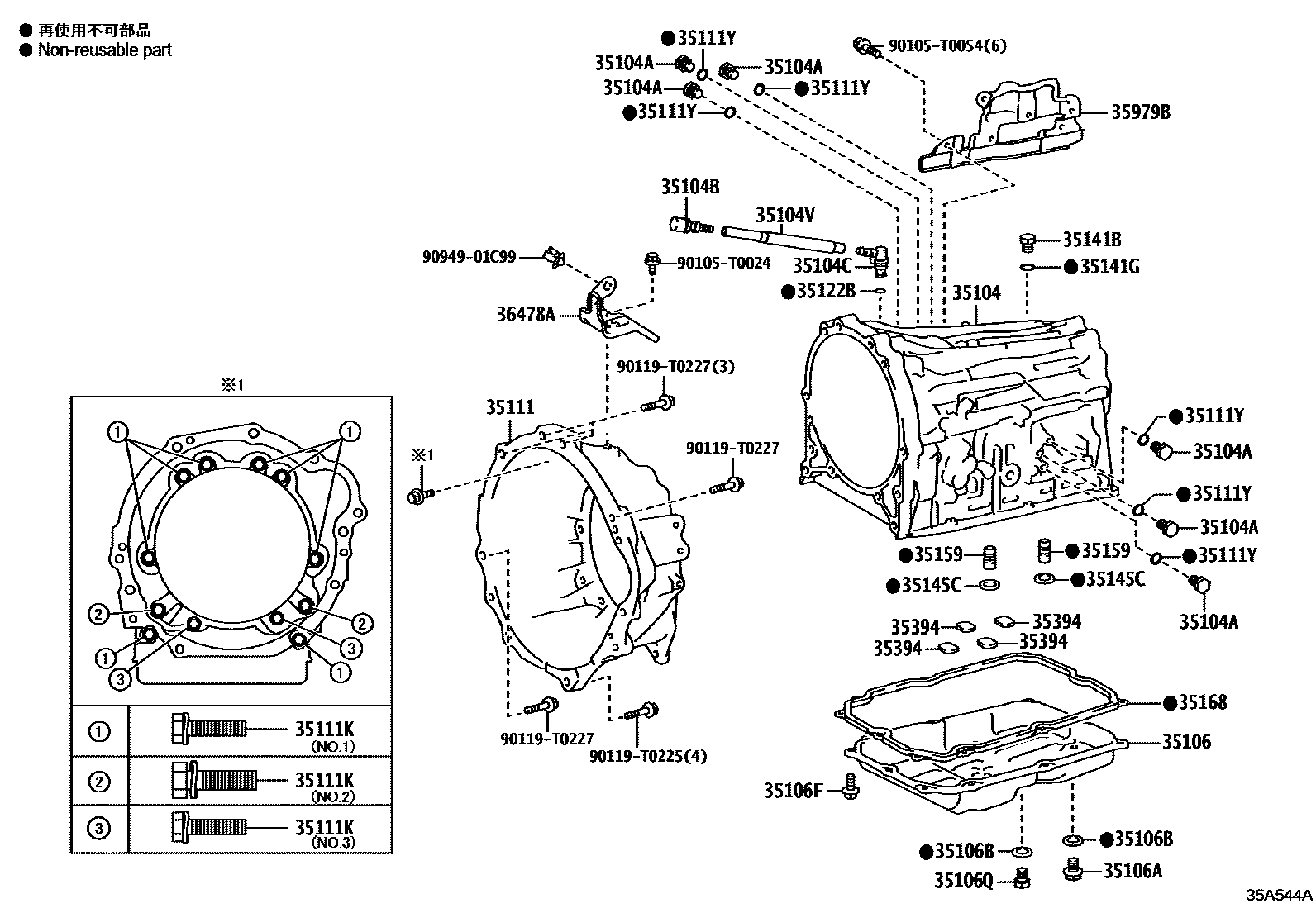

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AC60F 0002 1AC60E,AC60F 0003 1AC60E,AC60F

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0K010iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202103-202108

(L)

main35104-71020iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×6iGUN156,TGN156,166..PKN202006-202201

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(J)

main90930-T3004iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(L)

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(J)

main90930-T3006iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(L)

35104VHOSE (FOR BREATHER PLUG)

main90447-11078iTGN156,16#..AGTSU..6FC202006-202110

main90447-11079iGGN155..EPT,GCC,GEN202006-202203

main90447-11080iGUN156..PKN202006-202201

main90447-11081iGUN165..LA202006-202110

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0K010iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN); GUN156..THSUV..GCC202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35106-71050iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202110

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202006-202103

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×10iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202110

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202110

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0K010iGUN155,166..MASUV,THSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202006-202204

main35111-0K020iTGN156,166..MASUV,THSUV,VNSUV202006-202204

main35111-0K030iGGN155..THSUV202006-202108

main35111-71030iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35111-71040iTGN156,166..IDNSU..6FC202103-202108

(J)

main35111-71050iGGN155..EPT202011-202203

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-08C62iGUN156..(INDSU,THSUV)..6FC;GUN165..(AGTSU,SASUV,THSUV)..6FC;TGN156..(IDNSU,MASUV,THSUV)..6FC;GGN155,GUN155,166..(IDNSU,INDSU,MASUV,SASUV,THSUV)..6FC202006-202110

*8-1.25PX30-23.5

main90119-10232×8iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-10947×2iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

*10-1.50PX35-29.3,NO.3:REFER ILLUST.

main90119-12378×2iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

*12-1.75PX38-30,NO.2:REFER ILLUST.

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×6iGUN156,TGN156,166..PKN202009-202201

main90301-T0067×6iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202103-202108

(L)

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-08015iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0070iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202006-202103

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202110

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0069iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN); GUN156..THSUV..GCC202006-202108

(L); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT,(L)

35145CGASKET, TRANSAXLE CASE

main35145-60020×2iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202110

35159GASKET, BRAKE DRUM

main35159-0K010×2iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202006-202103

main35159-71010×2iGUN156,165..TH; GUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(J); TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-0K010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(L)

main35168-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202009-202110

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202110

35979BINSULATOR, TRANSMISSION, RH

main35979-0K010iGUN156,TGN156,166..PKN202006-202201

main35979-0K020iGUN156,165..AGTSU..6FC202011-202110

36478ABRACKET, TRANSMISSION BREATHER

main36478-0K030iGGN155..EPT,GCC,GEN202006-202203

main36478-0K040iTGN156,16#..AGTSU..6FC202006-202110

main36478-0K060iGUN15#..(IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

90105T0024

main90105-T0024

90105T0054

main90105-T0054

90119T0225

main90119-T0225

90119T0227

main90119-T0227

9094901C99

main90949-01C99
