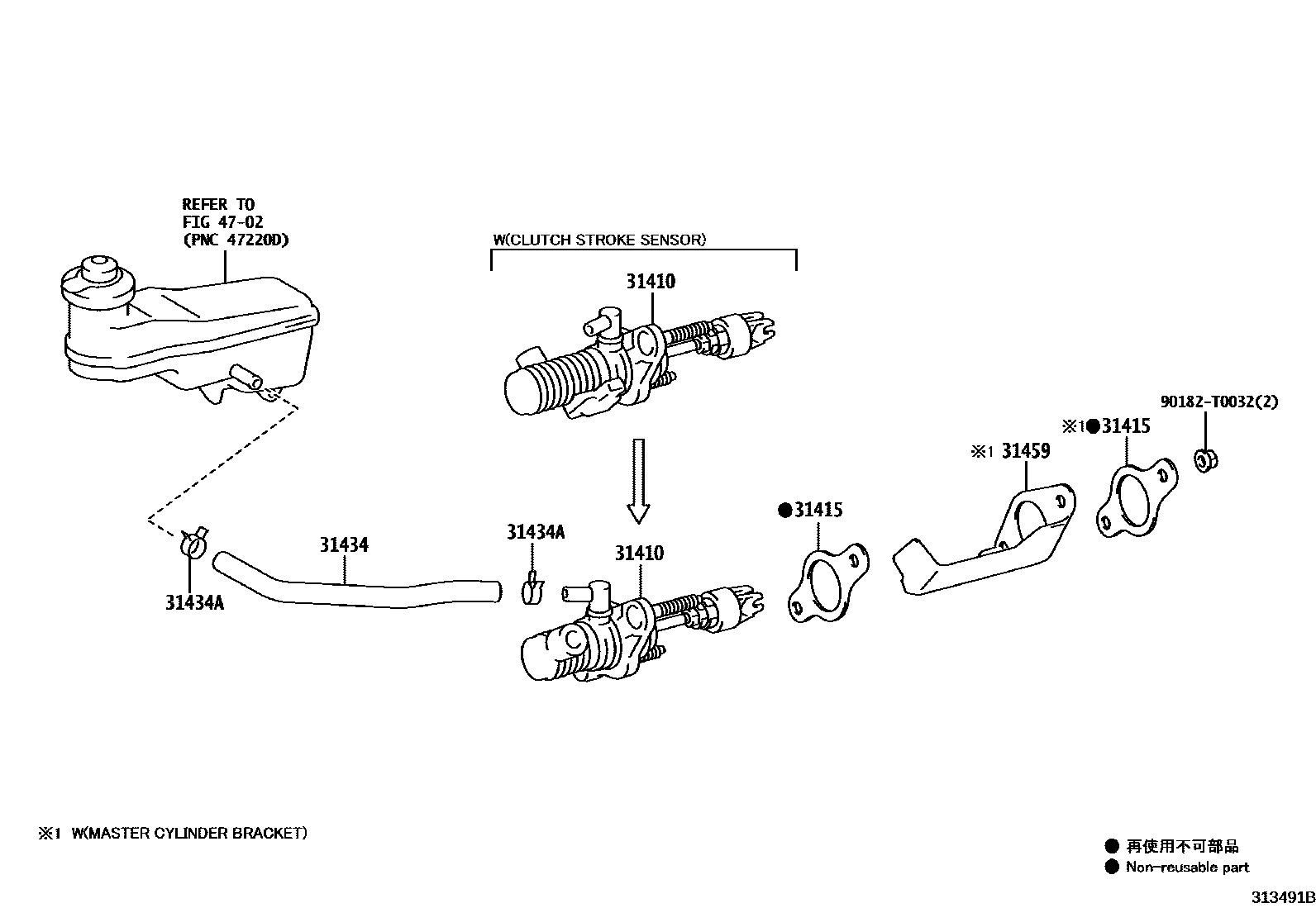

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K014iLAN155,TGN156,166..5F202007-202110

main31420-0K061iGUN156..6F..BZAGT;GUN156,166..RHD..6F202009-202110

main31420-0K071iGUN156..6F..LA202007-202204

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN156,16#..RHD..6F202007-202204

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN156,166..RHD..6F..SA202009-202109

main31434-0K050iGUN156..6F..BZAGT202011-202110

main31434-0K061iGUN165..6F..IDN202008-202108

main31434-0K071iGUN155,165,TGN156,166..IDNSU..MTM..L202007-202108

main31434-0K081iGUN156,166..6F..IND202101-202109

main31434-0K091iGUN165..6F..SA202009-202109

main31434-0K101iTGN166..5F..IND202101-202109

main31434-0K110iGUN156,TGN166..MTM..LA202011-202110

main31434-0K111iGUN156,165,LAN155..LHD..(SASUV,VNSUV)..MTM202009-202204

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015iGUN15#,16#,LAN155,TGN156,166..(IDNSU,INDSU,SASUV,VNSUV)..MTM202007-202204

main90466-T0052iGUN156,TGN166..AGTSU..MTM202011-202110

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-0K010iGUN156,166..6F..IND202101-202109

main31459-71010iGUN156,16#..RHD..6F..(IDN,SA)202008-202109

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182T0032

main90182-T0032

7 parts on this diagram · 2 diagrams in section
